Rittal SV 9677.450 morsetto di collegamento per barre conduttrici, 690 V AC, 63 A, 2,5-16 mm², 3 pezzi

Rated for 690 V AC and 63 A, this busbar connection terminal handles round conductors from 2.5 to 16 mm² with a secure screw connection.

Overview

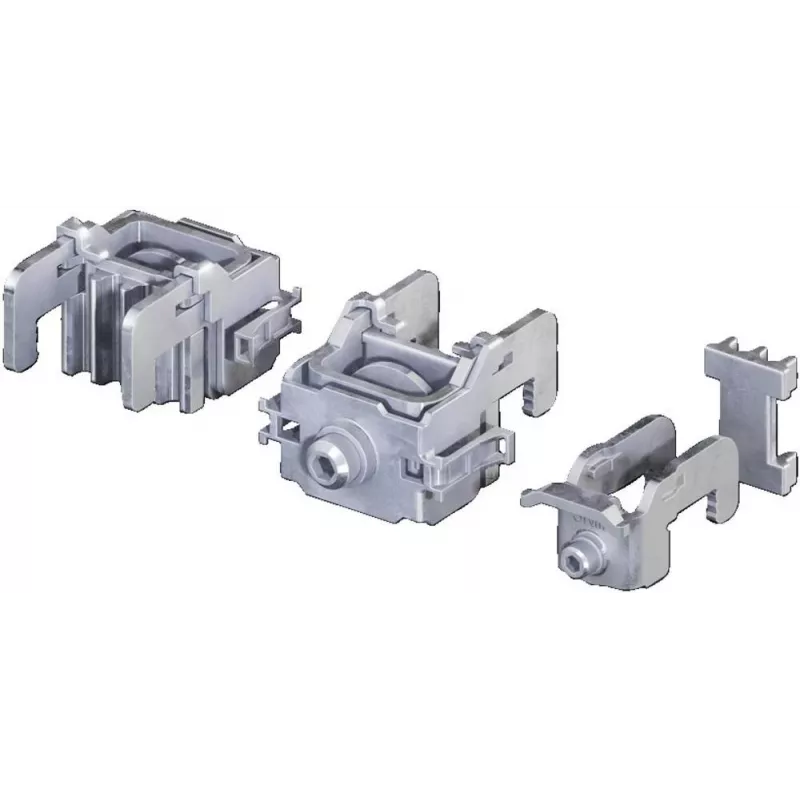

The Rittal SV 9677.450 is a busbar connection terminal designed for the RiLine60 busbar system. It provides a reliable screw connection for round conductors and clips directly onto the busbar for easy installation. The terminal is made from polyamide (PA 6.6) housing with copper contacts, ensuring durability and conductivity. It is supplied in a pack of 3 pieces.

What stands out

• Compatible with RiLine60 busbar system
• Supports conductor cross-sections from 2.5 to 16 mm²
• High current rating of 63 A at 690 V AC
• Tool-free clip-on mounting
• Robust polyamide housing with copper contacts

Technical details

• Product type: Busbar connection terminal
• Busbar system: RiLine60
• Conductor type: Round conductors
• Connection method: Screw connection
• Mounting type: Clip-on to busbar
• Housing material: Polyamide (PA 6.6)
• Contact material: Copper
• Colour: Grey
• Number of poles: 1
• Protection category: IP20
• Standards: VDE, UL, CSA, EAC
• Pack quantity: 3 pieces
• Dimensions per unit (W x H x D): 18 x 45 x 45 mm

Our verdict

A compact and reliable busbar connection terminal for RiLine60 systems, offering a secure screw connection and easy clip-on mounting.
