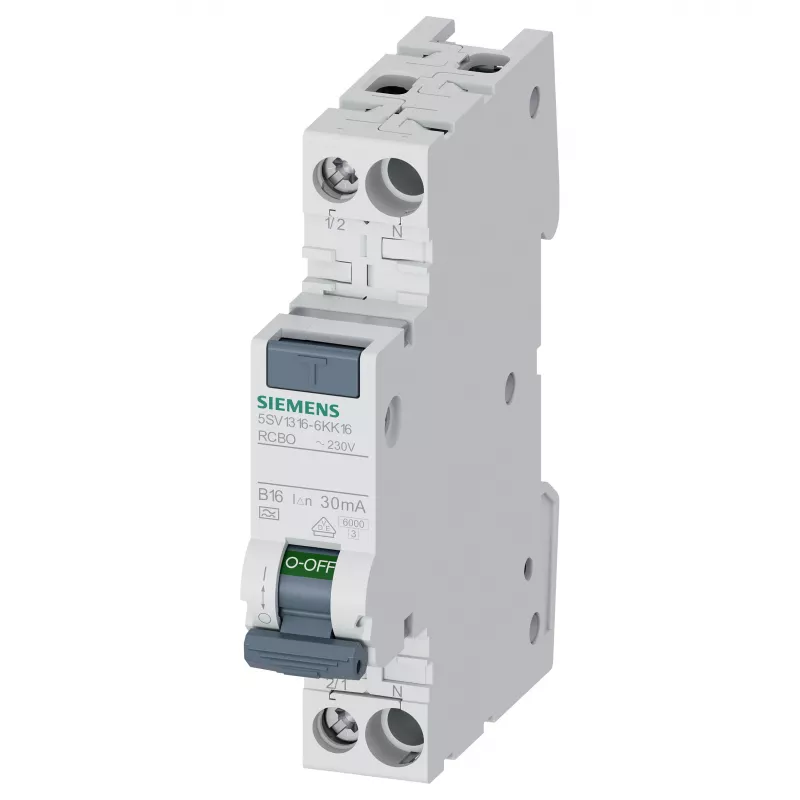

Siemens 5SV13166KK16 RCBO bipolare 16 A 30 mA, curva B, tipo A, 6 kA

The Siemens 5SV13166KK16 is a compact RCBO (FI/LS switch) in the SENTRON 5SV1 series, providing combined protection against overload, short circuit and residual currents in just 1 TE (module width). It is a 2-pole device with a rated current of 16 A and a rated residual current of 30 mA, featuring type A residual current protection and B tripping characteristic. The unit is VDE-tested and certified according to DIN EN 61009-1 and DIN EN 61009-2-1.

Key features

• Combined protection against overload, short circuit and residual currents
• Compact design: 1 TE (1P+N)
• Type A residual current protection
• B tripping characteristic
• VDE-tested and certified to DIN EN 61009-1, DIN EN 61009-2-1
• Switching neutral conductor
• Anti-nuisance tripping version
• Interlocking feature
• Data matrix code for quick access to technical data via Siemens Industry Online Support App

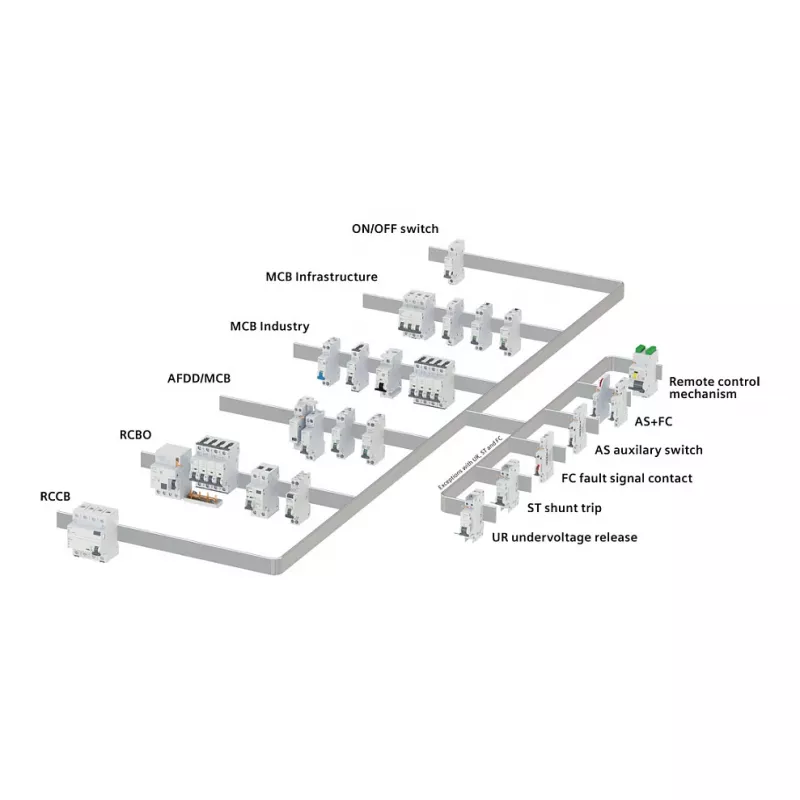

• Can be extended with accessories from the SENTRON system

Specifications

• Brand: Siemens
• MPN: 5SV13166KK16
• Number of poles: 2
• Number of protected poles: 1
• Number of module units (TE): 1
• Rated current: 16 A
• Rated voltage: 230 V
• Voltage type: AC
• Rated insulation voltage (Ui): 253 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated residual current: 30 mA

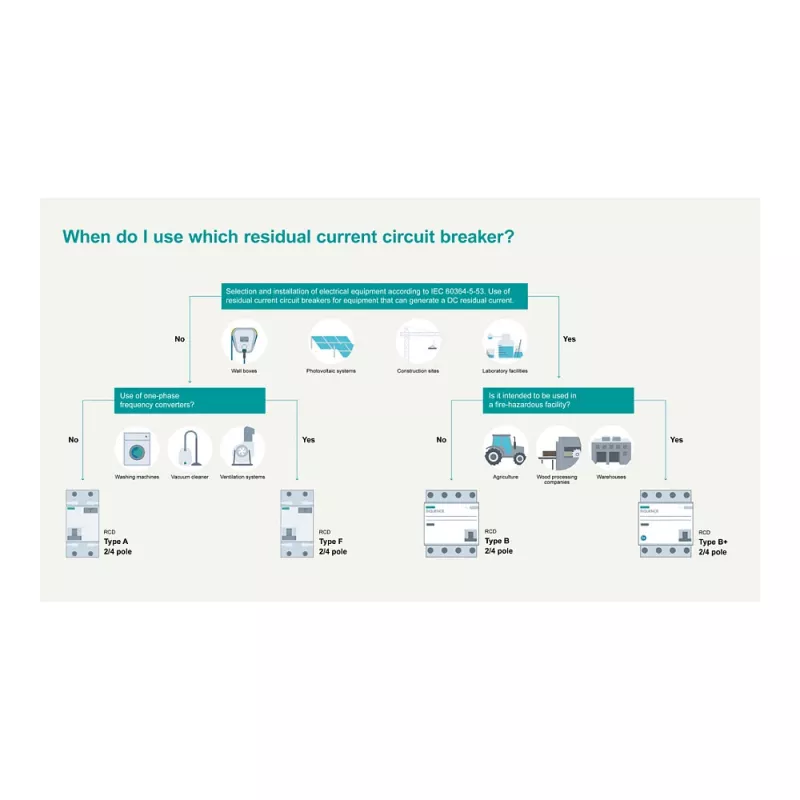

• Leakage current type: A
• Release characteristic: B
• Rated short-circuit breaking capacity (IEC 60947-2): 15 kA
• Surge current capacity: 1 kA
• Current limiting class: Class 3
• Total power loss: 3.7 W
• Connectable solid conductor cross-section: 0.75 - 16 mm²
• Connectable stranded conductor cross-section: 0.75 - 16 mm²
• International protection (IP) code: IP20
• Pollution degree: 2
• Overvoltage category: CAT III
• Mounting type: DIN rail

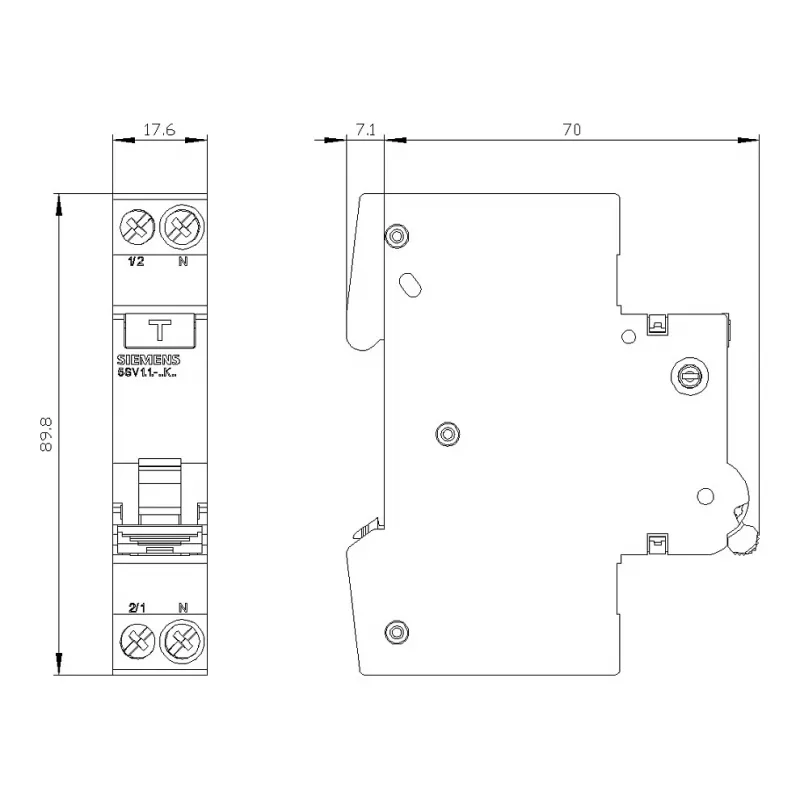

• Mounting depth: 7 cm
• Ambient temperature range: -25 to 45 °C
• Disconnection characteristic: Undelayed
• Conformity certificates: CE, RoHS, REACH
