SIEMENS elemento di segnalazione 24V UC LED giallo 8WD44286XD

Signal column element with continuous yellow LED light for modular signal towers. Operates on 24V AC/DC and mounts directly onto compatible SIEMENS SIRIUS ACT 8WD44 signal columns.

Advantages

Long-life LED light source with over 100,000 hours of operation. IP65 protection for use in demanding industrial environments. Stackable design allows flexible configuration of multi-element signal towers.

Suitable for

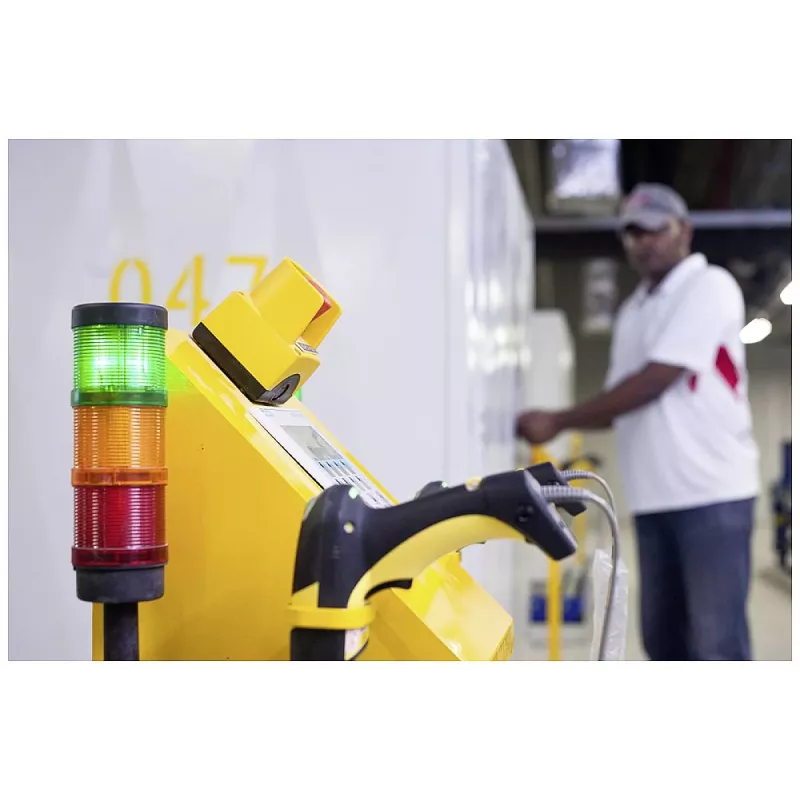

• Status indication on machines and production lines
• Warning and signaling in automation systems

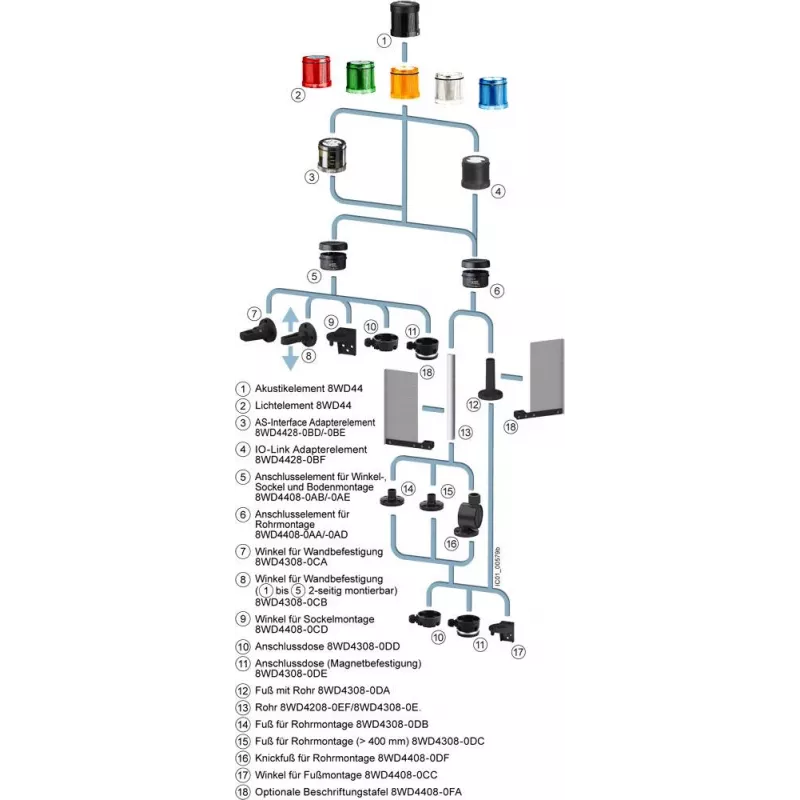

• Building into SIEMENS SIRIUS ACT 8WD44 signal columns

Key specifications

• Light source: LED, continuous light
• Colour: yellow
• Operating voltage: 24V AC/DC
• Rated current: 20 mA
• Power consumption: 0.48 W
• Diameter: 70 mm, height: 57.5 mm
• Degree of protection: IP65
• Operating temperature: -20 to +50 °C
• Connection: screw terminals
• Housing material: plastic (polycarbonate)

Recommendations

Combine with other 8WD44 elements to create a complete signal tower. Ensure correct voltage supply and use appropriate sealing for outdoor applications.
