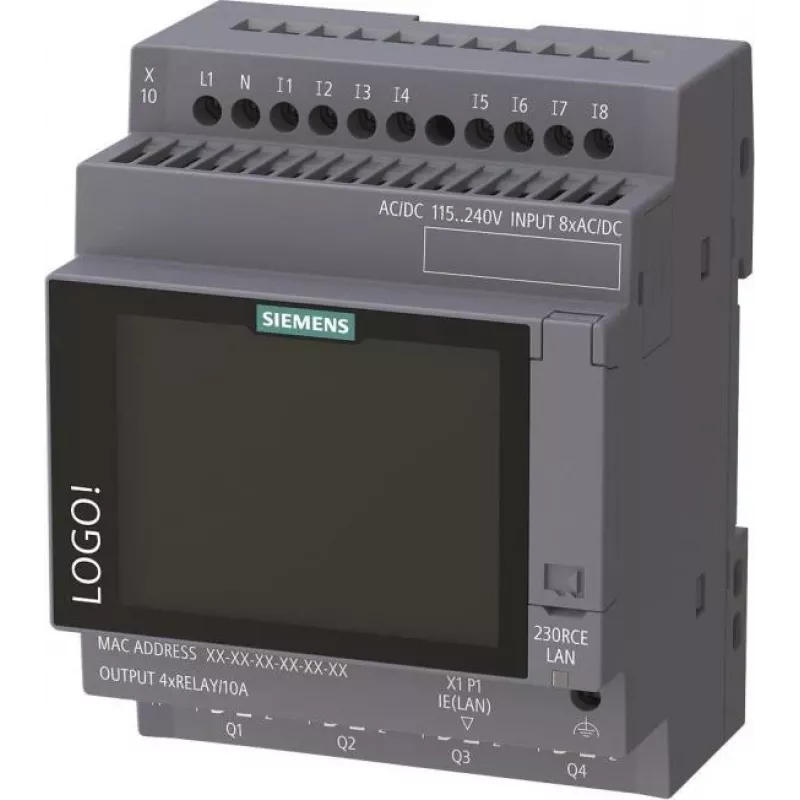

Siemens LOGO! 230 RCE Modulo logico 6ED1052-1FB08-0BA3

The Siemens LOGO! 230 RCE is a compact logic module from the LOGO! 8.3 series, designed for basic automation tasks. It combines a power supply, controller, display, and Ethernet interface in a single DIN rail-mounted unit. With 8 digital inputs (4 configurable as analog), 4 relay outputs, and an integrated LCD, it offers flexible control for small to medium applications.

Advantages

Easy programming via LOGO! Soft Comfort V8.3 or higher, integrated web server for remote monitoring, and expandable with up to 16 additional modules. The real-time clock with backup ensures time-stamped data logging.

Suitable for

• Building automation (lighting, HVAC)
• Machine control
• Conveyor systems
• Irrigation control
• Small process automation

Key specifications

• Supply voltage: 230 V AC/DC
• 8 digital inputs (4 analog-capable)
• 4 relay outputs
• Integrated LCD display
• Ethernet (RJ45) for programming and communication
• Program memory: 400 function blocks
• MicroSD card slot for data logging
• Modbus TCP/IP and S7 communication
• Operating temperature: 0 to 55 °C
• Protection class: IP20

Recommendations

For optimal performance, use LOGO! Soft Comfort V8.3 or higher. Expand with LOGO! expansion modules as needed. Ensure proper DIN rail mounting and adequate ventilation.
