Siemens SENTRON 5SL6010-6 interruttore automatico magnetotermico, 1P+N, C10, 230V, 6kA

With a rated breaking capacity of 6 kA and energy limiting class 3, this miniature circuit breaker provides reliable protection for residential and commercial circuits.

Overview

The Siemens 5SL6010-6 is a 1-pole + N miniature circuit breaker (MCB) from the SENTRON 5SL6 series. It is rated for 10 A with tripping characteristic C, suitable for protecting circuits with moderate inrush currents. The device operates at 230 V AC and 50/60 Hz, and is designed for DIN rail mounting (EN 60715).

What stands out

• High breaking capacity of 6 kA for reliable short-circuit protection
• Energy limiting class 3 minimizes let-through energy

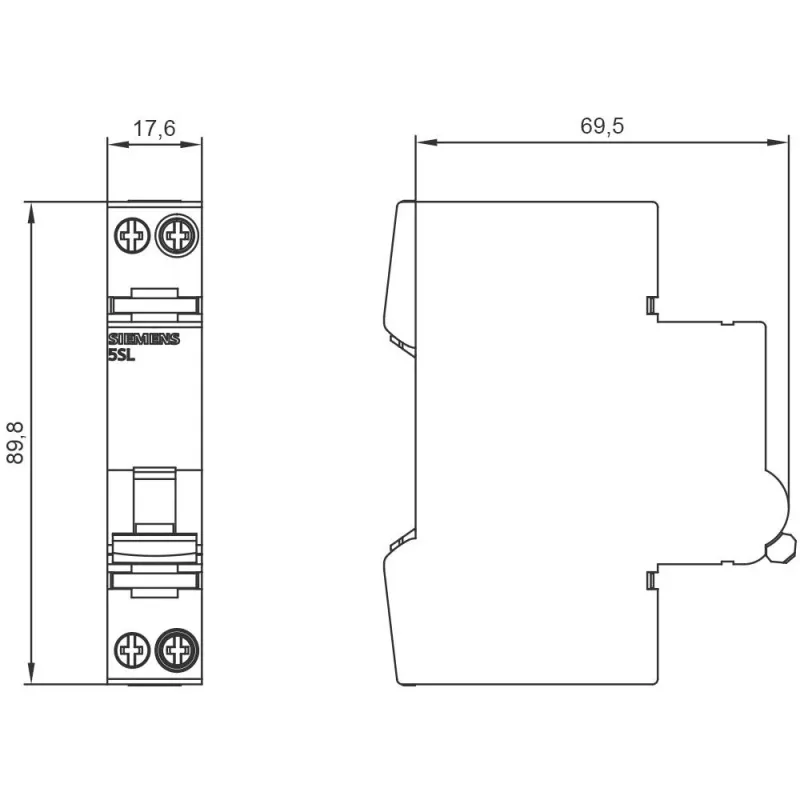

• Compact design: occupies 2 module units (36 mm)
• Wide terminal capacity: 0.75–35 mm² solid, 0.75–25 mm² stranded
• Robust endurance: 10,000 electrical and 20,000 mechanical switching cycles

Technical details

• Rated current: 10 A
• Tripping characteristic: C
• Number of poles: 1P+N
• Rated voltage: 230 V AC
• Rated breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715)
• Terminal type: Screw terminals
• Degree of protection: IP20 (terminals), IP40 (with enclosure)
• Electrical endurance: 10,000 switching cycles
• Mechanical endurance: 20,000 switching cycles
• Ambient operating temperature: -25 to +45 °C
• Standard: IEC 60898-1
• Overvoltage category: III

Our verdict

A dependable MCB for standard circuit protection, offering solid performance and ease of installation.
