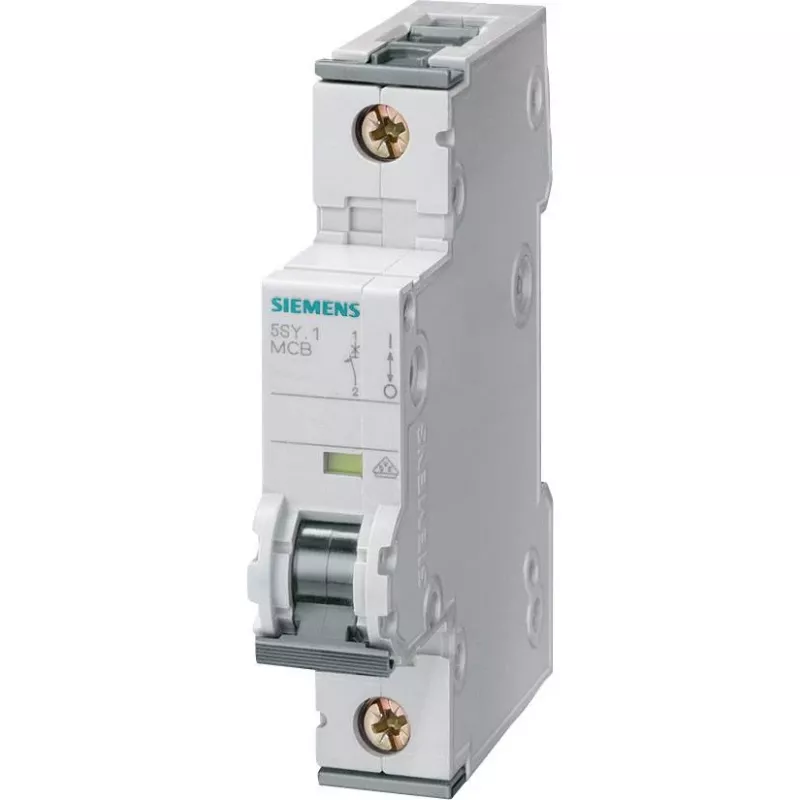

Siemens SENTRON 5SY4132-7 interruttore automatico magnetotermico 1 polo C 32A 6kA

Protect your electrical circuits with the Siemens SENTRON 5SY4132-7 miniature circuit breaker, ideal for use in distribution boards, control panels, and building installations. This 1-pole MCB with C-characteristic is designed for reliable protection of cables and equipment against overload and short circuit.

Key specifications

• Rated current: 32 A
• Tripping characteristic: C
• Number of poles: 1
• Rated voltage: 230 V AC
• Breaking capacity: 6 kA
• Mounting: DIN rail

Why choose it

The 5SY4132-7 offers a high breaking capacity of 6 kA, ensuring safe interruption of fault currents. Its screw terminals accept conductors up to 35 mm², providing flexibility for various wiring setups. With a mechanical and electrical service life of 10,000 cycles, it delivers long-term reliability.

Ideal use cases

• Protection of socket outlet circuits in residential and commercial buildings
• Control circuit protection in industrial control panels
• Backup protection for lighting and heating circuits

Good to know

The device is compliant with IEC/EN 60898-1 and suitable for ambient temperatures from -25°C to +45°C. It features an energy limiting class of 3, providing enhanced protection against let-through energy.
