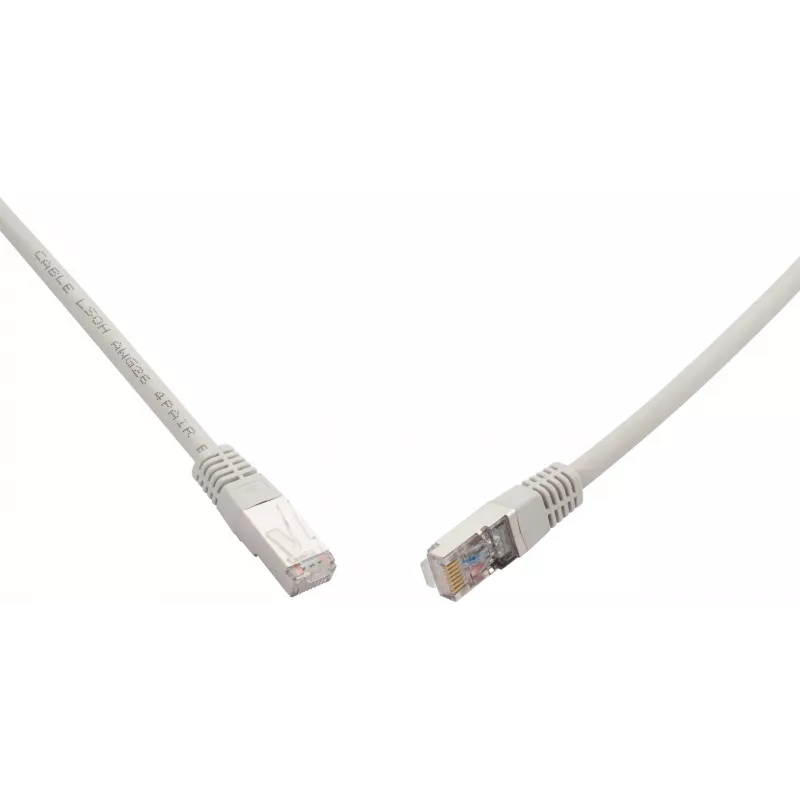

SOLARIX CAT.6A S/FTP cavo patch Ethernet 0,5 m grigio

The SOLARIX CAT.6A S/FTP Ethernet Patch Cable is a high-performance networking solution designed for demanding data center and enterprise environments. With a length of 0.5 meters and a sleek grey color, this cable ensures reliable, high-speed connectivity for short-distance connections.

Advantages

Engineered with S/FTP shielding (overall braid and foil per pair), this cable provides excellent protection against electromagnetic interference (EMI) and crosstalk, ensuring stable data transmission. The 26 AWG stranded copper conductors offer flexibility while maintaining signal integrity. Gold-plated RJ45 connectors (50µm) resist corrosion and ensure optimal contact. LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire.

Suitable for

• Connecting network devices in server rooms, data centers, and offices
• 10 Gigabit Ethernet (10GBASE-T) networks
• Applications requiring high bandwidth up to 500 MHz
• Installations where fire safety is a priority (LSZH jacket)

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT.6A (Category 6A)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Length: 0.5 meters
• Color: Grey
• Connector Type: RJ45 (8P8C)
• Connector Plating: Gold-plated (50µm)
• Conductor Material: 100% Copper (OFC)
• Conductor Gauge: 26 AWG
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Wiring Standard: TIA/EIA-568B
• Frequency Bandwidth: Up to 500 MHz
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Impedance: 100 Ohm
• Number of Pairs: 4 Twisted Pairs
• Cable Construction: Stranded
• Operating Temperature: -20°C to +60°C
• Certifications: RoHS, CE, ISO/IEC 11801, EN 50173
• Flame Retardancy: IEC 60332-1
• Outer Diameter: Approx. 6.0 mm

Recommendations

For optimal performance, use with CAT.6A compatible switches, routers, and network interfaces. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for structured cabling systems requiring high-speed data transfer and minimal interference.
