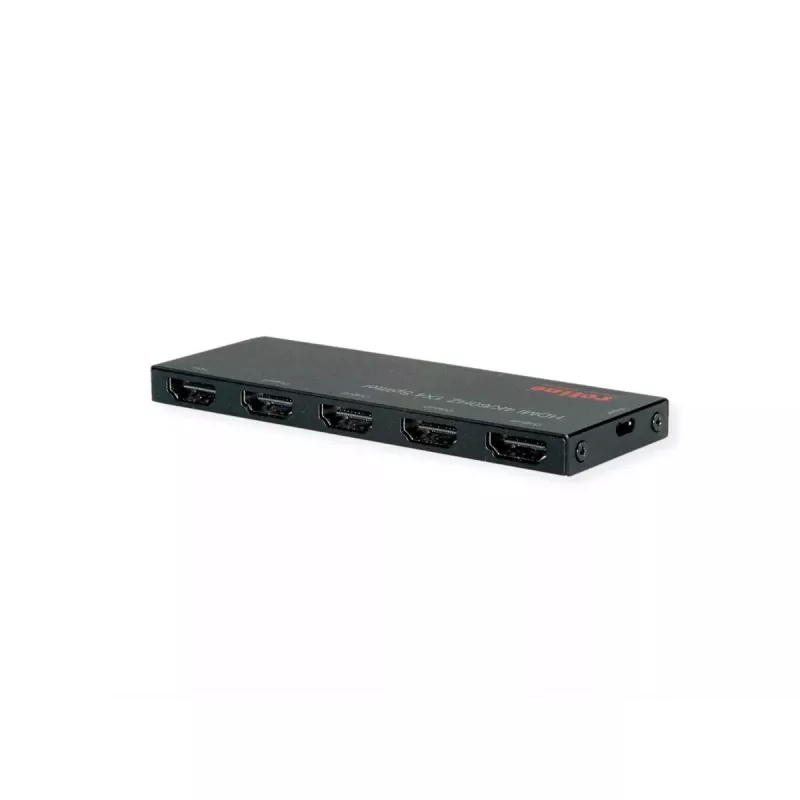

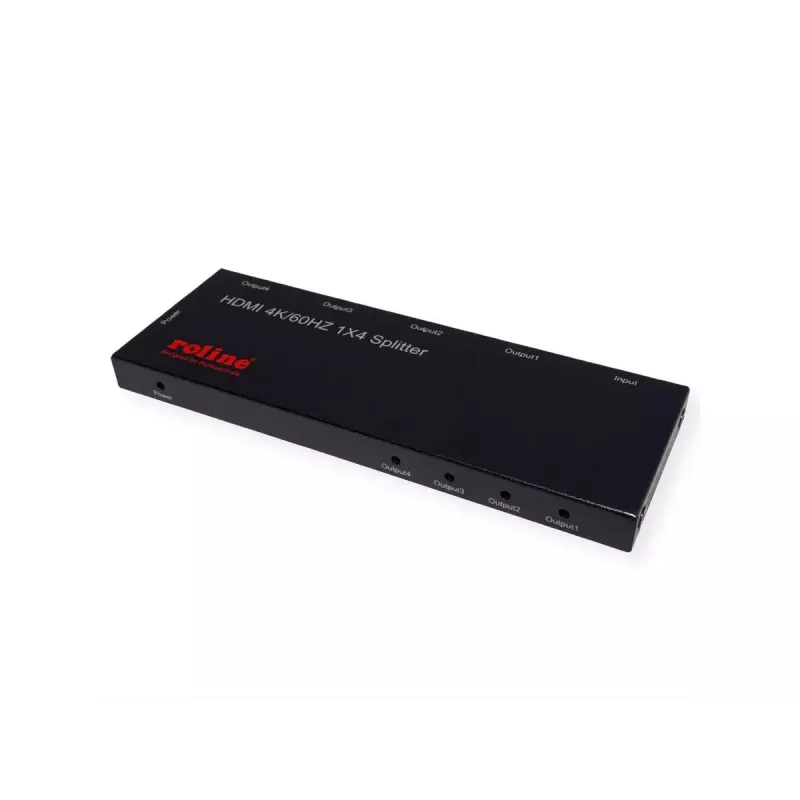

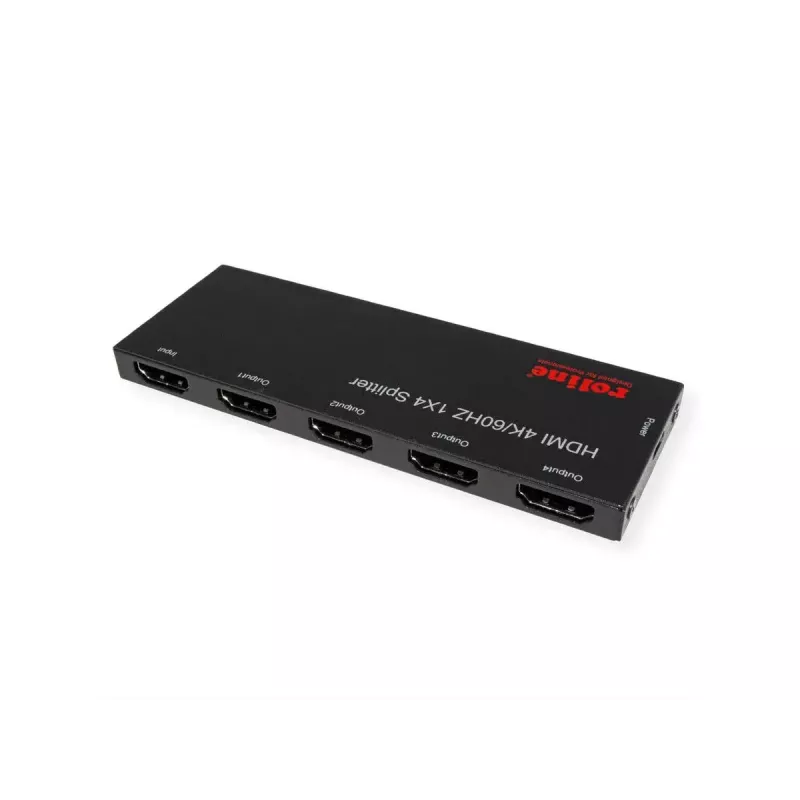

Splitter video ROLINE 14.01.3557 4x HDMI 3840x2160 60Hz

The ROLINE 14.01.3557 is a compact 4x HDMI video splitter that lets you distribute a single HDMI source to up to four HDMI-capable displays with a maximum supported resolution of 3840 x 2160 pixels at 60 Hz. With a small footprint (113 mm × 40 mm × 9 mm) and lightweight construction, it is suitable for use in presentations, home theatre setups, or gaming systems where high-resolution output is required.

Advantages

This HDMI splitter supports 4K UHD at 60 Hz, enabling clear and detailed video on multiple screens simultaneously. Its compact dimensions and low weight make it easy to place near equipment or hide within AV installations. The device provides five HDMI ports in total (one input and four outputs), allowing connection of one source and up to four displays without additional converters.

Suitable for

• Presentations and meeting rooms
• Home theatre and multiroom video distribution
• Gaming setups with multiple displays
• Digital signage and retail displays

Key specifications

• Model: ROLINE 14.01.3557
• Ports: 5 HDMI ports (1 input, 4 outputs)
• Maximum resolution: 3840 x 2160 @ 60 Hz
• Dimensions: 113 mm × 40 mm × 9 mm
• Weight: 0.0794 kg
• Brand: ROLINE
• MPN: 14.01.3557
• EAN: 7630049621404

How to use

Connect the HDMI source (computer, player, or other HDMI output) to the splitter's input port using a compatible HDMI cable. Connect up to four HDMI-capable displays (monitor, projector, TV) to the splitter's output ports. Power and signal management are handled by the unit; ensure source and displays support 4K@60Hz if that resolution is required. Adjust display settings on the source device as needed to match the connected screens.

Recommendations

For best performance at 3840 x 2160 @ 60 Hz, use high-quality HDMI cables rated for 18 Gbps or higher and keep cable runs as short as practical. Verify that connected devices support the desired resolution and refresh rate. Place the compact splitter near the source or within an AV rack for neat cable management.
