Supporto a parete piatto B-Tech Elements Fixed 400 65" nero blu max 50 kg

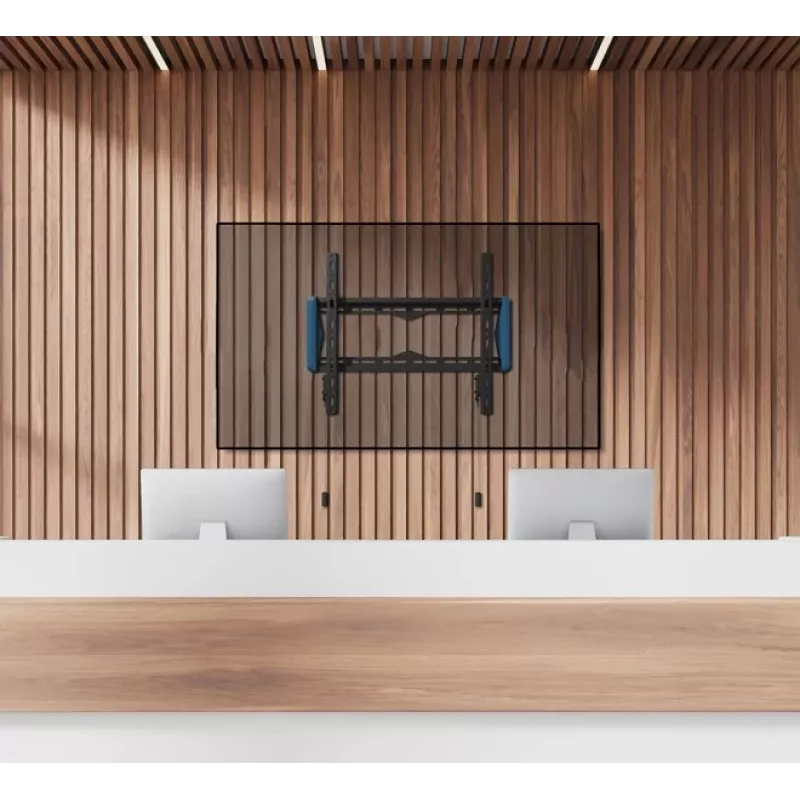

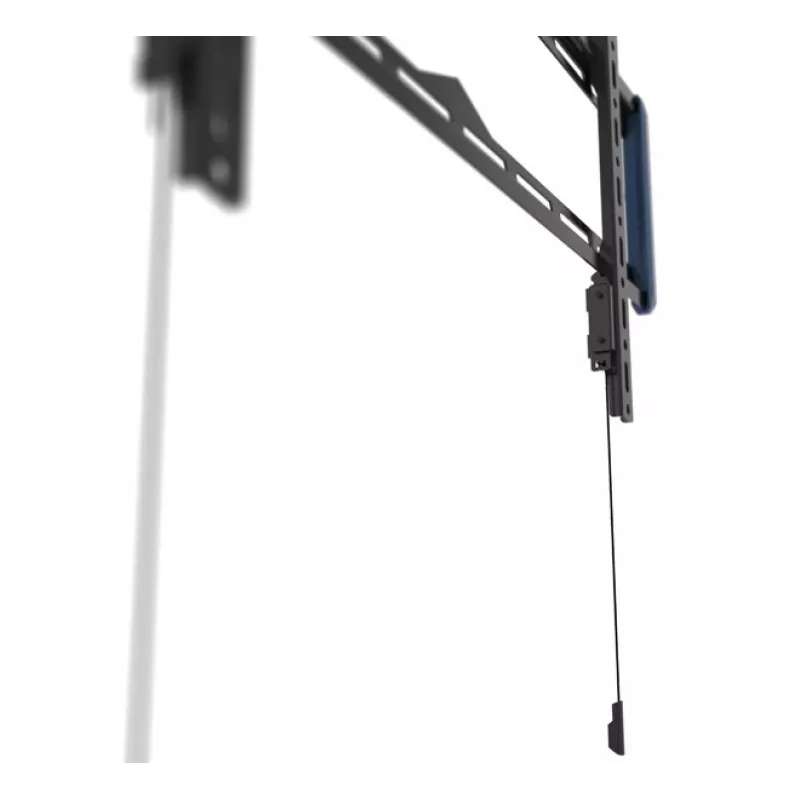

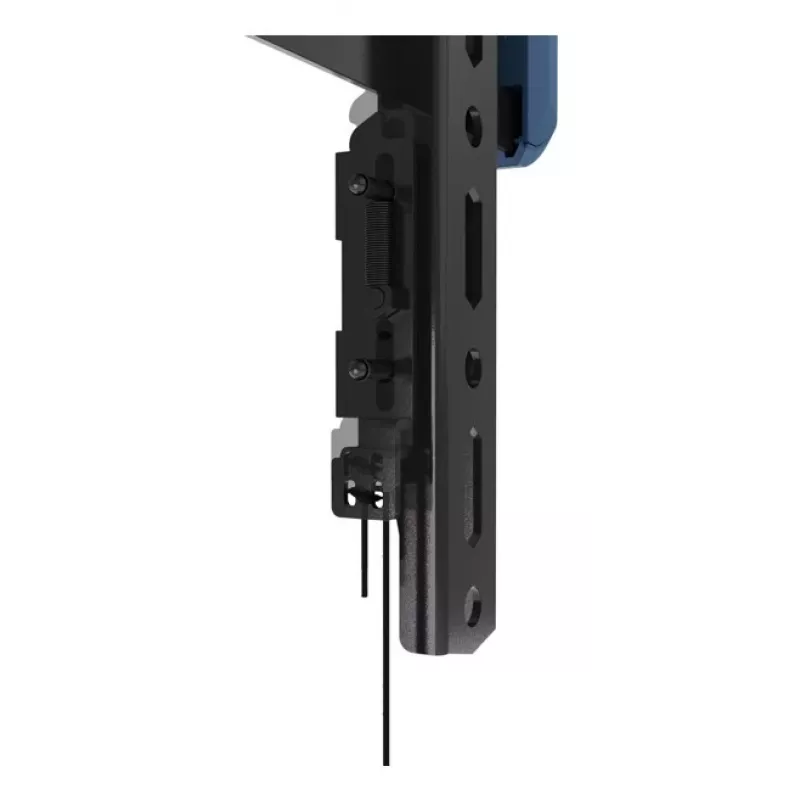

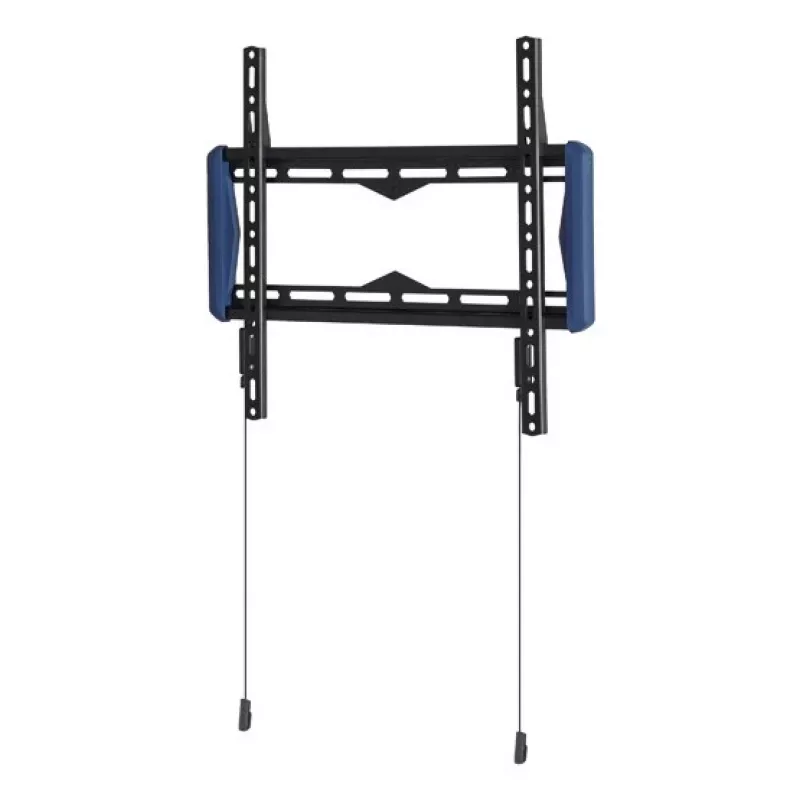

The B-Tech Elements Fixed 400 Flat 65" Wall Mount (BT5441/B) is a slim-profile bracket designed for medium to large screens up to 165.1 cm (65") and up to 50 kg. The mount offers a low-profile installation at a depth of 27 mm from the wall and features a universal interface that supports VESA patterns from 100 x 100 mm to 450 x 400 mm, making it compatible with a wide range of TVs. Built-in lateral adjustment and a quick-release locking mechanism simplify alignment and removal during installation.

Advantages

This wall mount combines the core strengths of B-Tech Elements—solid build quality, strength and reliable performance—while maintaining a slim, unobtrusive profile. Its universal VESA compatibility and 50 kg load capacity cover most single-display home and commercial applications. The quick-release lock provides fast access when servicing the display, and the lateral adjustment helps achieve precise positioning without re-drilling.

Suitable for

• Flat-screen TVs up to 65" (165.1 cm) with VESA 100 x 100 to 450 x 400 mm
• Hospitality environments such as hotel rooms and corridors
• Residential living rooms and bedrooms
• Offices, meeting rooms and digital signage with single-display setups

Key specifications

• Model: BT5441/B
• Maximum screen size: 65" (165.1 cm)
• Maximum weight capacity: 50 kg
• VESA compatibility: 100 x 100 mm up to 450 x 400 mm
• Profile depth from wall: 27 mm
• Colour: Black, Blue
• Number of displays supported: 1

How to use

Position the mount on the chosen wall and mark fixing points according to the included template and your wall type. Secure the bracket using appropriate fixings for the wall material, then attach the compatible VESA adaptor arms to the TV. Lift the TV onto the mount, engage the quick-release locking mechanism and use the lateral adjustment to fine-tune the horizontal position. Always verify the mount is fully locked before leaving the installation.

Recommendations

Ensure you use suitable wall fixings for the wall construction and confirm the combined weight of the TV and any accessories does not exceed the 50 kg limit. For safety and optimal alignment, two people are recommended for lifting and mounting larger displays.
