Supporto a soffitto Kindermann Premium 200

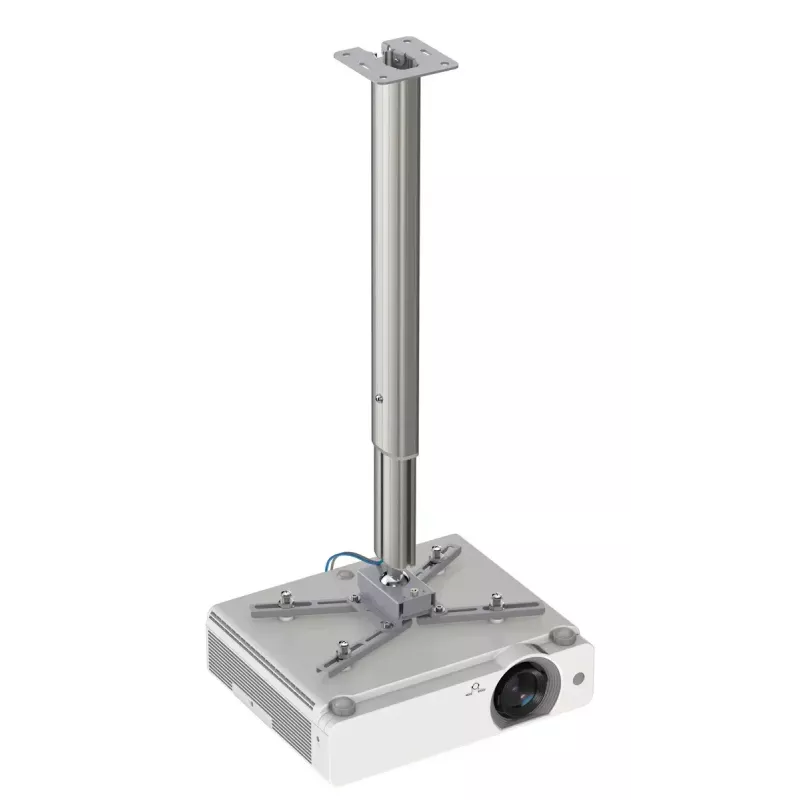

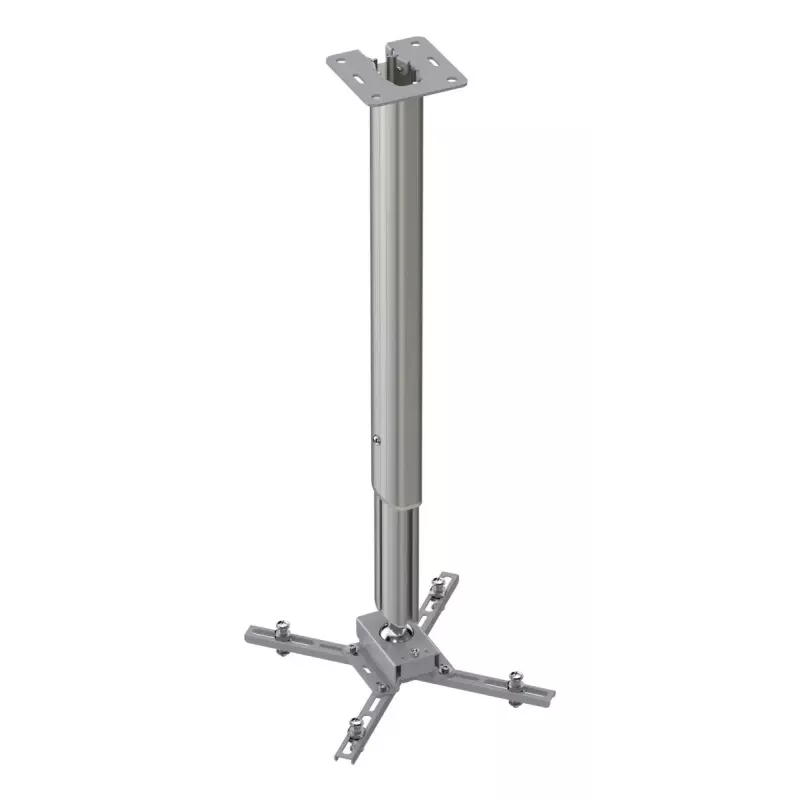

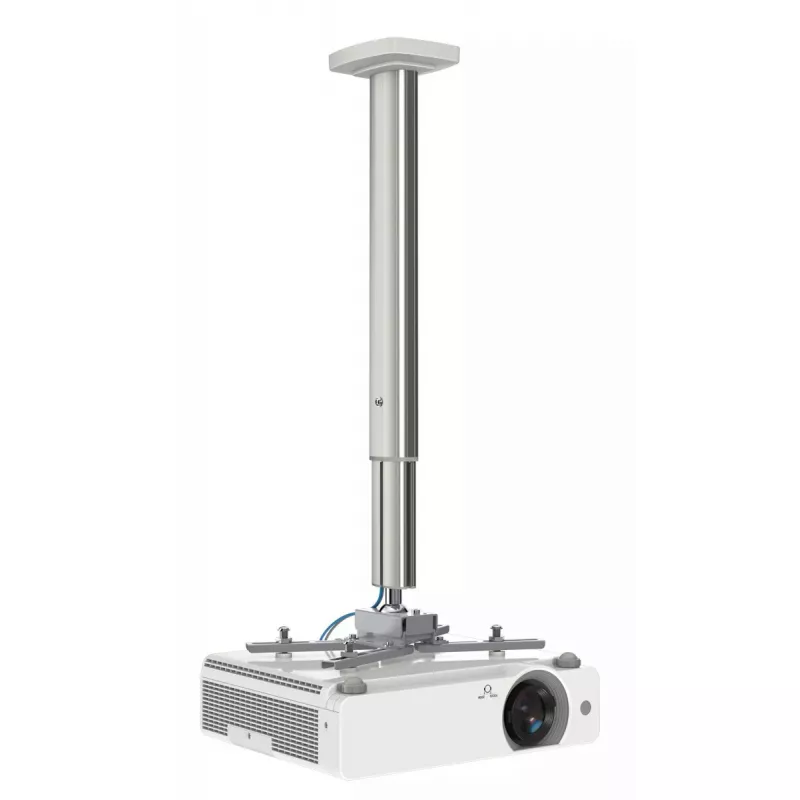

Ceiling Mount Kindermann Premium 200 is a high-quality ceiling bracket for data and video projectors with an adjustable distance to the ceiling of 111–200 cm. The mount supports projectors up to 25 kg and features an anodized aluminium profile with a fully covered interior cable channel for a neat installation.

Advantages

The mount comes pre-assembled for quick installation and offers stepless telescopic height adjustment. An aluminium ball-point joint with a quick-change system allows tilting the projector ±20° in all directions and rotating ±180°. Fixing points range from 138 to 378 mm and TÜV/GS certification confirms compliance with safety standards. Custom-made column lengths up to 300 cm are available on request.

Suitable for

Key specifications

How to use

Mount the pre-assembled ceiling bracket at the chosen ceiling location using suitable fasteners for your ceiling type. Adjust the telescopic column to the required distance within the 111–200 cm range and secure it. Attach the projector using the supplied screw set (M3, M4, M5, M6) and height-adjustable distance elements, then use the aluminium ball-point joint to set tilt and rotation for correct projection alignment.

Recommendations

Check the projector weight and mounting hole pattern before installation. Use appropriate ceiling anchors for the ceiling material and ensure all screws are tightened. For custom column lengths or special requirements, contact the manufacturer or supplier.
