Supporto a soffitto LogiLink BP0003 peso massimo 15 kg bianco

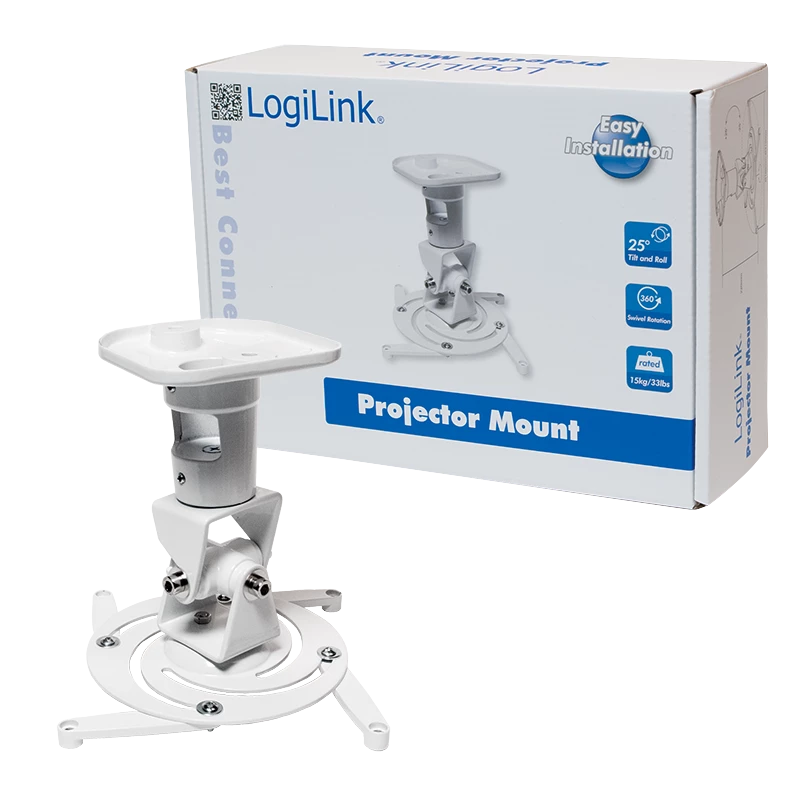

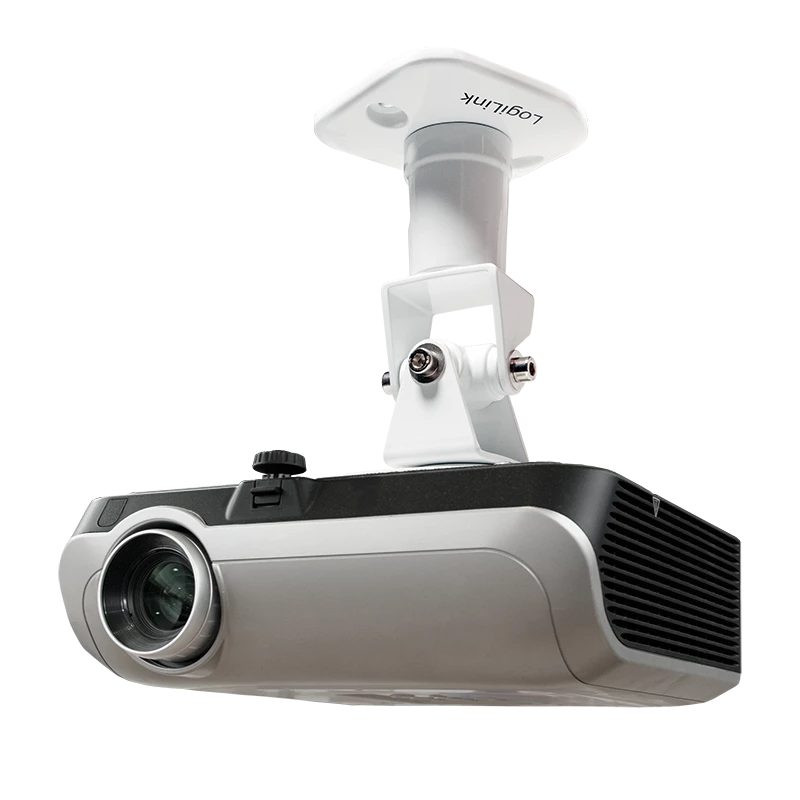

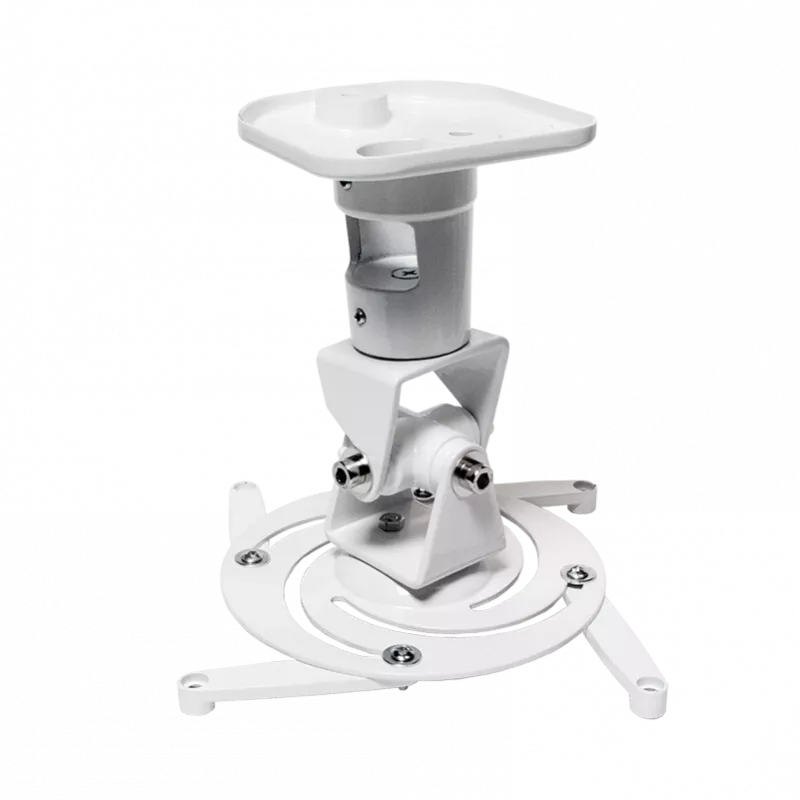

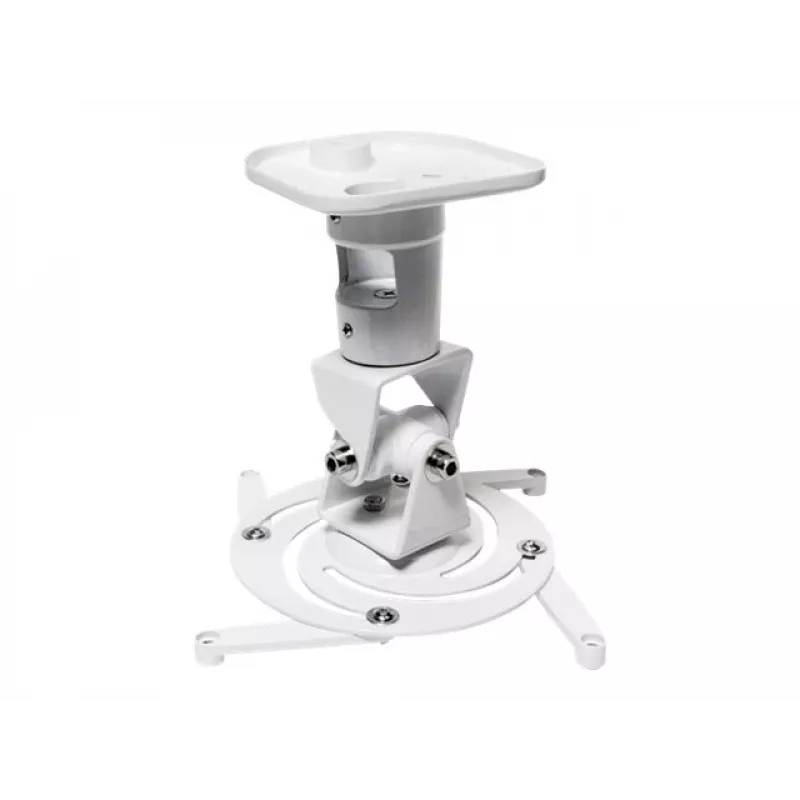

The LogiLink BP0003 ceiling mount is an aluminum-alloy die-cast support for projectors up to 15 kg. It has a white finish and compact dimensions (310 mm width × 220 mm height × 310 mm depth). The mount secures the projector with a screw connection adjustable to fit mounting patterns from 18 to 31 cm in diameter and includes a cable-routing channel for neat installation. It is designed for flat ceilings and is supplied with necessary installation hardware.

Advantages

The die-cast aluminum construction offers stable support while keeping the unit lightweight. Adjustable screw connection accommodates a range of projector mounting patterns (18–31 cm). Tilt and swivel adjustments provide flexibility: tilt up to 25° and full 360° swivel. Integrated cable channel helps keep cables organized. Supplied installation material simplifies mounting to flat ceilings.

Suitable for

• Mounting compact to medium-sized projectors (up to 15 kg)

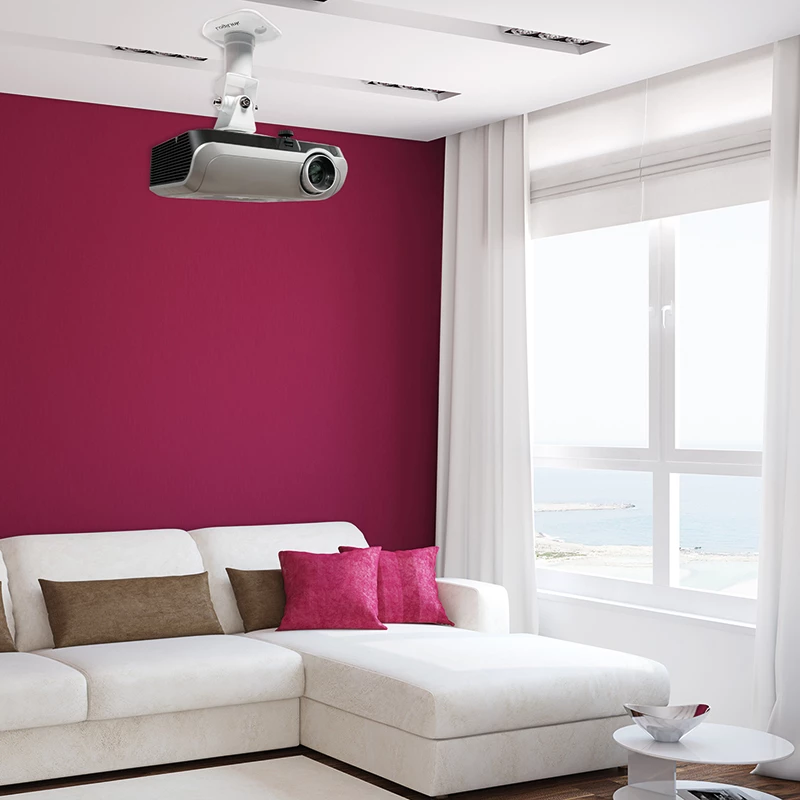

• Ceiling installations on flat ceilings in classrooms, meeting rooms, or home theaters
• Setups requiring cable management and flexible projector positioning

Key specifications

• Model: LogiLink BP0003
• Maximum load: 15 kg
• Material: Aluminum alloy (die-cast)
• Mounting pattern range: 18–31 cm diameter
• Tilt: up to 25°
• Swivel: up to 360°
• Colour: White

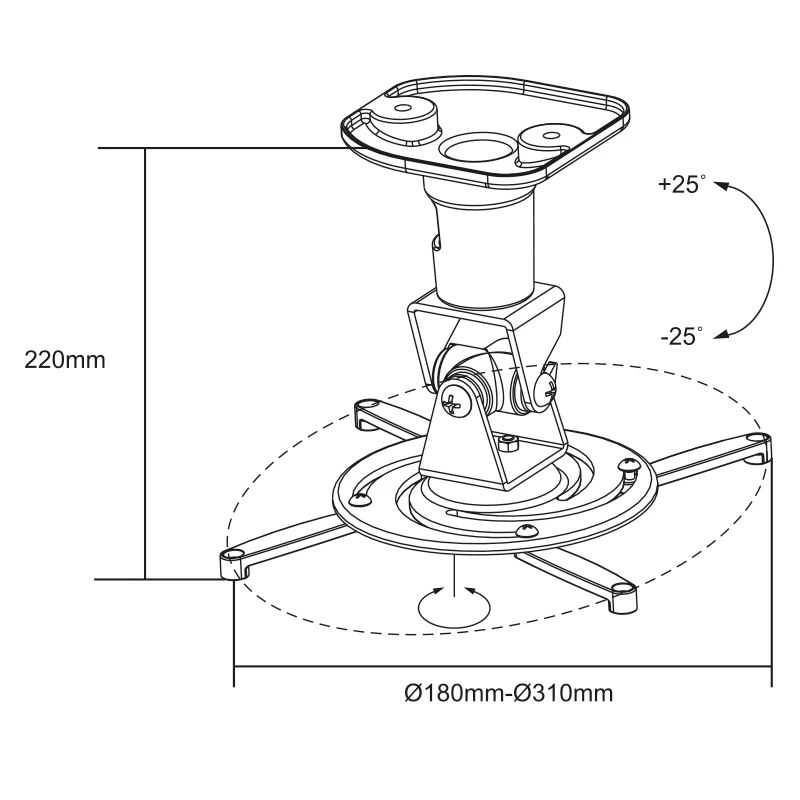

• Dimensions (W×H×D): 310 × 220 × 310 mm
• Mounting type: Ceiling

How to use

Attach the mount to a flat ceiling using the supplied installation material and follow local building codes for secure anchoring. Adjust the screw connection to match the projector's mounting holes within the 18–31 cm range, then fasten the projector securely. Route the power and signal cables through the integrated cable channel. Use the tilt (up to 25°) and swivel (360°) adjustments to set the projector's aim, then tighten all adjustment screws to lock the position.

Recommendations

Verify the projector weight and mounting-hole spacing before installation. For safety and optimal performance, ensure the ceiling structure can support the combined load and periodically check and retighten fasteners.
