Supporto Axis 01165-001 accessorio per telecamera di sicurezza

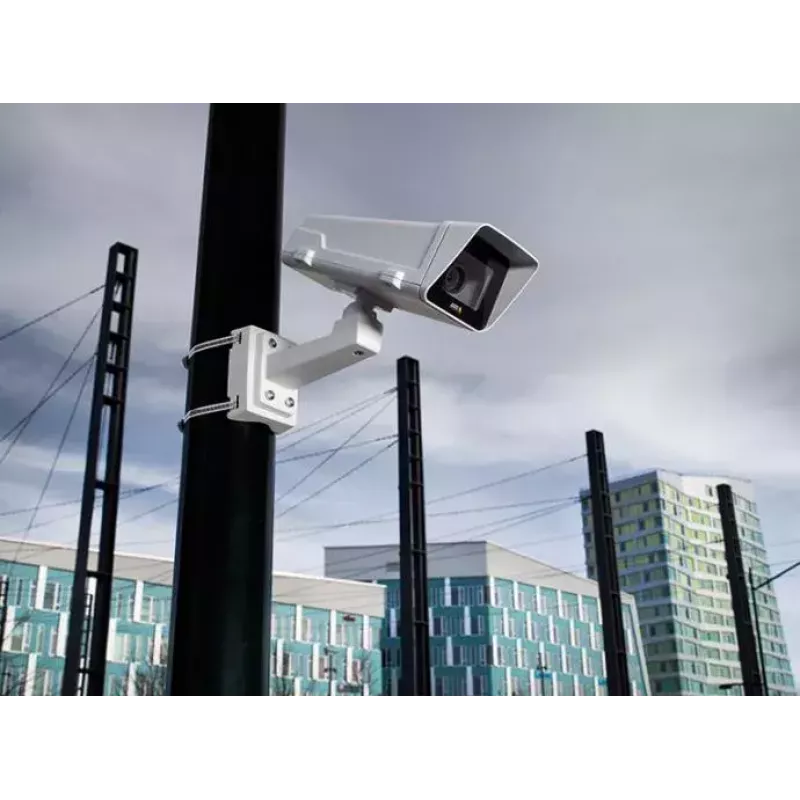

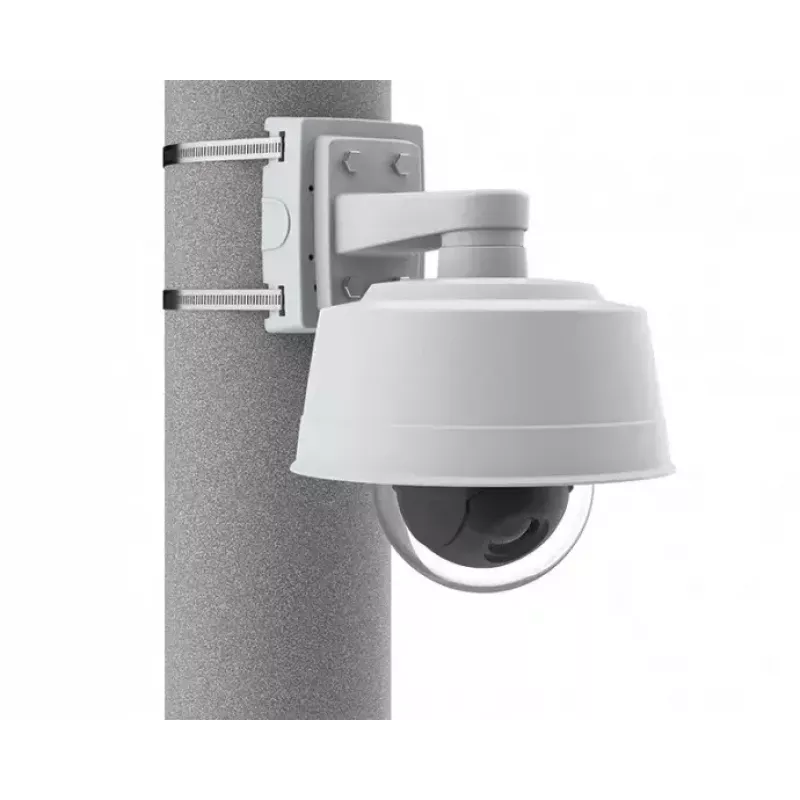

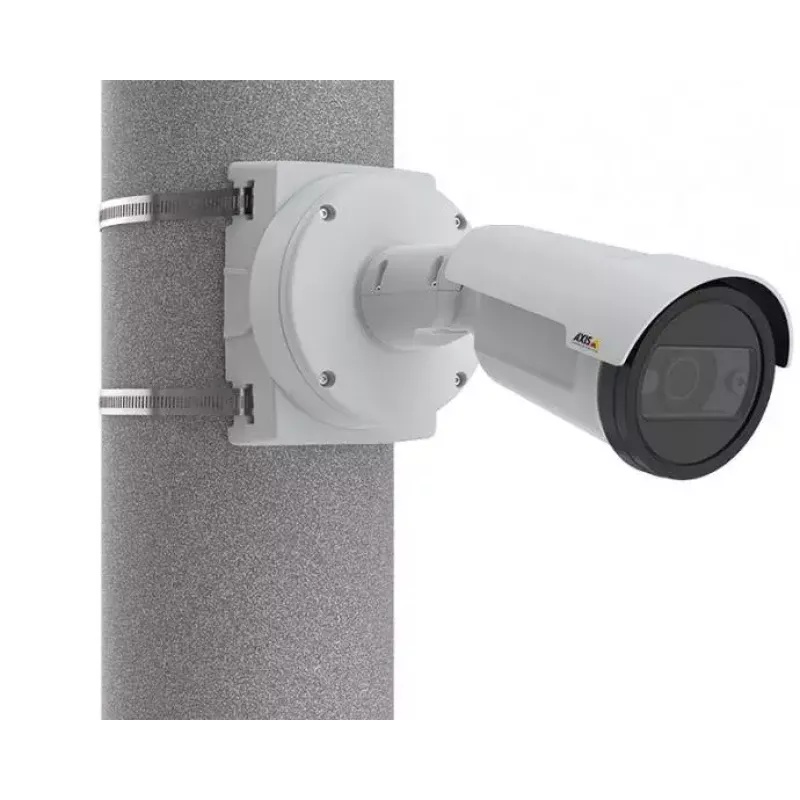

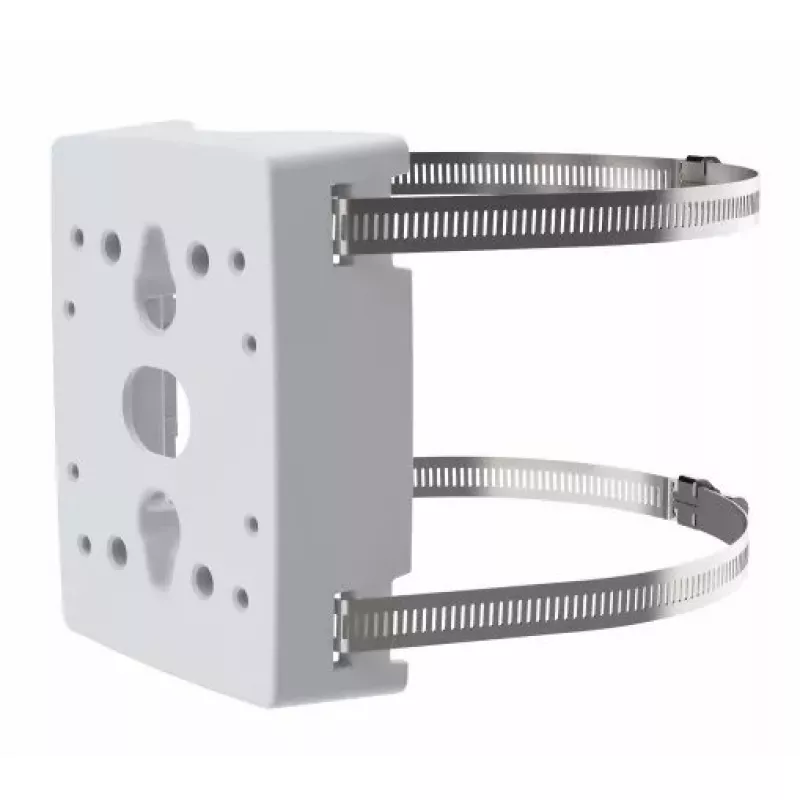

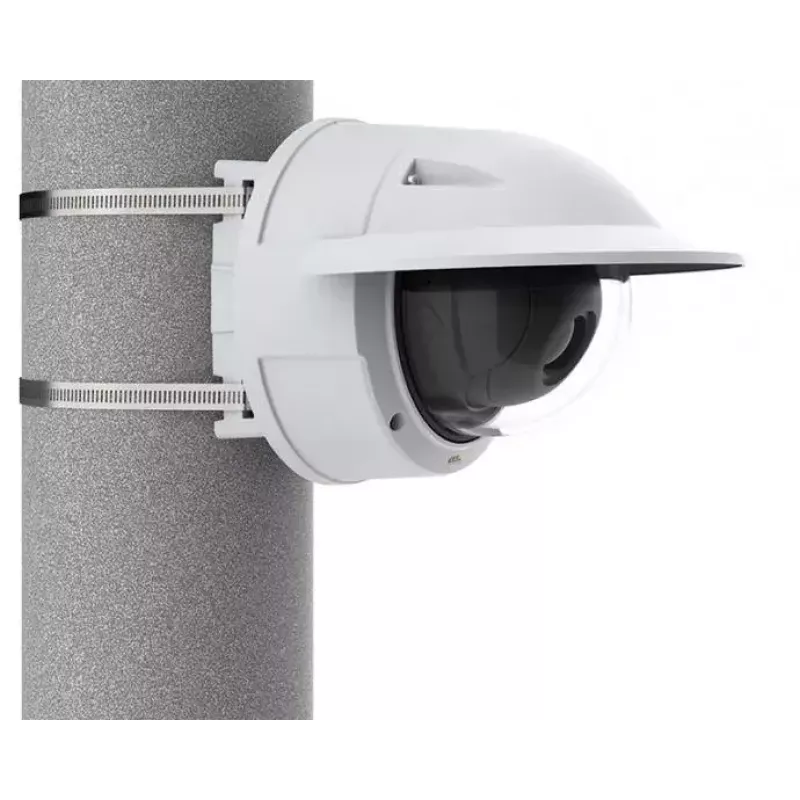

AXIS T91B47 Pole Mount is a mounting accessory for Axis fixed dome and fixed bullet cameras, suitable for indoor and outdoor installations. It features marine-grade (SS316L) stainless steel straps and comes in two versions to fit poles and beams. One version fits poles with diameters from 50 to 150 mm (2–6 in), and the other fits poles with diameters from 100 to 410 mm (4–16 in). When used with compatible Axis fixed cameras, no additional pendant kits are required.

Advantages

AXIS T91B47 offers corrosion-resistant SS316L straps for reliable outdoor performance and two strap-length options to cover a wide range of pole diameters. The mount can also attach cameras to beams, and its compatibility with Axis fixed dome and fixed bullet cameras eliminates the need for extra pendant kits, simplifying installation and lowering overall cost.

Key specifications

• Material: Marine-grade stainless steel (SS316L) straps
• Suitable for: Indoor and outdoor use
• Pole diameter version 1: 50–150 mm (2–6 in)
• Pole diameter version 2: 100–410 mm (4–16 in)
• Compatible with: Axis fixed dome and fixed bullet cameras

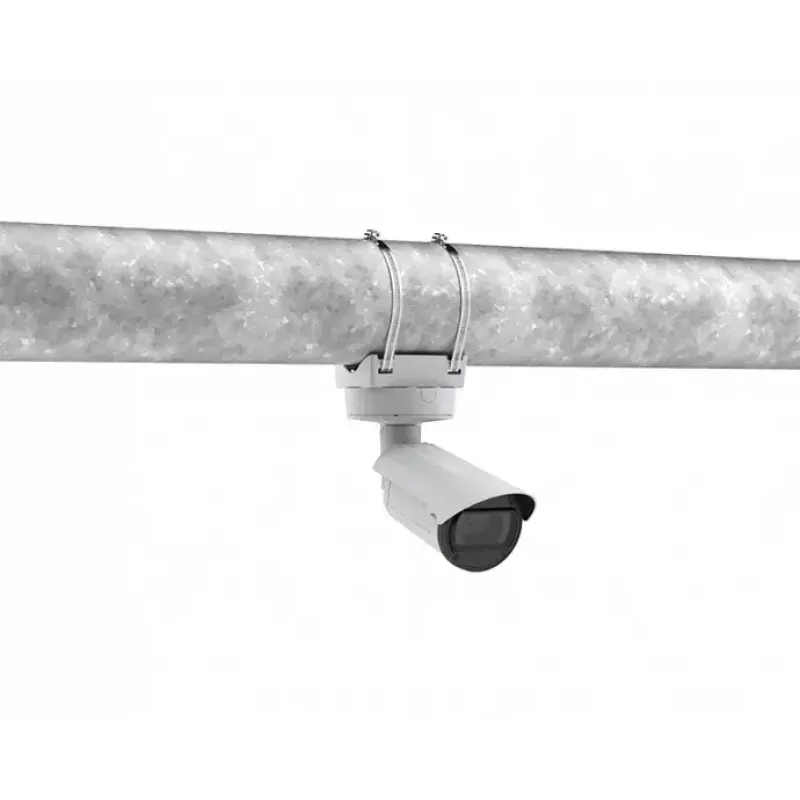

• Can be mounted on: Poles and beams

How to use

Select the version of AXIS T91B47 that matches the pole diameter. Secure the mount to the pole or beam using the supplied SS316L stainless steel straps, ensuring a tight and stable fit. Attach the Axis fixed dome or fixed bullet camera directly to the mount; no pendant kit is required for compatible cameras. Verify alignment and tighten all fasteners before completing the installation.

Recommendations

For outdoor installations in corrosive environments, choose the SS316L strap version and periodically inspect the mount and straps for wear or loosening to maintain a secure installation.
