Supporto Axis 5901-341 accessorio per telecamera di sorveglianza

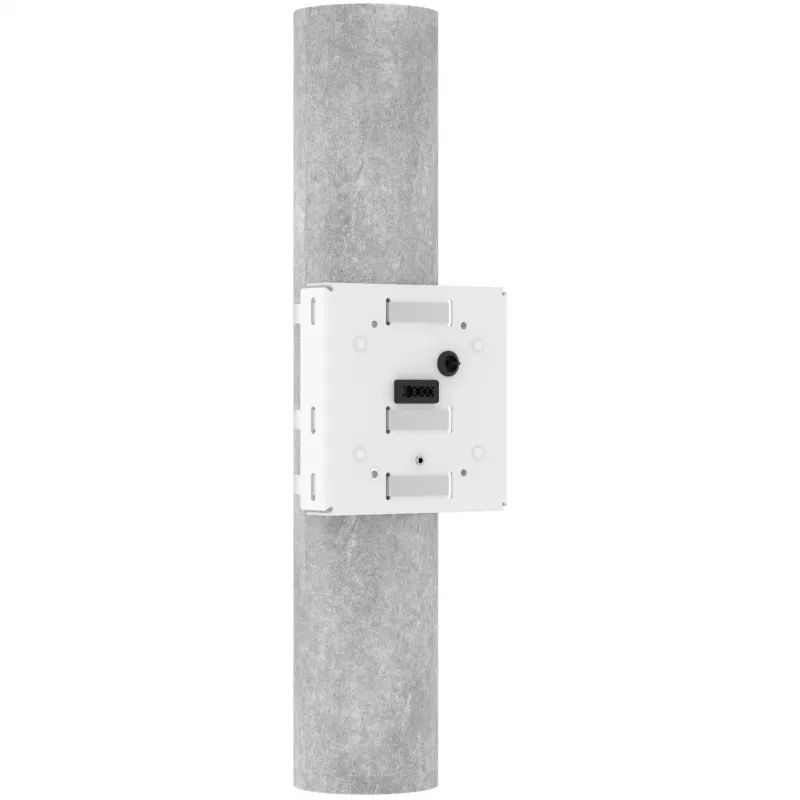

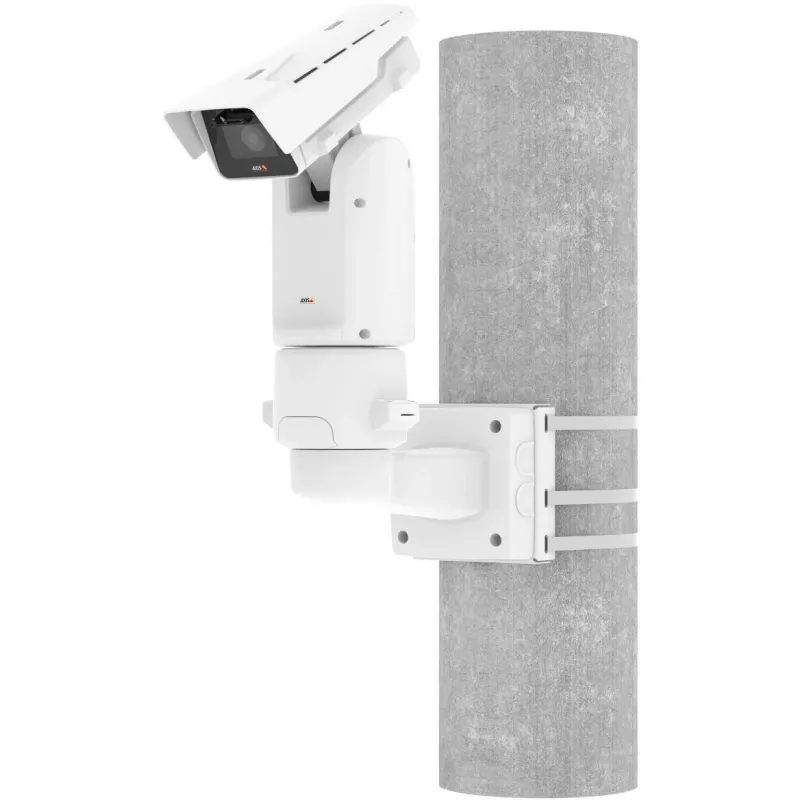

The AXIS T94N01G Pole Mount (MPN 5901-341) is a stainless-steel mounting bracket designed for outdoor installation with Axis positioning cameras, positioning units and the AXIS T98A cabinet series. It fits poles with diameters from 100 to 410 mm (4–16 in), supports typical outdoor surveillance installations and is suitable for corrosive environments. The mount measures 231 mm wide, 226 mm deep and 49 mm high, has a maximum supported load of 25 kg and is finished in white to blend with common outdoor fixtures.

Advantages

Constructed from marine-grade SUS 316L stainless steel, the mount resists corrosion in marine and underground installations. An IK10 impact rating provides protection against vandalism. The design includes a closed back and a cable gasket to prevent insect ingress and to protect cabling from the environment. Adjustable fittings allow secure attachment to a broad range of pole diameters.

Suitable for

• Outdoor surveillance with Axis positioning cameras
• Mounting Axis positioning units and AXIS T98A cabinets
• Coastal, marine and high-corrosion locations
• Poles with 100–410 mm (4–16 in) diameter

Key specifications

• Brand: AXIS
• Model / MPN: 5901-341 (T94N01G)
• Material: Marine-grade stainless steel (SUS 316L)
• Supported pole diameter: 100–410 mm (4–16 in)
• Dimensions (W×D×H): 231 × 226 × 49 mm
• Maximum load capacity: 25 kg
• Impact rating: IK10
• Color: White
• Suitable for AXIS T98A cabinet series

How to use

Position the mount around the pole and adjust the clamps to fit the pole diameter within the 100–410 mm range. Secure the mount using the integrated fastening points and ensure the unit is level before tightening. Route camera and power cables through the sealed cable entry and the gasket to maintain environmental protection. Attach the compatible Axis positioning camera or cabinet to the mount according to the camera manufacturer’s mounting instructions and verify the total weight does not exceed 25 kg.

Recommendations

For long-term performance in coastal or underground sites, periodically inspect the mounts, fastenings and cable gasket for signs of wear or damage; re-tighten fastenings after severe weather. Use recommended corrosion-resistant fasteners and follow Axis installation guidelines when mounting cameras and cabinets.
