Supporto per display signage SMS Smart Media Solutions PW030007

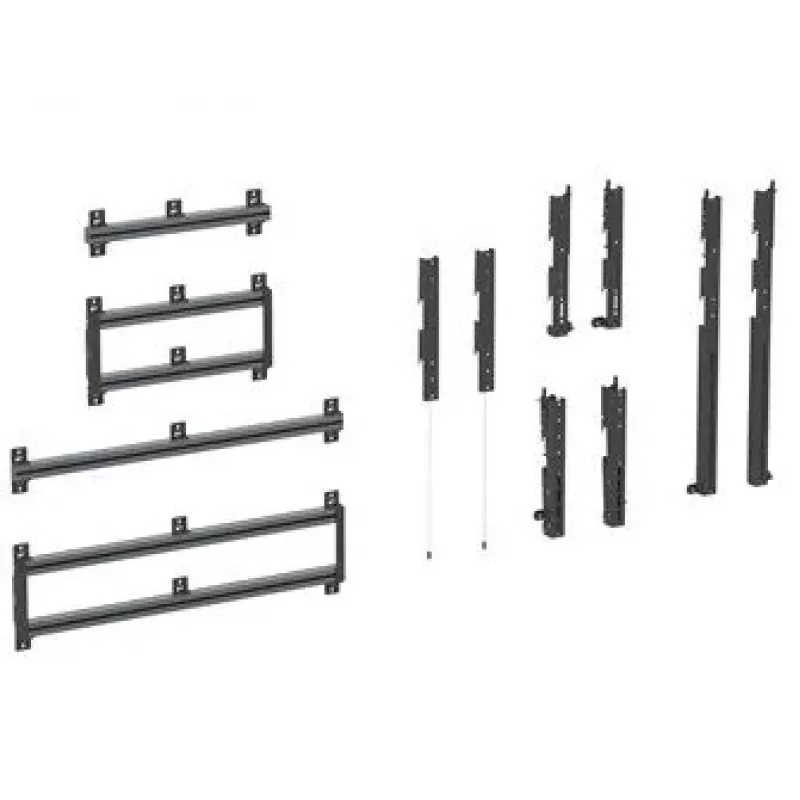

The SMS Smart Media Solutions PW030007 is a modular signage display mount designed to provide maximal stability for large and heavy displays. It supports screens from 116.8 cm (46") up to 2.29 m (90") and a maximum weight of 100 kg. The system uses a pick-and-mix approach so you can choose wall rails and display fixtures that match your display size, weight and required functions. Note that a complete order requires two article numbers: one for the wall rails and one for the display fitting.

Advantages

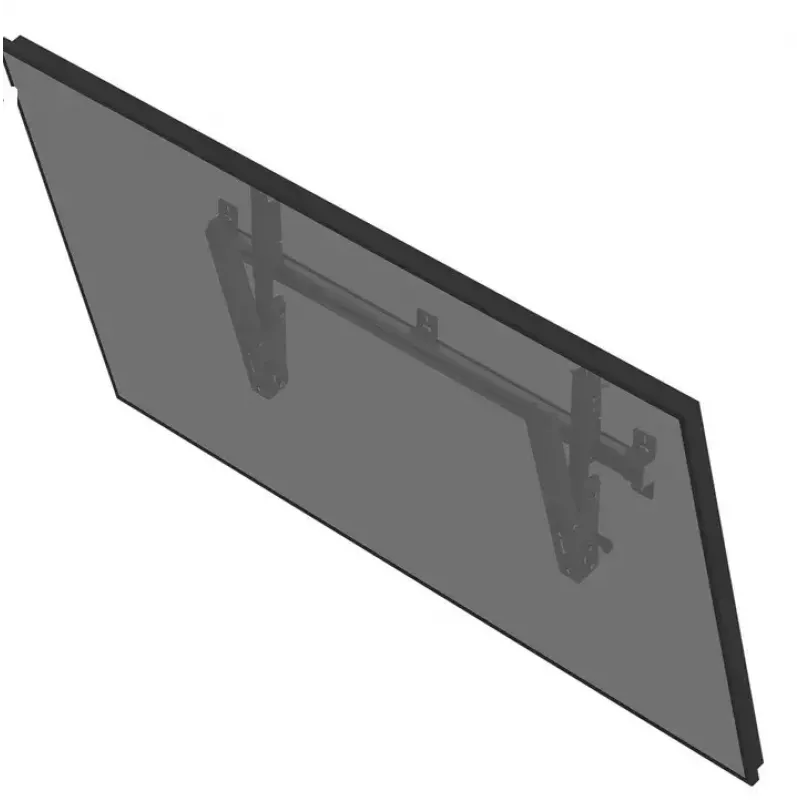

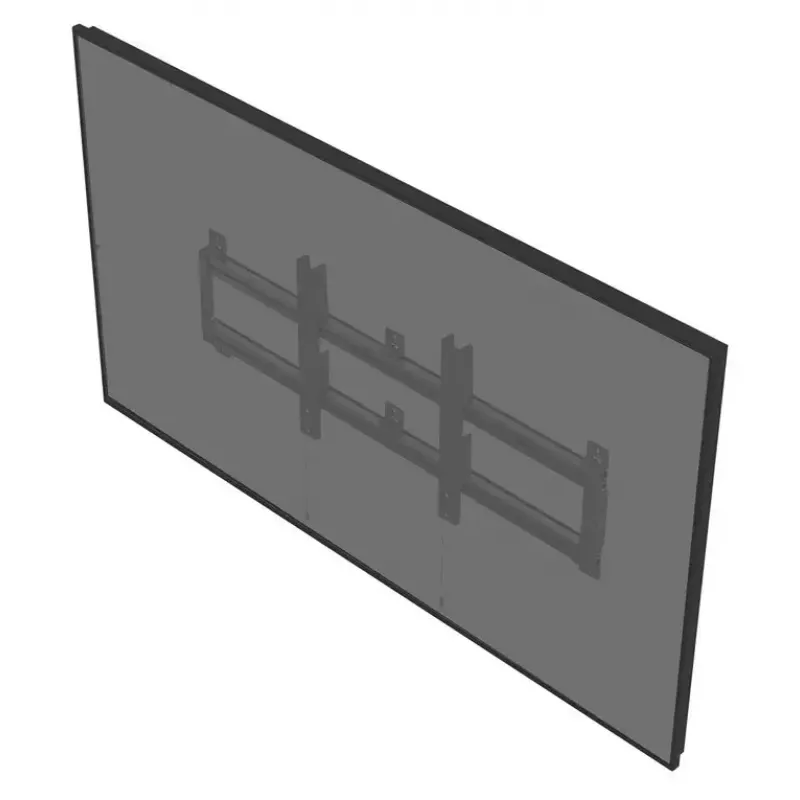

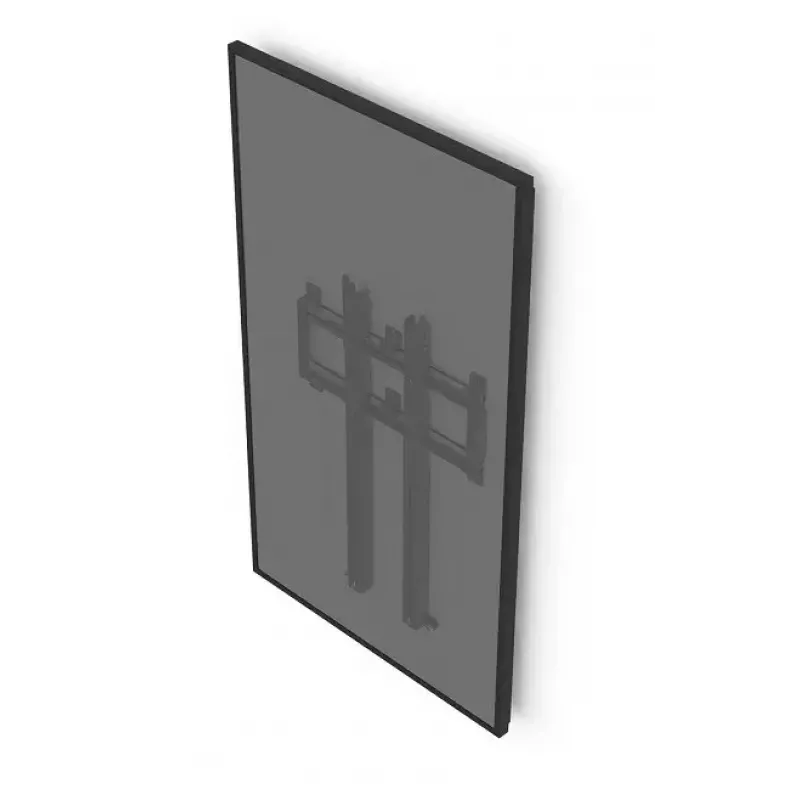

The PW030007 system combines modular flexibility with reinforced stability for large-format displays. Rails and modules are designed for easy insertion and removal, and accurate pre-assembly simplifies mounting and installation. The series supports both landscape and portrait orientation and offers options with or without tilt, plus an ergonomic click locking mechanism for large displays to reduce the risk of accidental demounting. The anthracite and grey finish provides a neutral appearance suitable for commercial environments.

Suitable for

• Large digital signage screens from 46" to 90"
• Commercial installations in retail, corporate and public spaces
• Videowall setups requiring modular, stable mounting

Key specifications

• Maximum weight capacity: 100 kg
• Supported screen size: 116.8 cm (46") to 2.29 m (90")
• VESA compatibility up to 900 x 900 (system designed for heavy displays)
• Colour: Anthracite, Grey

How to use

Select the wall rails that support the weight and dimensions of your display, then choose the display fixture that provides the required functions (landscape or portrait, with or without tilt, and click locking if needed). Mount the wall rails to a suitable load-bearing surface following the included instructions, insert the display fixture onto the rails and secure the display using the ergonomic locking mechanism where provided. Ensure all fasteners are tightened and the installation is checked for stability before operation.

Recommendations

For safe installation, verify the wall construction and load-bearing capacity before mounting. Use two article numbers when ordering: one for the wall rails and one for the display fitting. For heavy or high installations, use qualified installers and follow local safety regulations.
