SWIT ELECTRONICS S-7200S piastra per batteria ricaricabile V-Mount con morsetto per attacco treppiede 25-45mm D-Tap

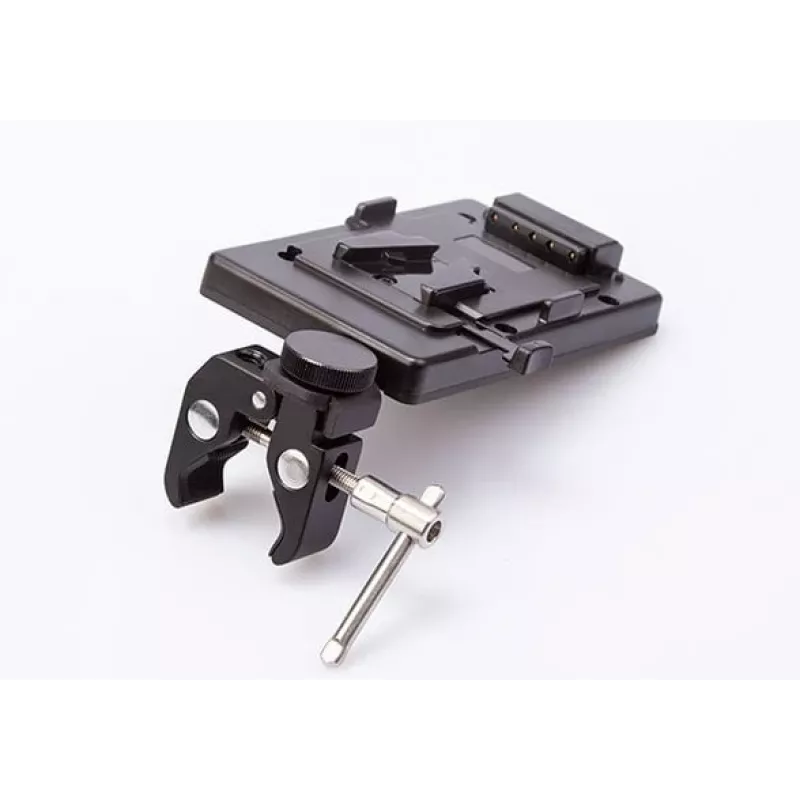

The SWIT ELECTRONICS S-7200S is a professional V-Mount battery plate featuring an integrated clamp for tripod mounting. Designed for demanding film and broadcast applications, it provides a secure power solution for cameras, monitors, lights, and accessories. The clamp accommodates tripod legs or tubes with diameters from 25 to 45 mm, ensuring versatile attachment options.

Advantages

Robust aluminum alloy and ABS plastic construction ensures durability in the field. The integrated clamp with locking knob allows quick and secure mounting without additional tools. Two D-Tap outputs provide unregulated 10-17V DC power, delivering up to 50W total for powering multiple devices simultaneously. Overload protection safeguards connected equipment.

Suitable for

• Professional video cameras and camcorders with V-Mount batteries
• On-camera monitors and lights
• Field production and ENG setups
• Studio and location power distribution

Key specifications

• Battery Mount: V-Mount
• Output Ports: 2 x D-Tap
• D-Tap Output Voltage: Unregulated, 10-17V DC (matches battery voltage)
• Max Total Output Power: 50W
• Max Total Output Current: 3.5A
• Clamp Mounting Diameter: 25-45 mm
• Construction: Aluminum alloy, ABS plastic
• Overload Protection: Yes
• Operating Temperature: -20°C to +45°C
• Storage Temperature: -30°C to +50°C

Recommendations

For optimal performance, use with standard V-Mount batteries. Ensure the clamp is securely tightened around a stable tripod leg or tube. The unregulated D-Tap outputs deliver battery voltage directly; verify device compatibility.
