Switch di rete LevelOne FEU-0512 Fast Ethernet 10/100 nero

The LevelOne FEU-0512 is a compact 5-port 10/100Mbps Ethernet switch that delivers wire-speed, non-blocking connectivity for small networks. All ports support auto-negotiation and auto-MDI/MDIX, allowing direct connection to routers, servers, hubs or other switches without crossover cables.

Advantages

The switch offers five 10/100BASE-TX ports with 10/100Mbps speeds, full/half-duplex operation, and auto-negotiation and auto-MDI/MDIX functions. It supports 1K MAC address auto-learning and auto-aging and is designed for quick, simple Plug and Play installation.

Key specifications

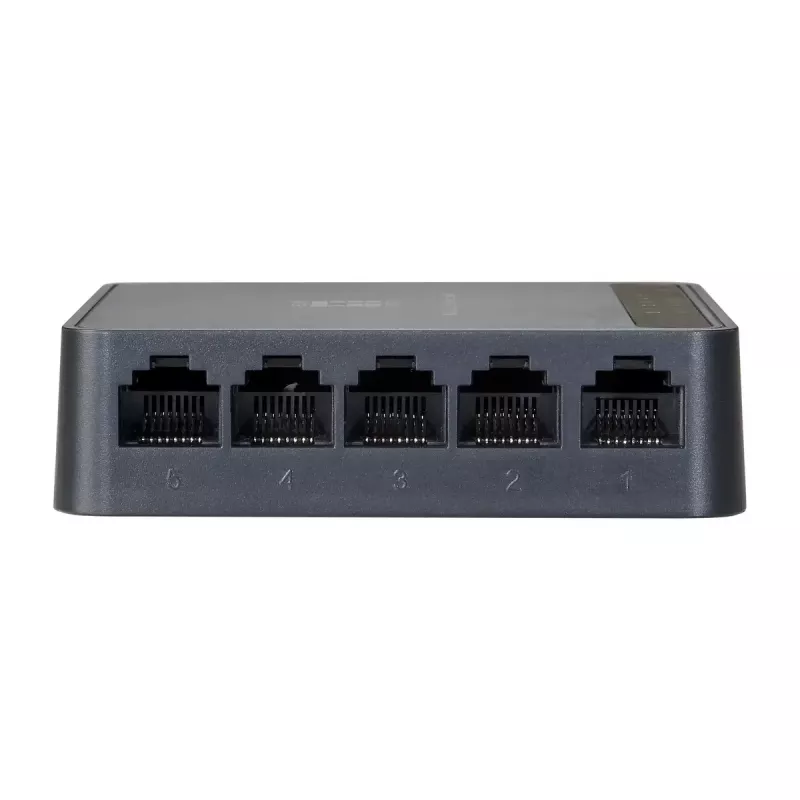

• Ports: 5 x 10/100BASE-TX
• Switching capacity: wire-speed, non-blocking
• MAC address table: 1K entries
• Forwarding rate: 148800 pps

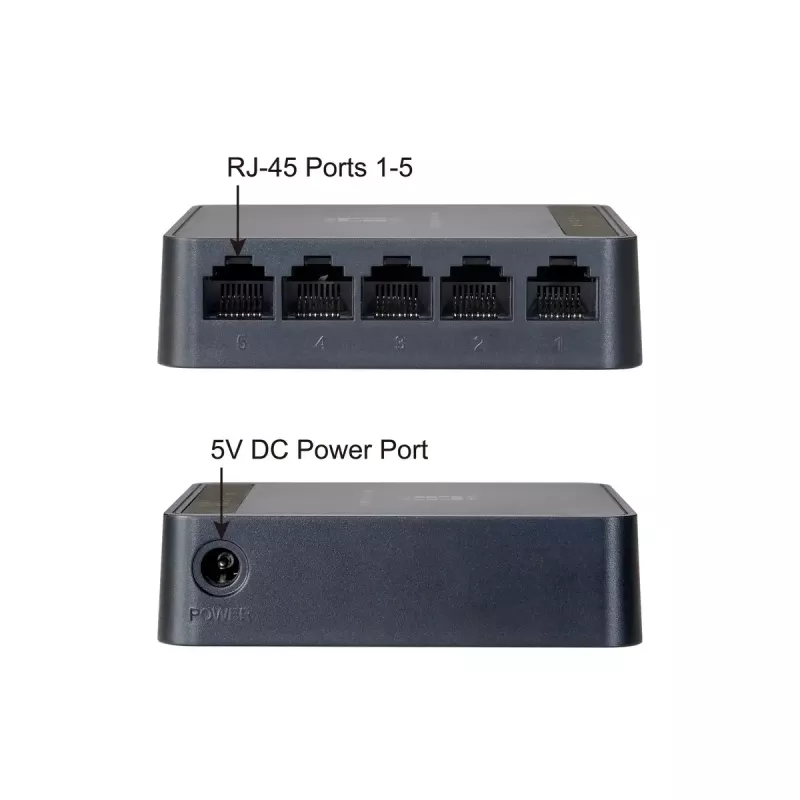

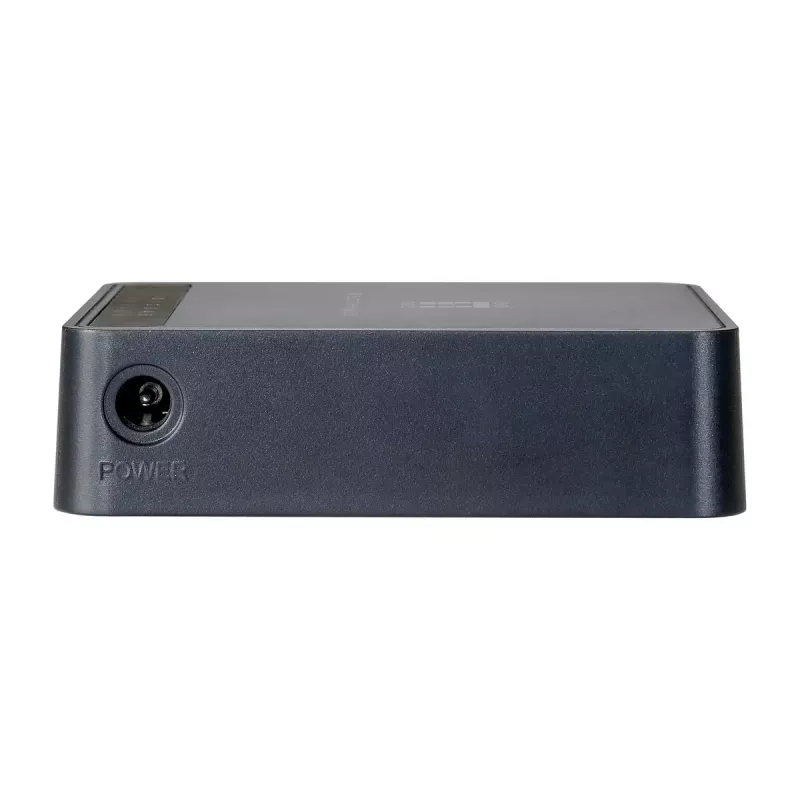

• Power: 5V / 0.6A
• Dimensions: 89 x 86 x 23 mm
• Weight: 1 kg

How to use

Place the FEU-0512 on a stable surface and connect the included power adapter to a suitable power outlet. Use standard Ethernet cables to connect devices to any of the five 10/100BASE-TX ports; the auto-MDI/MDIX feature removes the need for crossover cables. The switch operates as Plug and Play—no configuration is required. Monitor network activity via device LEDs and connect to a router or server as needed.

Recommendations

Use the switch in small office or home networks where additional Ethernet ports are required. Ensure adequate ventilation around the device and use a properly rated 5V/0.6A power supply. For larger networks or managed features, consider an upgrade to a managed switch.
