Descrizione

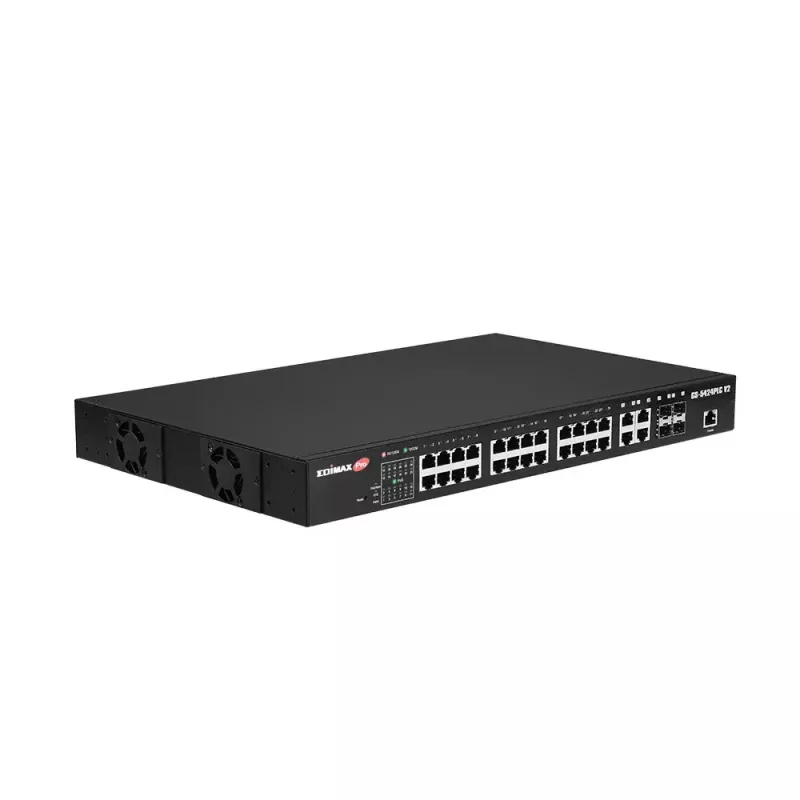

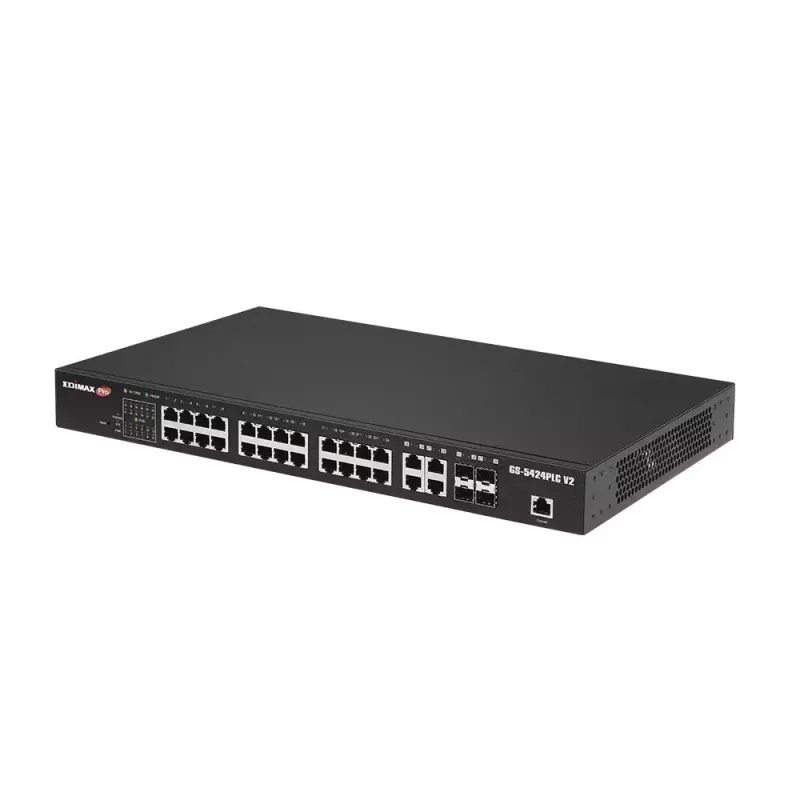

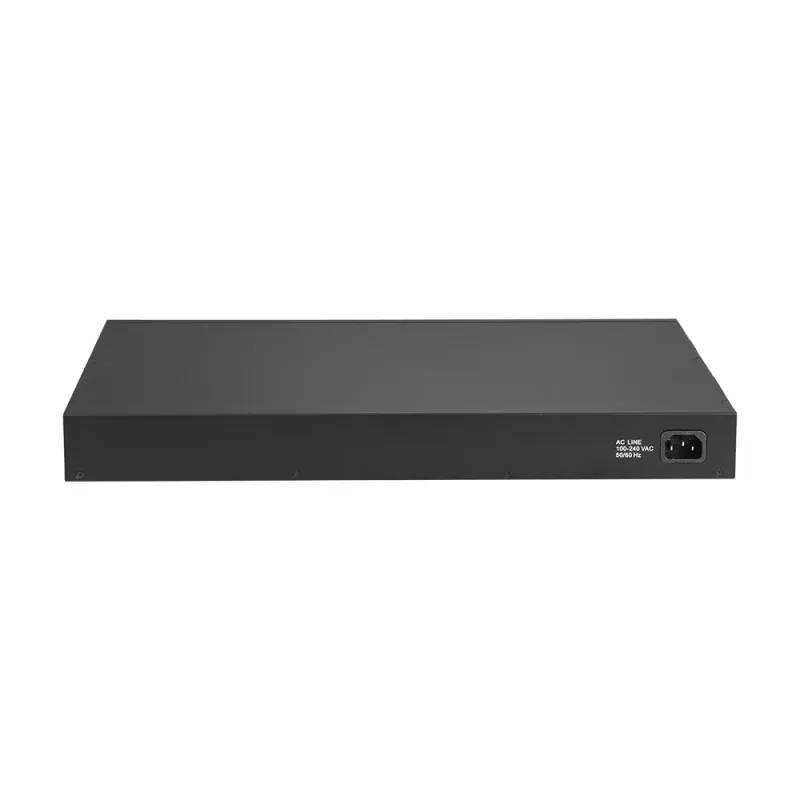

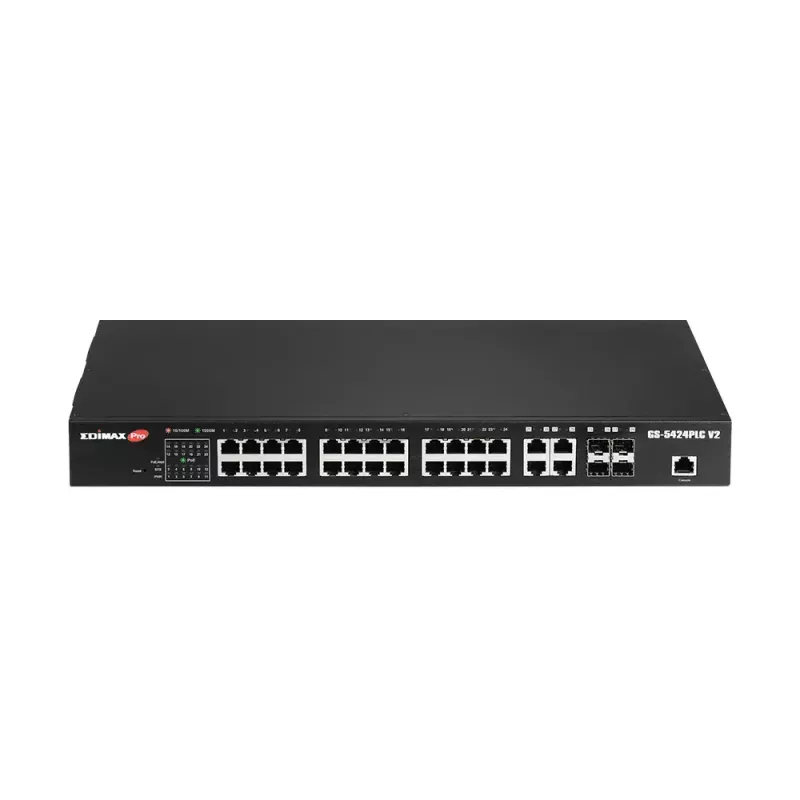

The Managed Switch Edimax GS-5424PLC V2 is a 1U rack-mountable managed Gigabit Ethernet switch with 28 RJ-45 ports and Power over Ethernet (PoE) support. It delivers a switching capacity of 56 Gbps, a forwarding rate of 41.6 Mpps and an 8000-entry MAC address table. The switch complies with multiple IEEE networking standards and includes long-range PoE mode, dual firmware storage for failover, and power backfeed protection to maintain reliable operation in surveillance and enterprise networks.

Advantages

The GS-5424PLC V2 supports ONVIF Profile Q for simplified discovery and configuration of compatible security devices, enabling quicker deployment of IP cameras and other ONVIF-compliant equipment. With a 56 Gbps backplane and 41.6 Mpps forwarding rate, it ensures high-throughput packet handling. Built-in power backfeed protection and per-port PoE detection reduce the risk of damage from non-standard PSEs, while dual firmware storage provides a robust failover mechanism. Long-range mode extends PoE data and power delivery up to 200 meters at 10 Mbps full-duplex on a per-port basis for remote device connections.

Suitable for

  • IP camera and video surveillance systems using ONVIF-compatible devices
  • PoE-enabled access points, VoIP phones and remote IoT devices
  • Managed network environments requiring VLAN, QoS and IEEE-compliant features
  • 1U rack deployments in small-to-medium enterprise or branch office networks

Key specifications

  • Model: Edimax GS-5424PLC V2
  • Ports: 28 x Gigabit Ethernet (10/100/1000) RJ-45
  • Switch type: Managed
  • Switching capacity: 56 Gbit/s
  • Forwarding rate: 41.6 Mpps
  • MAC address table: 8000 entries
  • PoE: supported with per-port power backfeed protection and PoE detection
  • Long-range PoE mode: up to 200 meters (10 Mbps full-duplex, per-port)
  • Networking standards: IEEE 802.3af/at, 802.3u/ab/az/z, 802.3x, 802.1x/w/p/Q/D
  • Form factor: 1U rack-mountable; colour: black; weight: 4.45 kg
  • MPN/EAN: GS-5424PLC V2 / 4717964704276

How to use

Install the GS-5424PLC V2 into a standard 1U rack and connect uplink and access devices to the Gigabit RJ-45 ports. Use the management interface to configure VLANs, QoS, ONVIF discovery settings and PoE parameters. For ONVIF-enabled security devices, enable Profile Q discovery on the switch and follow the device discovery workflow in the management UI or NMS. If long-range connection is required, enable long-range PoE mode on the specific ports; note that long-range operation reduces link speed to 10 Mbps full-duplex.

Recommendations

For reliable PoE deployments, verify connected devices are within the supported power budget and enable per-port PoE detection; use long-range mode only when necessary for remote devices and expect reduced link speed. Keep firmware updated and store a backup firmware image to enable quick failover if the active firmware encounters issues.
Punti salienti
  • IP camera and video surveillance systems using ONVIF-compatible devices
  • PoE-enabled access points, VoIP phones and remote IoT devices
  • Managed network environments requiring VLAN, QoS and IEEE-compliant features
  • 1U rack deployments in small-to-medium enterprise or branch office networks
  • Model: Edimax GS-5424PLC V2
  • Ports: 28 x Gigabit Ethernet (10/100/1000) RJ-45
  • Switch type: Managed
  • Switching capacity: 56 Gbit/s
  • Forwarding rate: 41.6 Mpps
  • MAC address table: 8000 entries
  • PoE: supported with per-port power backfeed protection and PoE detection
  • Long-range PoE mode: up to 200 meters (10 Mbps full-duplex, per-port)
  • Networking standards: IEEE 802.3af/at, 802.3u/ab/az/z, 802.3x, 802.1x/w/p/Q/D
  • Form factor: 1U rack-mountable; colour: black; weight: 4.45 kg
  • MPN/EAN: GS-5424PLC V2 / 4717964704276

Specifiche

Specifiche
Aggregazione di link
Sì
Algoritmi di scheduling delle code
Weighted Round Robin (WRR), WRR+SP, SP
Alimentatore incluso
Sì
Alimentazione via Ethernet (PoE)
Sì
Altezza
45 mm
Capacità di commutazione
56 Gbit/s
Codice Sistema Armonizzato (HS)
85176990
Colore del prodotto
Nero
Consumo energetico (max.)
400 W
Duplex completo
Sì
Duplicazione delle porte
Sì
Firmware aggiornabile
Sì
Formato
1U
Frequenza di ingresso CA
50 - 60
Funzionalità VLAN
Voice VLAN, Port-based VLAN, MAC address-based VLAN
Funzioni DHCP
DHCP snooping
Gestione via web
Sì
IGMP snooping
Sì
Impilabile
No
Indicatori LED
Stato, alimentazione, collegamento
Ispezione ARP
Sì
Jumbo frame
9000
Larghezza
270 mm
Limitazione della velocità
Sì
Lista di controllo degli accessi (ACL)
Sì
Manuale
Sì
Memoria buffer dei pacchetti
4.1 MB
Memorizzazione e inoltro
Sì
Modellamento del traffico
Sì
Montaggio su rack
Sì
Numero di alimentatori
1
Numero di code
8
Numero di linee
8
Numero di porte Ethernet RJ-45 di commutazione di base
28
Numero di porte Gigabit Ethernet (rame)
28
Numero di porte SFP combo
4
Numero di ventole
2 ventole
Numero di VLAN
200
Peso
4.45 kg
Potenza Power over Ethernet (PoE) per porta
30 W
Profondità
441 mm
Protocollo di registrazione VLAN GARP (GVRP)
Sì
Protocollo Spanning Tree
Sì
Pulsante di reset
Sì
Registro eventi di sistema
Sì
Standard di rete
IEEE 802.3af, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3at, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D
Supporto 10G
No
Supporto controllo di flusso
Sì
Supporto jumbo frame
Sì
Supporto Quality of Service (QoS)
Sì
Supporto VLAN
Sì
Tabella indirizzi MAC
8000 voci
Tecnologia di cablaggio Ethernet in rame
1000BASE-T, 1000BASE-SX, 1000BASE-LX, 100BASE-TX, 10BASE-T
Temperatura di esercizio (T-T)
0 - 50
Temperatura di stoccaggio (T-T)
-40 - 70
Tensione di ingresso CA
100 - 240
Tipo di autenticazione
RADIUS, AAA
Tipo di porte Ethernet RJ-45 di commutazione di base
Gigabit Ethernet (10/100/1000)
Tipo di switch
Gestito
Umidità relativa di esercizio (H-H)
10 - 90
Umidità relativa di stoccaggio (H-H)
10 - 90
Velocità di inoltro
41,6 Mpps
Velocità di inoltro pacchetti (1 Gbps)
1488000 pps
Velocità di inoltro pacchetti (10 Mbps)
14880 pps
Velocità di inoltro pacchetti (100 Mbps)
148800 pps
Velocità di trasferimento Ethernet LAN
10, 100, 1000
