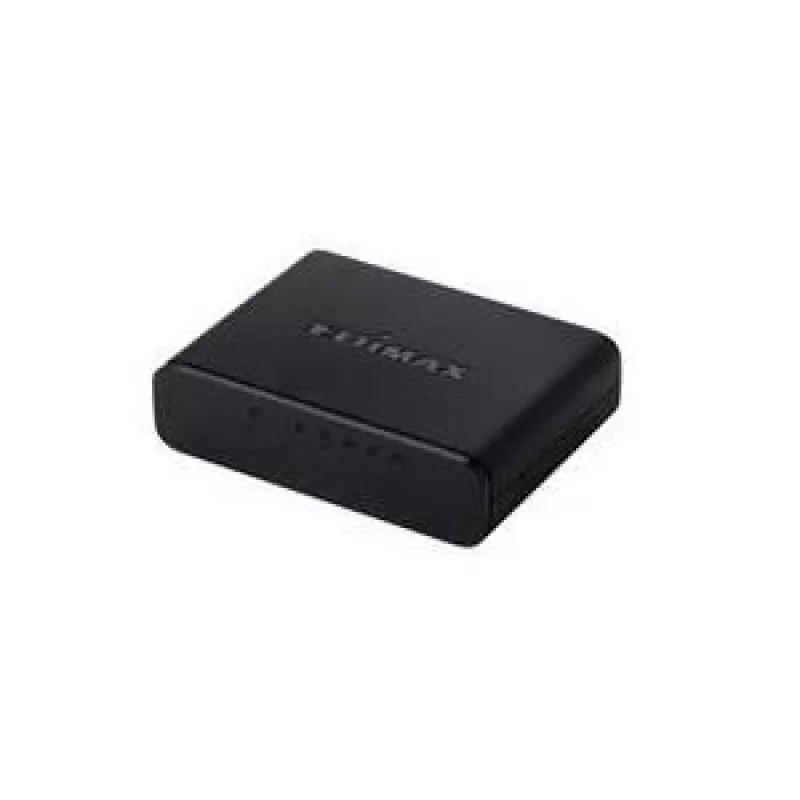

Switch non gestito Edimax ES-3305P

The Unmanaged Switch Edimax ES-3305P is a compact 5-port 10/100 Mbps desktop Ethernet switch designed for SOHO and small home networks. It provides plug-and-play connectivity for devices such as PCs, NAS, print servers, smart TVs and game consoles, using store-and-forward packet switching to ensure reliable data transfer and wire-speed performance while keeping a small footprint on the desk.

Advantages

The ES-3305P delivers non-blocking wire-speed forwarding on all five RJ-45 ports and supports Auto-Negotiation for automatic 10/100 Mbps and half/full-duplex detection. Its store-and-forward architecture filters fragments and CRC error packets for reliable transfers. The switch is IEEE802.3az Energy Efficient Ethernet compliant and implements inactive link detection and cable-length detection to reduce power consumption.

Suitable for

• Connecting multiple wired devices in a small office or home (PCs, NAS, printers)
• Extending a router or modem Ethernet ports for streaming and online gaming
• Providing simple unmanaged network connectivity without configuration

Key specifications

• Model: Edimax ES-3305P (ES-3305P V1)
• Port count: 5 × RJ-45 10/100 Mbps ports
• Switch type: Unmanaged
• Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az (EEE)
• MAC address table: 1000 entries
• Power: DC 5V (DC-in jack)
• Colour: Black
• Weight: 0.092 kg
• EAN: 4710700929247

How to use

Place the ES-3305P on a stable flat surface near your router or modem. Connect one RJ-45 port to your router or cable/ADSL modem with an Ethernet cable. Connect other devices—computers, NAS, printers, game consoles or smart TVs—to the remaining ports. Power the switch with the supplied 5V DC adapter. The device operates plug-and-play with no manual configuration required; LED indicators show port and switch status.

Recommendations

For best energy savings, keep unused devices powered off or disconnected so the switch can reduce power to inactive ports; use appropriate cable lengths to benefit from cable-length power adjustment. Ensure adequate ventilation around the switch and place it away from heat sources.
