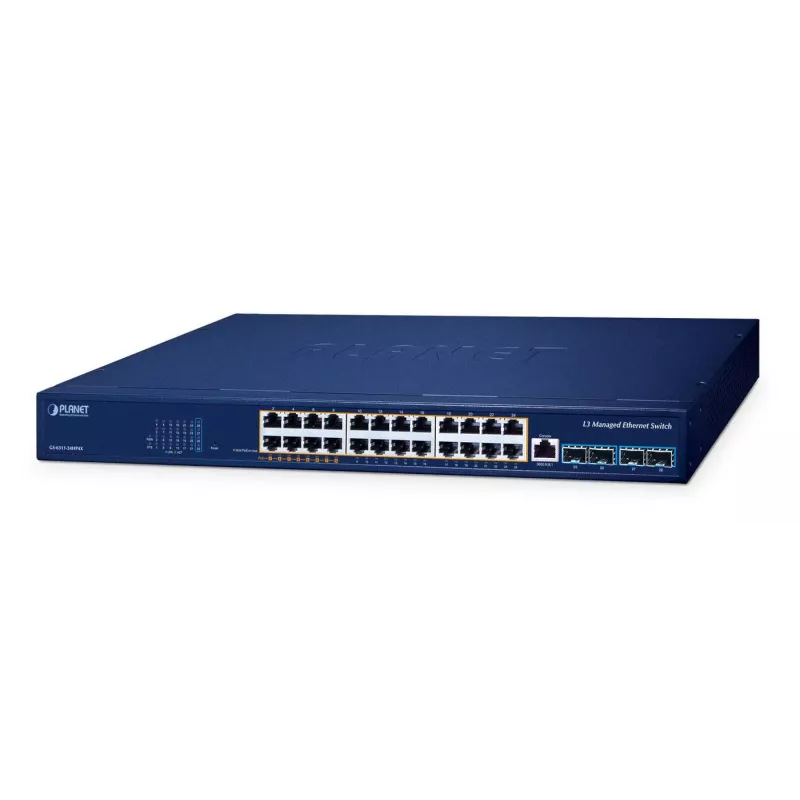

Switch gestito PLANET GS-6311-24HP4X L3 Gigabit Ethernet 24 porte PoE

PLANET GS-6311-24HP4X is a Managed Layer 3 Gigabit Ethernet switch with 24 Gigabit RJ-45 ports and four 1G/10G SFP+ fiber slots. Ports 1–8 support IEEE 802.3bt PoE++ and ports 9–24 provide IEEE 802.3at PoE+ injector function, with a total PoE budget up to 480 watts. The switch offers 128 Gbps switching capacity, 10Gbps uplink capability, Layer 3 static routing plus RIP and OSPF support, and enterprise-grade security and traffic control for surveillance, VoIP and high-bandwidth server connections.

Advantages

The GS-6311-24HP4X combines high PoE power delivery and Gigabit port density with four SFP+ 10Gbps-capable uplinks, enabling extended fiber links and non-blocking 128Gbps switching fabric. It supports advanced Layer 2–Layer 4 traffic management (WRR, ACLs), robust multicast handling, IPv6 management, and comprehensive security features including 802.1x, DHCP Snooping, IP Source Guard and Dynamic ARP Inspection. Redundant ring technologies (G.8032 ERPS) and MSTP ensure fast recovery and high availability.

Suitable for

• IP surveillance networks with PoE cameras (IR, PTZ, speed-dome, box cameras)
• VoIP deployments and enterprise telephony
• WLAN controller backhaul and access point aggregation
• SMB and enterprise edge switches requiring high-density PoE and 10Gb uplinks
• Multi-tenant or multi-service networks needing Layer 4 traffic control and ACLs

Key specifications

• Ports: 24 × 10/100/1000BASE-T RJ-45 (ports 1–8: 802.3bt PoE++; ports 9–24: 802.3at PoE+ injector)
• SFP+: 4 × 1G/10GBASE-X SFP+ slots (dual-speed)
• PoE power budget: up to 480 W
• Switching capacity: 128 Gbps
• Layer 3: static routing, RIP, OSPF
• Security: ACL (L2–L4), 802.1x, RADIUS, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
• Multicast: IGMPv1/v2/v3 snooping, MLD v1/v2 snooping, MVR
• Redundancy: ITU-T G.8032 ERPS, MSTP (802.1s)
• Management: Web GUI, console, Telnet, SNMPv3, SSHv2
• Weight: 3.542 kg

How to use

Install the GS-6311-24HP4X in a standard 19-inch rack and connect uplink fiber or copper to the SFP+ or RJ-45 ports. Connect PoE cameras, access points or VoIP phones to the RJ-45 ports; the switch will supply power automatically according to PoE standards. Configure network settings using the web-based GUI, console or SSH/Telnet for CLI access. Set up VLANs, Layer 3 routes, QoS/WRR and ACLs as required, and deploy RIP or OSPF if dynamic routing between subnets is needed.

Recommendations

For reliable PoE operation, plan PoE power allocation per port according to device requirements and keep the total connected PoE load within the 480 W budget. Use the PoE schedule and PD alive-check features to reduce power consumption and automatically reset unresponsive devices. For long-distance or high-throughput uplinks, select appropriate SFP/SFP+ transceivers (1000BASE or 10GBASE) and enable redundant ring or MSTP to improve availability.
