Switch gestito Ubiquiti UniFi Pro HD 24 2.5G Ethernet 22 porte

Ubiquiti UniFi Pro HD 24 is a managed Layer 2/Layer 3 switch offering a mix of multi-gigabit and 10G connectivity: 22 RJ-45 2.5 GbE ports, two 10 GbE copper ports, and four 10G SFP+ fiber ports. Designed for enterprise environments, the switch delivers a switching capacity of 230 Gbit/s, a MAC address table of 32,000 entries, IEEE 802.1x support and a 1U rack-mount form factor.

Advantages

The switch provides high port density of 2.5G Ethernet alongside dedicated 10G copper and SFP+ ports to support bandwidth-hungry devices. Managed L2/L3 feature set enables network segmentation and access control while IEEE 802.1x compatibility supports secure authentication. A 230 Gbit/s switching capacity and a 32,000-entry MAC table ensure stable performance in medium to large deployments.

Suitable for

• Enterprise access layer in wired networks
• Aggregation switch for high-throughput uplinks
• Small to medium data closets and 1U rack deployments
• Environments requiring IEEE 802.1x authentication

Key specifications

• Switch type: Managed L2/L3
• RJ-45 ports: 22 × 2.5G Ethernet (100/1000/2500)
• 10G copper ports: 2 × 10 GbE
• 10G SFP+ ports: 4 × 10G SFP+
• Switching capacity: 230 Gbit/s
• MAC address table: 32,000 entries
• Networking standards: IEEE 802.1x
• Form factor: 1U rack-mount
• Weight: 4.2 kg
• Colour: Grey

How to use

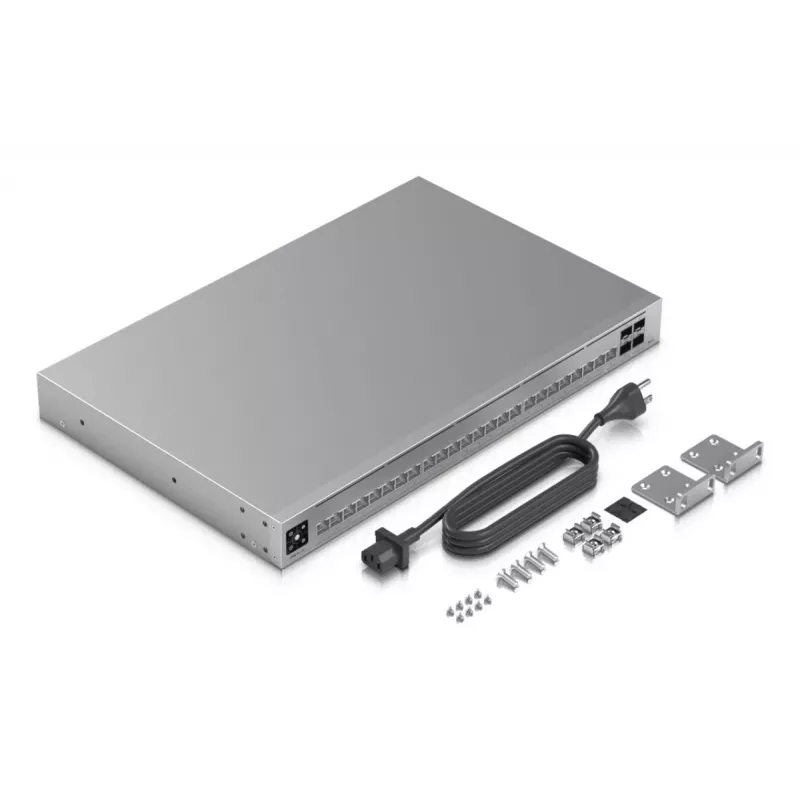

Install the UniFi Pro HD 24 in a standard 19" rack using the included rack-mount brackets. Connect edge devices to the 22 2.5G RJ-45 ports and use the two 10 GbE copper or four 10G SFP+ ports for uplinks to core switches or servers. Configure L2/L3 features, VLANs and IEEE 802.1x authentication through the UniFi Network management interface or compatible controller software. Ensure proper cooling and power connections per the installation guide.

Recommendations

For balanced performance, place latency-sensitive servers and uplinks on the 10G ports or SFP+ ports, and use the 2.5G ports for high-density client connections. Keep firmware updated and follow rack-space ventilation best practices to maintain reliable operation.
