Switch KVM ATEN KA7189-AX

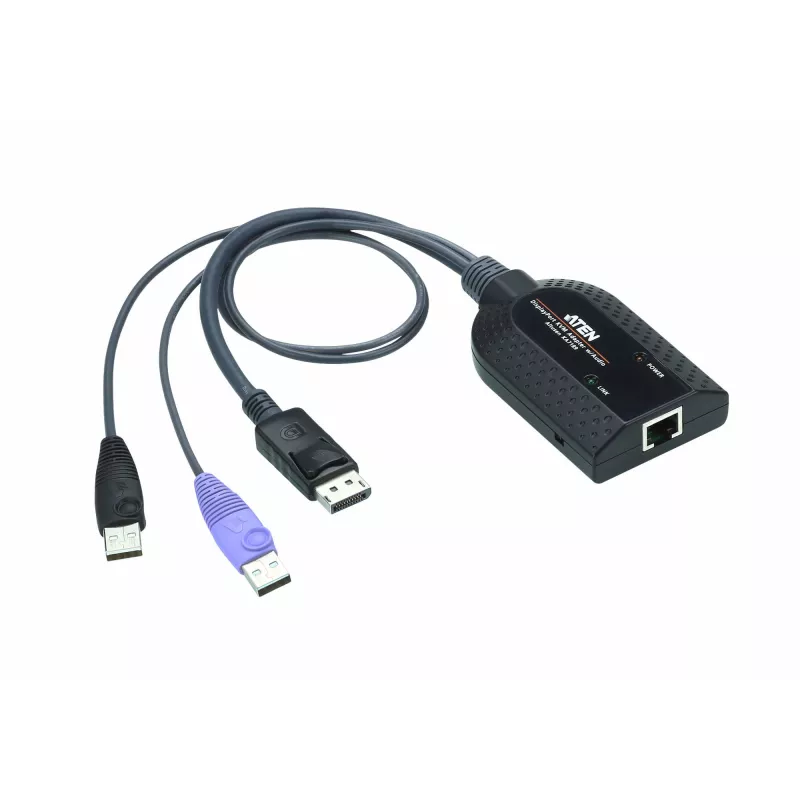

The ATEN KA7189 KVM Adapter Cable connects a KVM switch to a target computer using DisplayPort for video and dual USB connectors for peripheral and management functions. It enables DisplayPort video output while providing two USB plugs to support keyboard and mouse, Virtual Media, or Smart Card/CAC Reader functions when paired with a compatible ATEN KVM switch.

Advantages

The cable supports DisplayPort video together with USB data connections in a single adapter, reducing cable clutter and simplifying workstation setup. It is compatible with ATEN KVM solutions that require virtual media or smart card reader support, and its compact design and lightweight construction make it easy to route and connect inside racks or desktop environments.

Suitable for

• Connecting a computer to an ATEN KVM switch for keyboard and mouse control
• Enabling Virtual Media access and file transfer between a console and target computer
• Providing Smart Card/CAC Reader connectivity through a KVM setup

Key specifications

• Model: KA7189
• Video interface: DisplayPort output
• USB: Two USB plugs for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader
• Compatible with: ATEN KVM switches that support DisplayPort and USB peripheral passthrough
• Colour: Purple/Black
• Weight: 0.12 kg

How to use

Plug the DisplayPort connector into the target computer's DisplayPort output and insert the two USB connectors into the computer's USB ports. Connect the adapter cable's other end to the corresponding port on the ATEN KVM switch. Once connected, follow the KVM switch's instructions to assign the target port and enable Virtual Media or Smart Card functions if required.

Recommendations

Use with ATEN KVM switches that explicitly list KA7189 or DisplayPort/USB adapter compatibility. Ensure the target computer's drivers for Virtual Media or Smart Card readers are installed for full functionality. Avoid excessive bending of connectors and secure cables to prevent strain.
