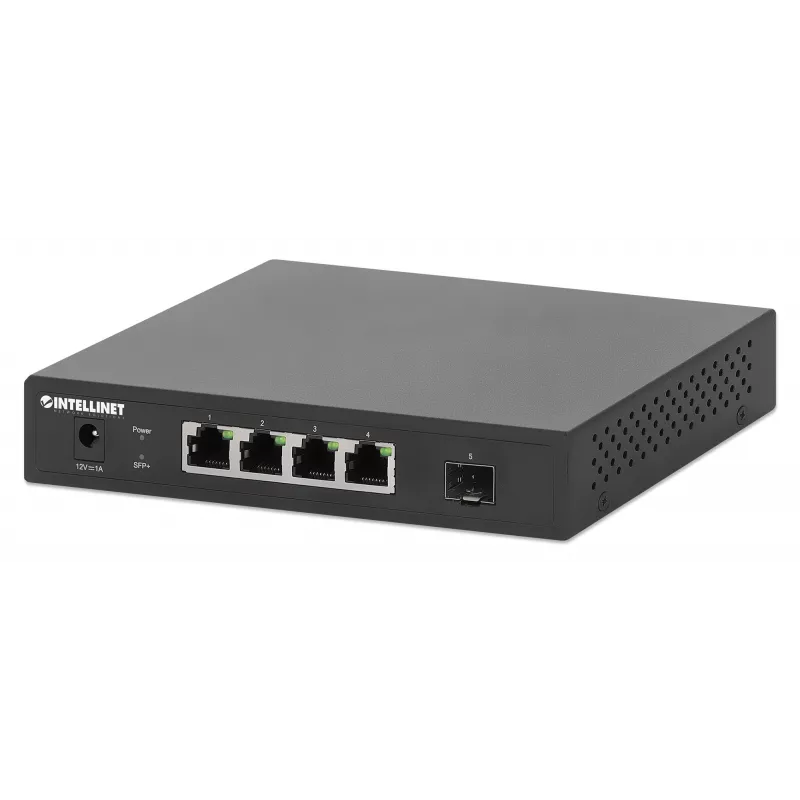

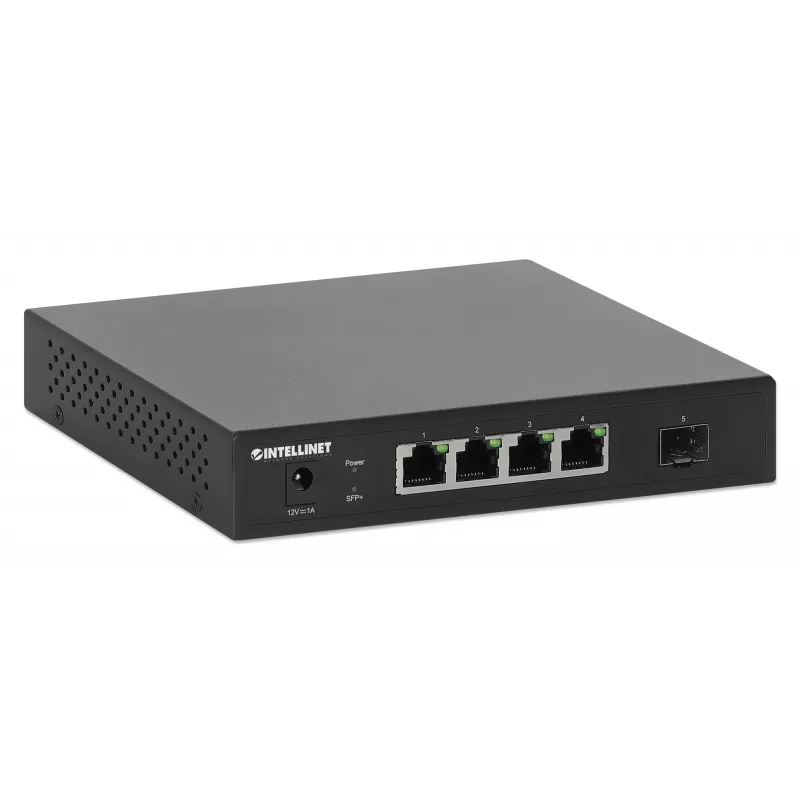

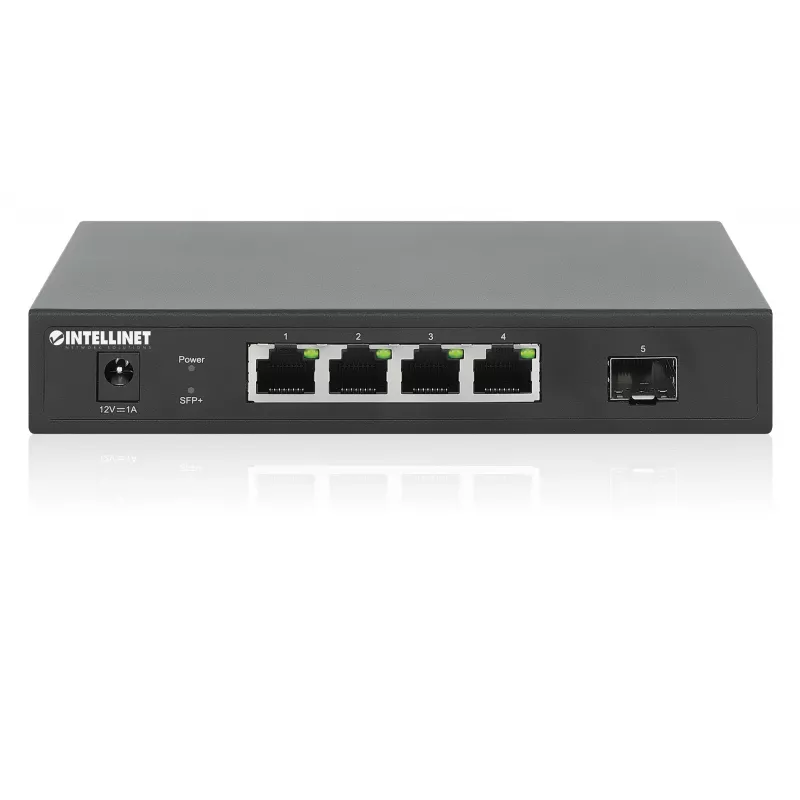

The Intellinet 562058 is an unmanaged 5‑port desktop network switch with four 2.5G copper Ethernet ports and one SFP+ uplink slot supporting up to 10 Gbps. It supports 10/100/1000/2500 Mbps on the copper ports and accepts standard 1G SFP modules as well as 10G SFP+ optics, making it suitable for home and small office networks that need higher-than-gigabit throughput without configuration complexity.

Advantages

This compact switch eliminates common bottlenecks by providing multi‑gigabit (2.5G) connectivity for Wi‑Fi 6 access points and other high‑bandwidth devices, while the SFP+ uplink allows aggregation to 10 Gbps backbones or direct connections to servers and NAS. As an unmanaged device it requires no configuration, offers plug‑and‑play installation, and the black desktop design fits standard small office environments.

Suitable for

  • Connecting Wi‑Fi 6 (802.11ax) access points requiring >1 Gbps
  • Small office or home networks needing higher throughput
  • Linking servers, NAS or NVRs to a 10G uplink
  • Extending a network where simple plug‑and‑play switches are preferred

Key specifications

  • Ports: 4 x 2.5GBASE‑T copper, 1 x SFP+ (10G/1G)
  • Data rates supported: 10/100/1000/2500 Mbps on copper; 1G/10G on SFP/SFP+
  • Switch type: Unmanaged
  • Form factor: Desktop, black
  • Brand/Model: INTELLINET, MPN 562058, EAN 0766623562058

How to use

Place the switch on a flat surface and connect its power supply. Use standard Ethernet cables to connect devices to the 2.5G copper ports; install a compatible SFP or SFP+ transceiver in the uplink slot if a fiber or 10G connection is required. The switch operates in unmanaged mode so connected devices will negotiate link speeds automatically and traffic will pass without additional configuration.

Recommendations

For optimal performance, connect high‑bandwidth devices such as Wi‑Fi 6 access points, NAS units or servers to the 2.5G ports and use a 10G SFP+ uplink when aggregating traffic to a backbone or high‑speed storage. Use Cat5e or better cabling for 2.5G links and ensure compatible SFP/SFP+ modules are used for the uplink.

Punti salienti
  • Four ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
  • 10/100/1000/2500 Mbps auto-sensing ports that automatically detect optimal network speeds
  • One small-form-factor pluggable SFP/SFP+ module slot for 10G uplink capability
  • 40 Gbps switch fabric / switching capacity
  • Backward compatible with 10/100/1000 Mbps devices
  • Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
  • Supports jumbo frames up to 12 kBytes
  • Store and forward switching architecture
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Supports 4k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 8.1 Mbits
  • Compact desktop format with rugged metal housing

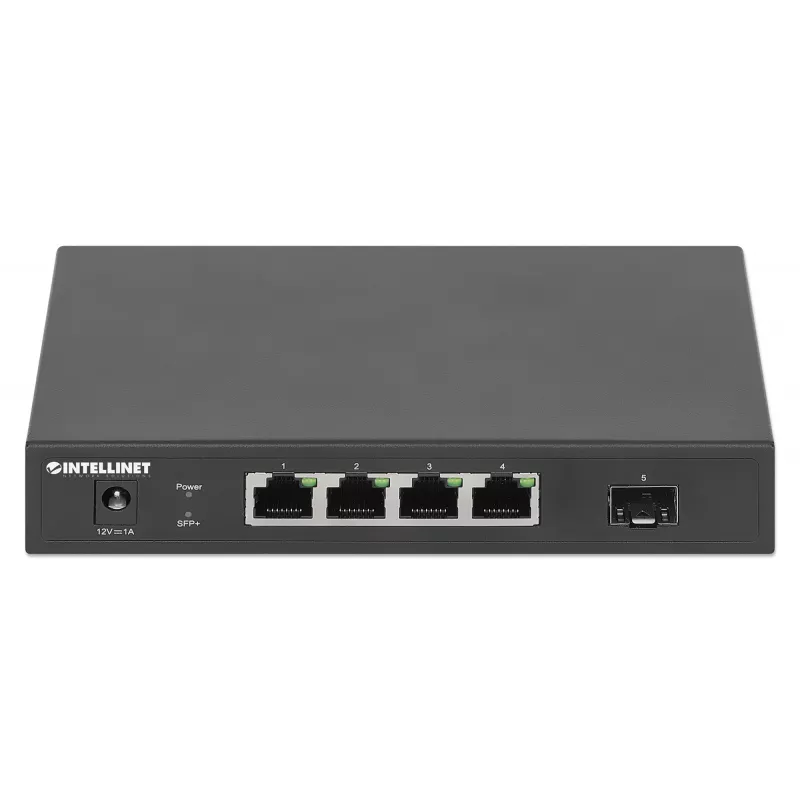

  • LEDs for power and link/activity
  • Fanless design for silent operation
  • Desktop-size metal case

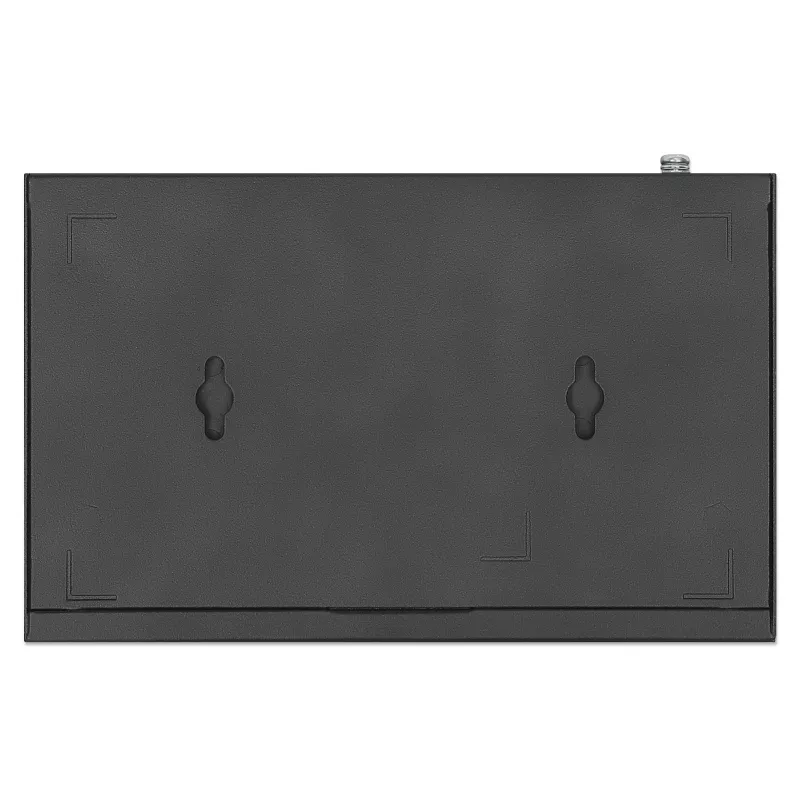

  • Built-in wall-mounting holes and four rubber feet for desktop use
  • Fully NDAA-compliant
  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T
  • MAC address table: 4000 entries Switching capacity: 40 Gbit/s

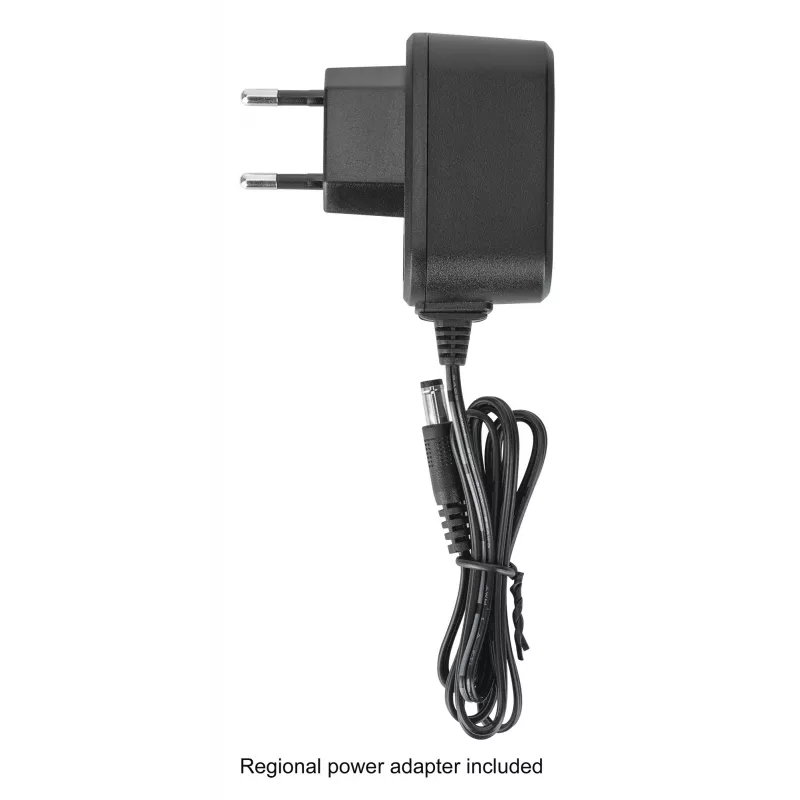

  • DC Power supply included

Specifiche

Specifiche
Alimentatore incluso
Sì
Alimentazione
DC
Alimentazione via Ethernet (PoE)
No
Altezza
28 mm
Altezza cartone esterno
328 mm
Altezza confezione
68 mm
Apprendimento automatico degli indirizzi MAC supportato
Sì
Auto MDI/MDI-X
Sì
Capacità di commutazione
40 Gbit/s
Cavi inclusi
AC
Certificati di conformità
CE, RoHS
Certificazione
FCC, CE, RoHS, UKCA
Colore del prodotto
Nero
Connettore di alimentazione
Jack di ingresso CC
Consumo energetico (tipico)
12 W
Corrente in ingresso
1 A
Duplex completo
Sì
Frequenza di ingresso CA
50/60 Hz
Indicatori LED
Attività, collegamento, alimentazione
Invecchiamento automatico degli indirizzi MAC supportato
Sì
Jumbo frame
12000
Larghezza
162 mm
Larghezza cartone esterno
360 mm
Larghezza confezione
153 mm
Lunghezza cartone esterno
375 mm
Manuale
Sì
Materiale della scocca
Metallo
Memoria buffer dei pacchetti
8.1 MB
Memorizzazione e inoltro
Sì
Montabile a parete
Sì
Montaggio su rack
No
Negoziazione automatica
Sì
Numero di moduli SFP installati
0
Numero di moduli SFP+ installati
0
Numero di porte Ethernet 2,5G (rame)
4
Numero di porte Ethernet RJ-45 di commutazione di base
4
Numero di slot per moduli SFP+
1
Periodo di garanzia
3 anni
Peso
400 g
Peso confezione
600 g
Peso lordo cartone esterno
13.2 kg
Prodotti per cartone esterno
20 pc(s)
Profondità
102 mm
Profondità confezione
179 mm
Rilevamento automatico
Sì
Semiduplex
Sì
Senza ventola
Sì
Standard di rete
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Supporto 10G
No
Supporto controllo di flusso
Sì
Supporto jumbo frame
Sì
Tabella indirizzi MAC
4000 voci
Tecnologia di cablaggio Ethernet in rame
10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T
Temperatura di esercizio (T-T)
0 - 40 °C
Temperatura di stoccaggio (T-T)
-40 - 70 °C
Tensione di ingresso CA
100 - 240 V
Tensione di ingresso CC
12 V
Tipi di cavi supportati
Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a
Tipo di imballaggio
Scatola
Tipo di porte Ethernet RJ-45 di commutazione di base
Ethernet 2,5G (100/1000/2500)
Tipo di switch
Non gestito
Umidità relativa di esercizio (H-H)
10 - 90%
Umidità relativa di stoccaggio (H-H)
5 - 90%
Velocità di inoltro
29,76 Mpps
Velocità di trasferimento Ethernet LAN
10, 100, 1000, 2500 Mbit/s
