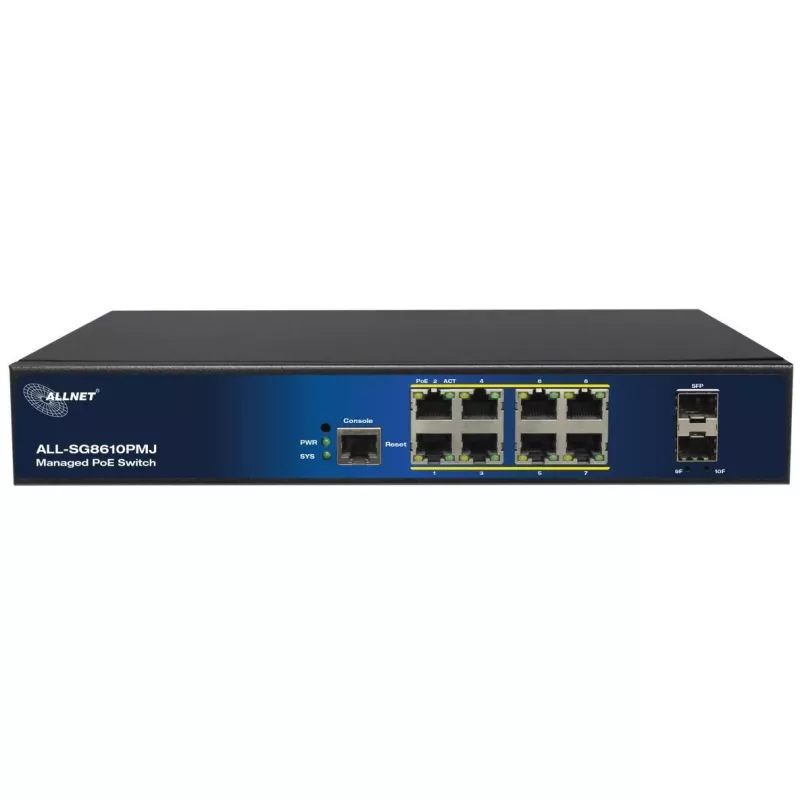

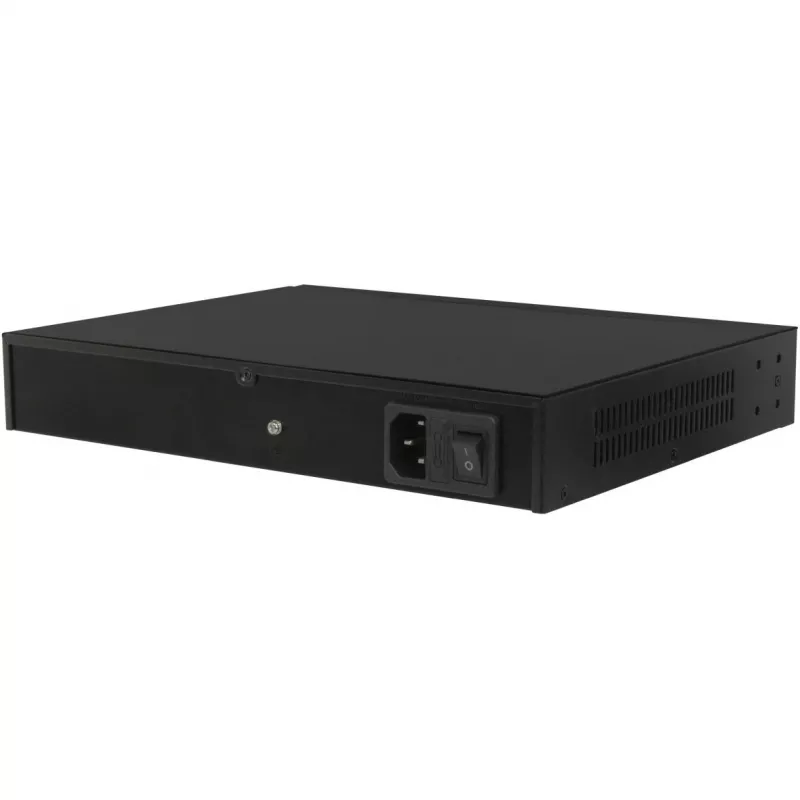

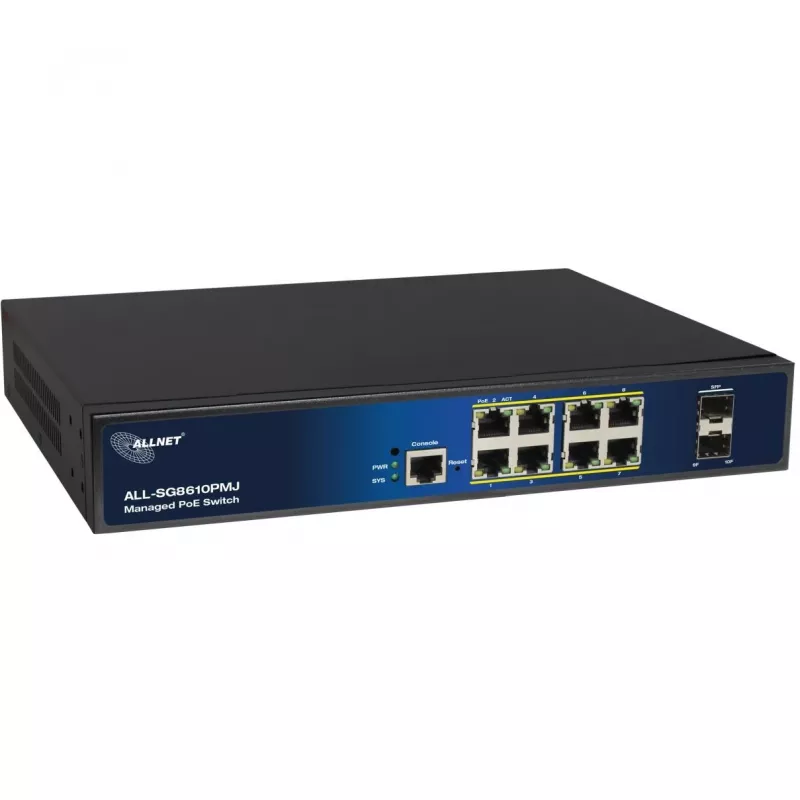

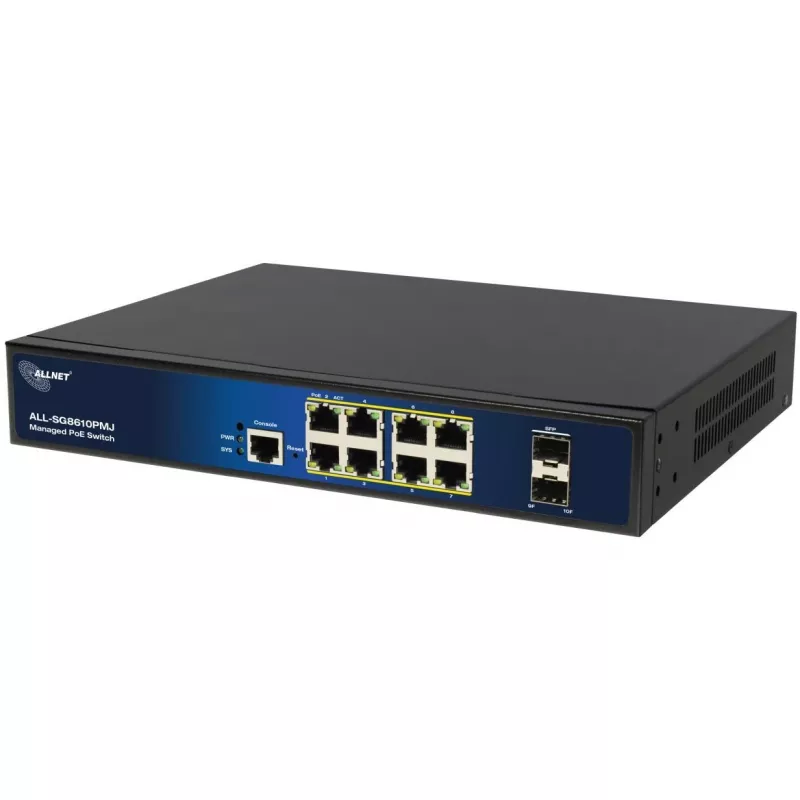

Switch PoE managed 10 porte ALLNET ALL-SG8610PMJ con 8 porte PoE+ e 2 porte uplink

The ALLNET ALL-SG8610PMJ is a managed 10-port Power over Ethernet (PoE) switch with eight PoE+ ports and two uplink ports. It delivers simultaneous data and power over a single Ethernet cable to connected devices, simplifying installation and reducing cabling requirements in small office, retail, and surveillance environments. The switch includes management features for traffic control and network monitoring, while the PoE+ capability supports higher-power devices such as PTZ cameras and access points.

Advantages

This managed PoE switch integrates power and network management in a compact 10-port form factor, enabling centralized deployment and simplified maintenance. Managed features allow for VLAN segmentation, QoS prioritization and port-level monitoring, while the eight PoE+ ports supply sufficient power to a range of IP devices. Two uplink ports provide flexible aggregation to core switches or routers, supporting structured network growth.

Suitable for

• Small and medium office networks requiring centralized power for IP phones and wireless access points
• Retail environments with PoE-enabled point-of-sale terminals and cameras
• Surveillance systems with multiple IP cameras, including models that need PoE+
• Network edge aggregation where managed switching and uplink ports are needed

Key specifications

• Port count: 10 ports total, including 8 PoE+ data/power ports and 2 dedicated uplink ports
• PoE standard: PoE+ (IEEE 802.3at) support on PoE ports
• Management: Layer 2 managed switch features such as VLAN, QoS and port monitoring
• Uplink options: two uplink ports for connection to core network devices
• Form factor: desktop or rackable compact design suitable for small deployment sites

How to use

Install the switch on a stable surface or mount it in a small rack according to site requirements. Connect the uplink ports to your router or aggregation switch using appropriate Ethernet cabling. Plug PoE-capable devices into the PoE+ ports to receive power and network connectivity over a single cable. Access the management interface to configure VLANs, QoS, and port settings, and to monitor power usage and traffic statistics. Ensure the total PoE budget is not exceeded by the connected devices.

Recommendations

Plan port allocation based on device power requirements and reserve uplink capacity for future expansion. Use the management features to segment traffic and set QoS for voice or video streams. Verify cable quality (Cat5e or better) and check cumulative PoE power draw to prevent overloads.
