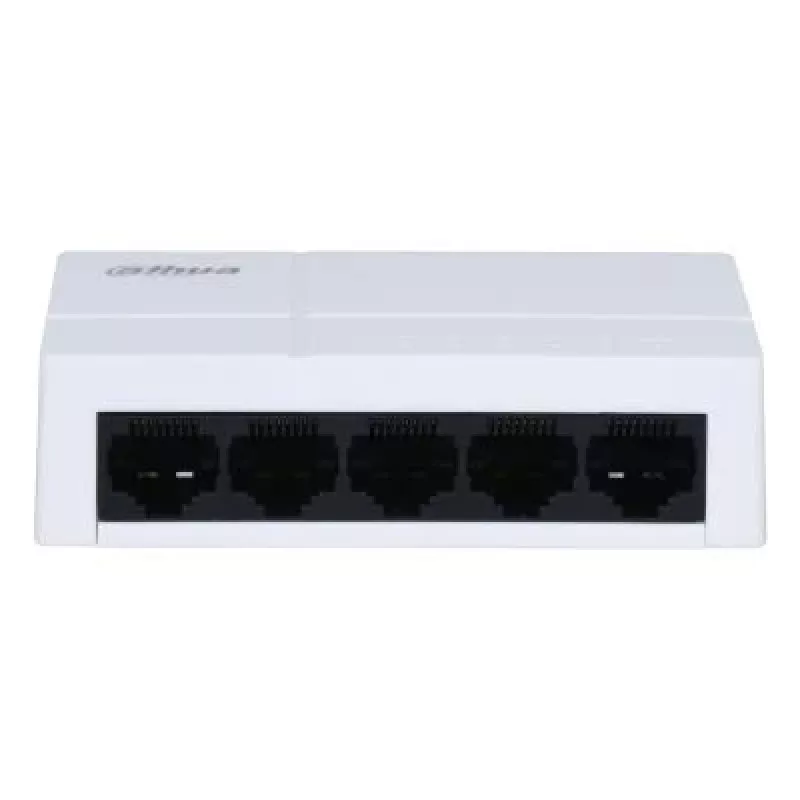

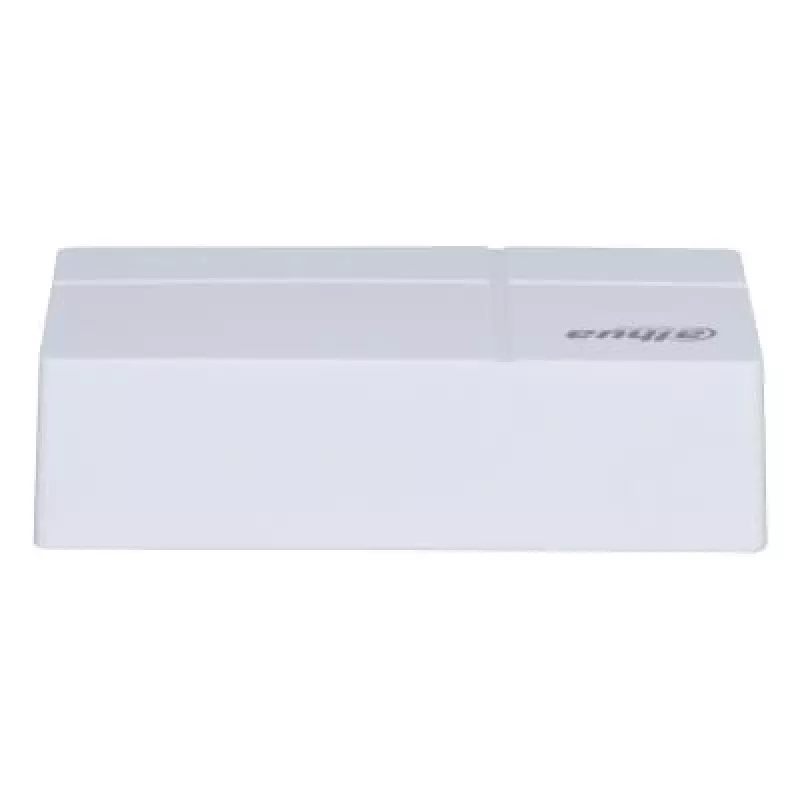

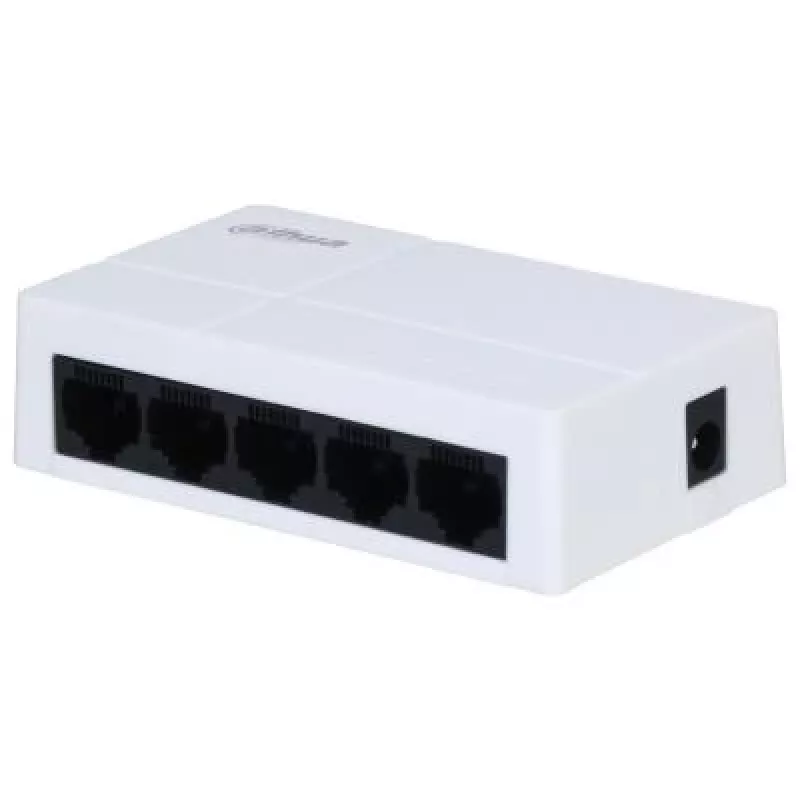

Gateway di rete DAHUA SG1005L-EUR 5 porte 10/100 Mbps con 1 uplink Gigabit

DAHUA SG1005L-EUR is a compact unmanaged network switch with five 10/100 Mbps Ethernet ports and one Gigabit uplink port. It provides plug-and-play wired connectivity for small office, retail or home networks and is intended for expanding LANs and connecting IP cameras, routers and workstations without configuration.

Advantages

The switch delivers stable wired connections with a switching capacity of 10 Gbps and a forwarding rate of 7.44 Mpps. Its compact dimensions and light weight make it easy to place in limited spaces, and the unmanaged design requires no setup — simply connect devices for immediate operation. The device operates reliably within an ambient temperature range from 0 °C to +45 °C.

Suitable for

• Small office LAN expansion
• Home network connectivity
• Connecting IP cameras and NVRs
• Retail point-of-sale and terminal connections

Key specifications

• Ports: 5 × 10/100 Mbps Ethernet ports, 1 × Gigabit uplink
• Switching capacity: 10 Gbps
• Forwarding rate: 7.44 Mpps
• Operating temperature: 0 °C to +45 °C
• Dimensions: 86.4 mm × 52.0 mm × 23.0 mm
• Net weight: 0.12 kg

How to use

Place the switch on a flat, ventilated surface near power and network connections. Connect the uplink Gigabit port to your router or modem, then connect devices such as IP cameras, computers or POS terminals to the 10/100 Mbps ports using Ethernet cables. Power the unit and verify link LEDs to confirm active connections. No software configuration is required.

Recommendations

Install the switch in a location with ambient temperature within the specified 0 °C to +45 °C range, protect it from moisture and direct heat sources, and use quality Ethernet cables for reliable performance.
