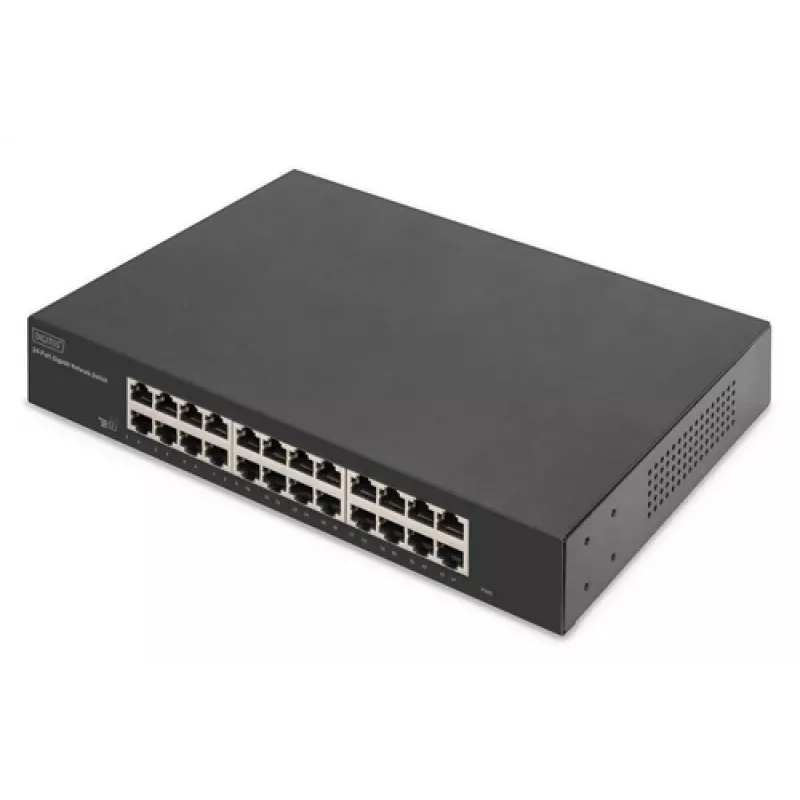

Switch unmanaged Digitus DN-80113-2 24 porte Gigabit Ethernet 19"

The DN-80113-2 24-port unmanaged switch provides a reliable gigabit network solution for small to medium-sized businesses. It features 24x 10/100/1000 Mbps RJ45 ports, fanless construction, and built-in protections for stable operation and efficient data transmission.

Advantages

The switch supports full-duplex and half-duplex flow control, Auto MDI/MDIX for simplified cabling, and intelligent wire-speed forwarding with store-and-forward processing. It complies with multiple IEEE standards for broad device compatibility, offers VLAN and CCTV support for improved network segmentation and monitoring, and consumes only 14.4 W total power for energy-efficient operation. The design includes overvoltage and electrostatic protection and comes with necessary installation accessories.

Key specifications

• Ports: 24 x 10/100/1000 Mbps RJ45
• Standards: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z, 802.3az
• Flow control: IEEE 802.3x full-duplex, backpressure half-duplex
• Auto MDI/MDIX: Yes
• Processing: Wire-speed forwarding, store-and-forward mode
• Power consumption: 14.4 W (total)
• Design: Fanless with overvoltage and electrostatic protection
• Included accessories: Power cable, rubber feet, rack mounting kit, screws, user manual

How to use

Place the switch on a flat surface or mount it in a rack using the supplied mounting kit. Connect network devices to the RJ45 ports with standard Ethernet cables; the Auto MDI/MDIX function automatically adjusts for straight or crossover connections. Connect the power cable, verify LEDs for port and power status, and configure connected devices as required. The switch operates plug-and-play with unmanaged behavior, so no additional software configuration is necessary.

Recommendations

For best performance, use Cat5e or Cat6 cables and ensure adequate ventilation around the device despite its fanless design. Regularly verify firmware and network device compatibility when expanding the network. Consider VLAN configuration on connected equipment for segmenting CCTV or sensitive traffic.
