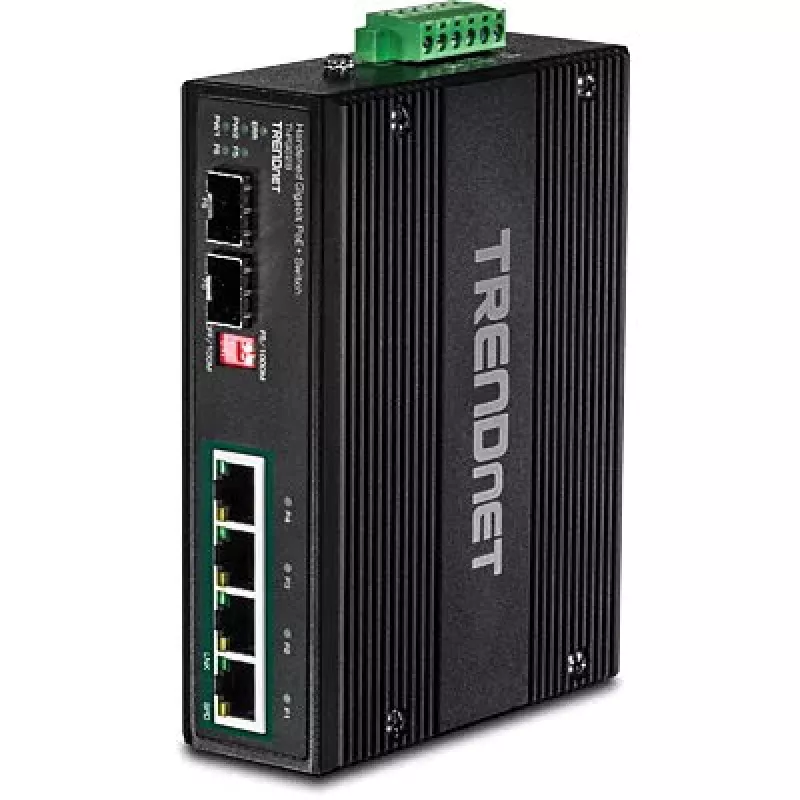

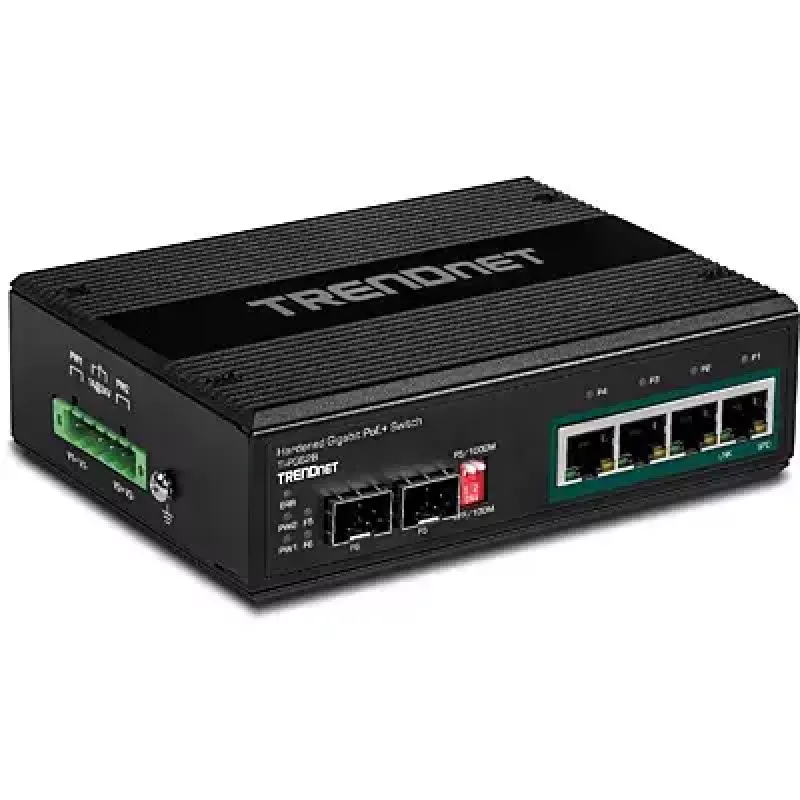

Switch unmanaged Trendnet TI-PG62B

The TRENDnet TI-PG62B is an unmanaged IP30 DIN-rail PoE+ switch designed for industrial environments. It provides four Gigabit Ethernet PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity in a compact, rugged black housing. Dual redundant 12–56 VDC power inputs and a power-failure alarm relay improve reliability for installations that require continuous operation.

Advantages

This unmanaged switch supports IEEE networking standards including 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, and PoE standards 802.3af/at. With four Gigabit PoE+ ports it can power connected devices over Ethernet, while two SFP slots enable fiber uplink flexibility. The unit’s IP30-rated rugged housing, DIN-rail mounting and dual power inputs make it suitable for harsh or space-constrained industrial deployments. A 1024-entry MAC address table and a 12 Gbps switching capacity ensure basic L2 performance for small to mid-size network segments.

Suitable for

• Powering IP cameras and wireless access points with PoE+
• Industrial and factory network segments requiring DIN-rail mounting
• Compact network extensions needing fiber uplinks via SFP
• Unmanaged Ethernet networks where simple plug-and-play operation is preferred

Key specifications

• Switch type: Unmanaged L2

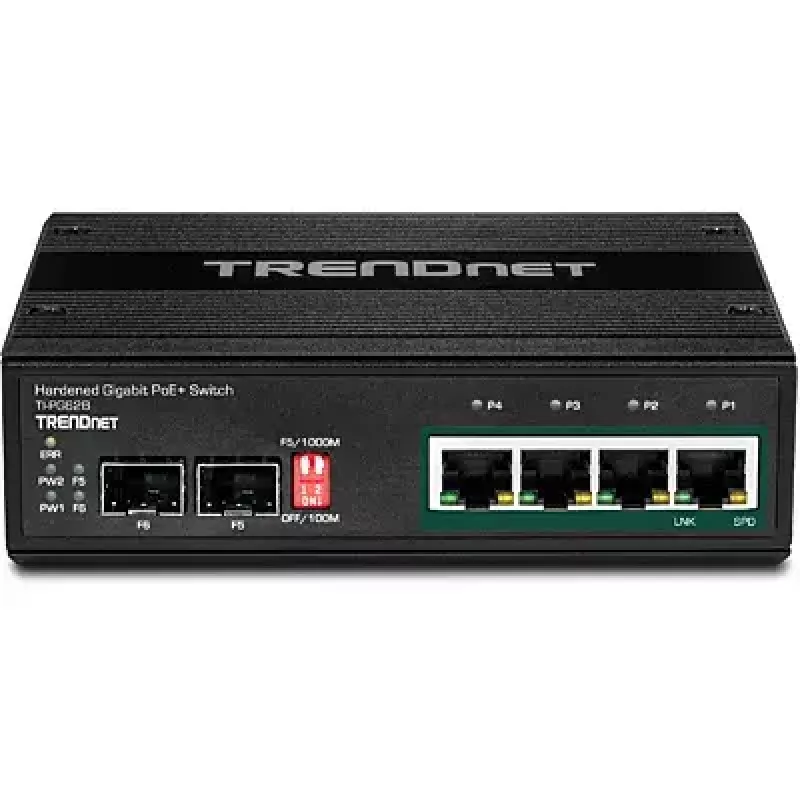

• Ports: 4 × Gigabit PoE+ (10/100/1000) RJ-45, 2 × SFP slots
• Switching capacity: 12 Gbps
• MAC address table: 1024 entries

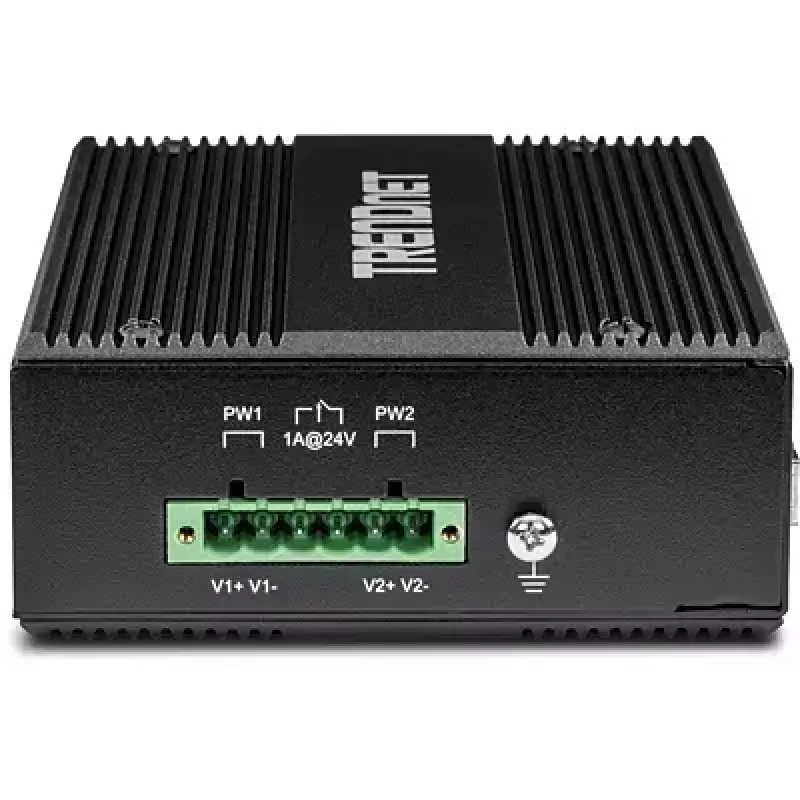

• Power inputs: Dual redundant 12–56 VDC
• Protection class: IP30 (industrial housing)
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af/at
• Colour: Black
• Weight: 0.7 kg

How to use

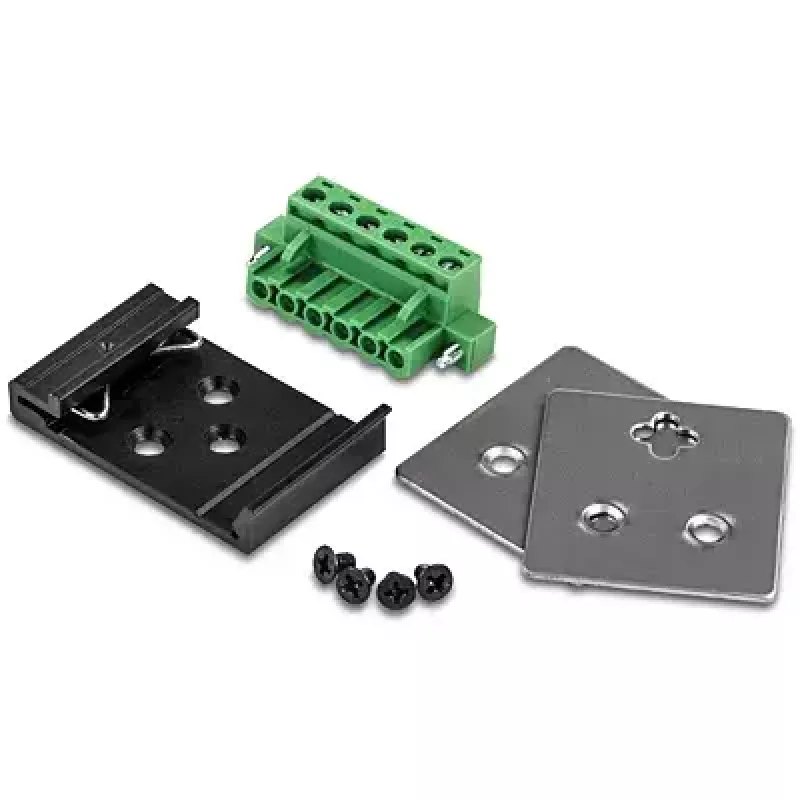

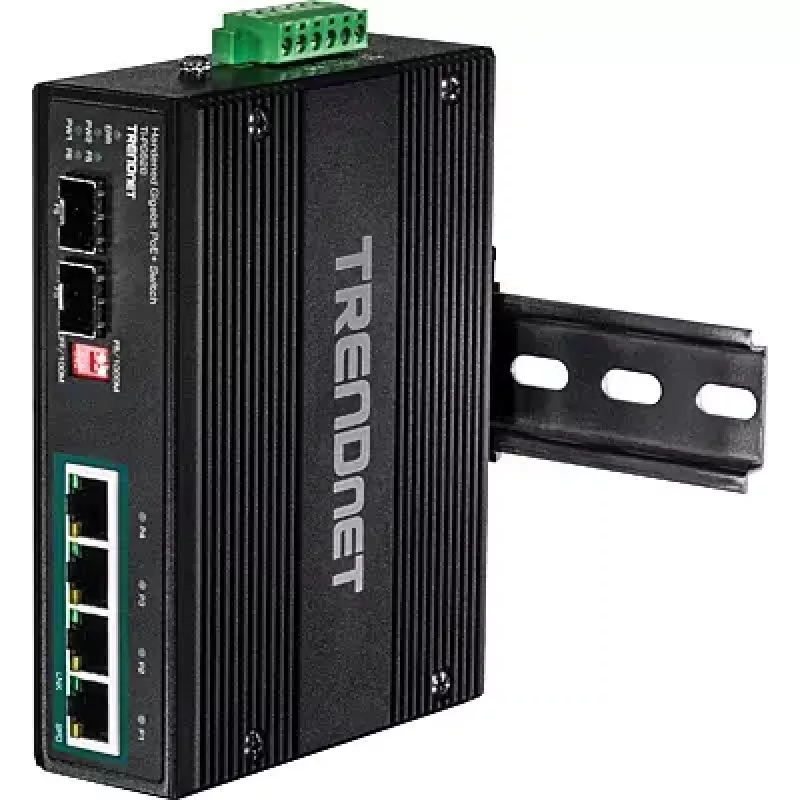

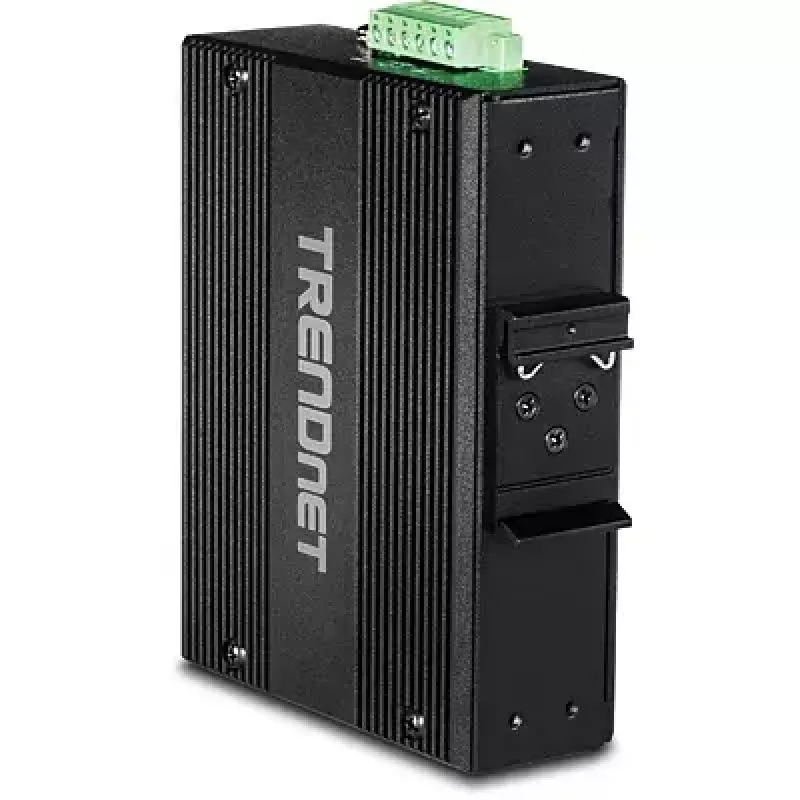

Mount the TI-PG62B on a DIN rail in a dry, ventilated enclosure and connect the primary and redundant 12–56 VDC power sources following local electrical regulations. Connect Ethernet devices to the four RJ-45 PoE+ ports to provide data and power over a single cable, and install fiber modules in the SFP slots if fiber uplinks are required. The switch is unmanaged and operates plug-and-play; no software configuration is required for basic connectivity.

Recommendations

Install the switch in environments within its rated temperature and IP30 enclosure limits, use appropriate surge protection on power and data lines in industrial settings, and verify total PoE budget of connected devices to avoid exceeding the switch’s power capacity.
