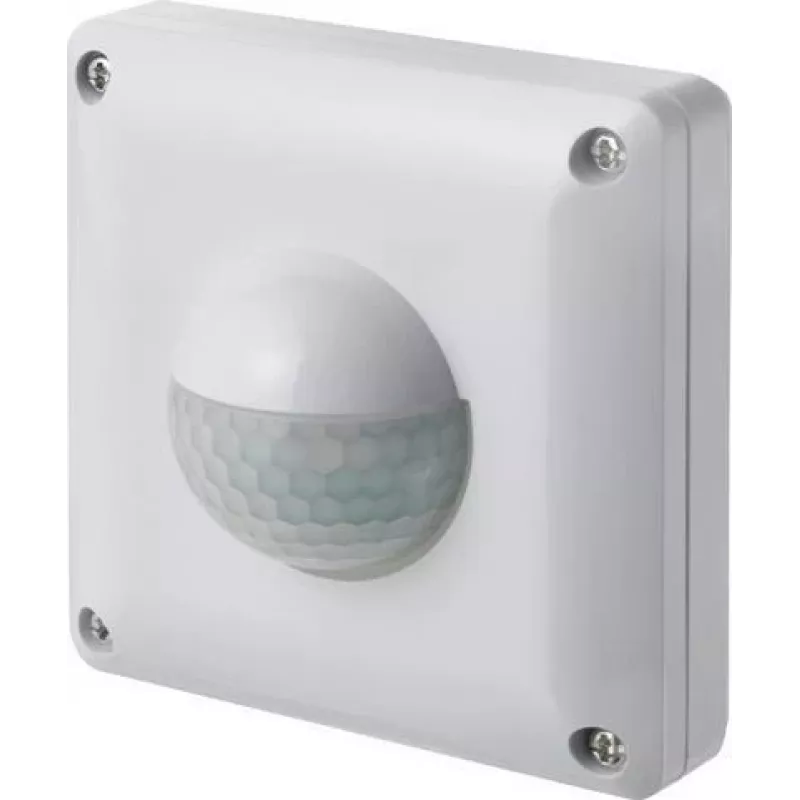

Sygonix SY-4755364 rilevatore di movimento PIR da incasso 190° Triac bianco IP65

The Sygonix SY-4755364 stands out with its wide 190° detection angle and Triac switching, making it suitable for controlling both incandescent and LED loads directly without an additional relay. Its flush-mount design and IP65 rating allow installation in outdoor or damp locations.

Highlights

• 190° PIR detection angle with 8 m range
• Triac switching: 400 W incandescent / 200 W LED
• IP65 weatherproof for outdoor use
• Adjustable time (10 s – 7 min) and twilight (3 – 2000 lux)
• Flush-mount installation, white polycarbonate housing

In daily use

Mount the detector at 1.8–2.5 m height for optimal coverage. The built-in twilight sensor ensures it only activates when needed, while the adjustable time delay lets you control how long connected lighting stays on after motion ceases.

Full specifications

• Detection technology: Passive Infrared (PIR)
• Installation type: Flush-mount
• Detection angle: 190°
• Switching technology: Triac
• IP rating: IP65
• Colour: White
• Operating voltage: 230 V/AC
• Max. switching capacity incandescent: 400 W
• Max. switching capacity LED: 200 W
• Detection range: 8 m
• Time setting: 10 seconds – 7 minutes
• Twilight setting: 3 – 2000 Lux
• Recommended mounting height: 1.8 – 2.5 m
• Standby power consumption: < 0.5 W
• Housing material: Polycarbonate
• Operating temperature: -20 to +40 °C
• Frequency: 50 Hz
• Installation depth: approx. 35 mm

Final note

With its Triac output, the SY-4755364 handles mixed lighting loads quietly and without relay clicking, making it a solid choice for entrances, hallways, and outdoor areas.
