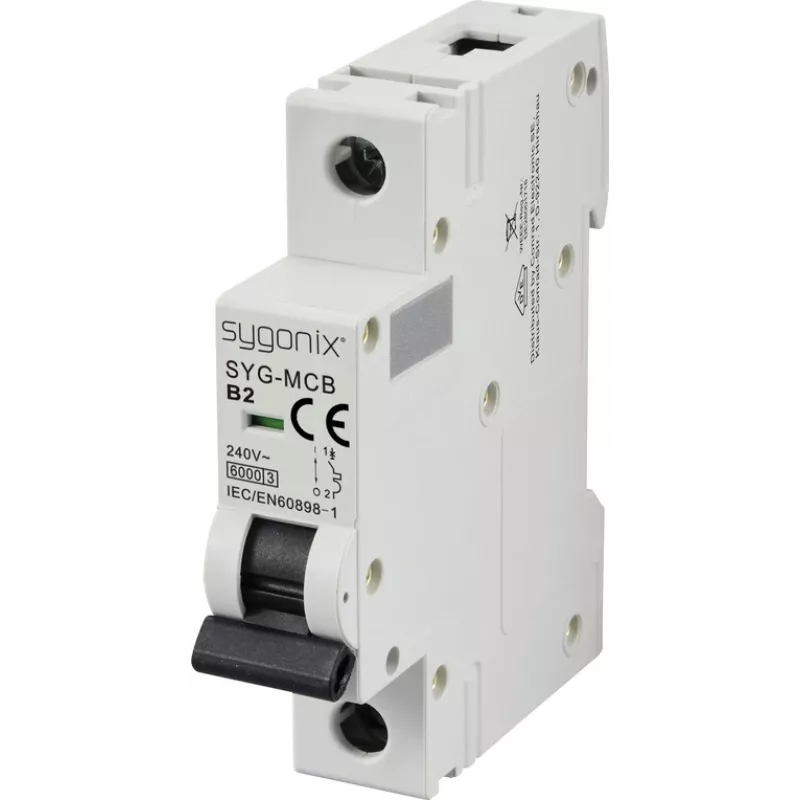

Sygonix SY-6437976 SYG-MCB 1P/B2/6KA interruttore automatico magnetotermico 1 polo 2 A 240 V/AC

Miniature circuit breaker with 1-pole protection, rated current 2 A and breaking capacity 6 kA for 240 V/AC circuits. Tripping characteristic B ensures reliable protection against overload and short circuit.

Advantages

Compact DIN rail mounting, screw terminals for rigid and flexible conductors, and compliance with EN 60898-1.

Suitable for

• Residential and commercial distribution boards
• Protection of control circuits and lighting

Key specifications

• Number of poles: 1
• Rated current: 2 A
• Rated voltage: 240 V/AC
• Tripping characteristic: B
• Short-circuit breaking capacity: 6 kA
• Mounting: DIN rail
• Frequency: 50/60 Hz
• Protection rating: IP20
• Operating temperature: -25 to +55 °C
• Terminal capacity rigid: 1 - 25 mm²
• Terminal capacity flexible: 1 - 16 mm²
• Energy limitation class: 3
• Rated impulse withstand voltage: 4 kV
• Rated insulation voltage: 250 V
• Module width: 1 module (17.5 mm)
• Connection: screw terminals

Recommendations

Ideal for protecting circuits with low inrush currents, such as lighting and electronic loads.
