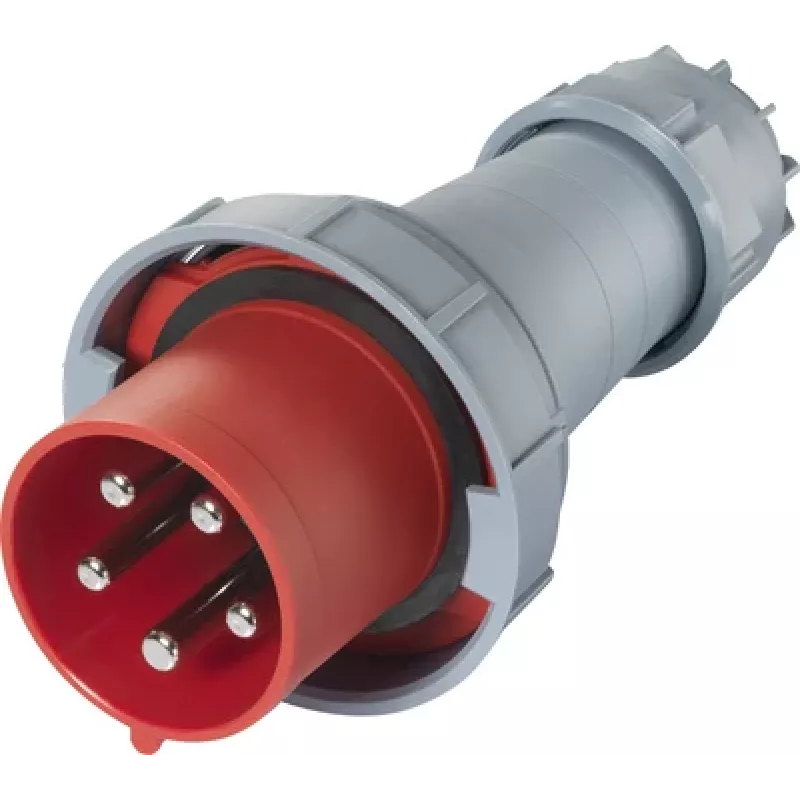

Sygonix SY-6790588 connettore maschio CEE 125 A 5 poli 400 V/AC IP67 rosso

Industrial CEE plug for high-current 400 V connections, delivering a robust 125 A rating in a 5-pole configuration (3P+N+PE). Its screw terminals and IP67-rated polyamide housing ensure secure, weather-resistant power delivery in demanding environments.

Advantages

Supports heavy-duty 125 A loads at 400 V, with 5 poles for three-phase plus neutral and earth. The IP67 rating protects against dust and temporary immersion, while the 6h clock position prevents mismating with different voltage systems. Screw terminals provide reliable, vibration-resistant connections.

Suitable for

• Industrial machinery and equipment
• Construction sites and temporary power distribution
• Outdoor events requiring high-power connections
• Marine and dockside applications

Key specifications

• Plug type: CEE plug, straight design
• Rated current: 125 A
• Rated voltage: 400 V/AC
• Number of poles: 5 (3P+N+PE)
• Frequency: 50/60 Hz
• Protection class: IP67
• Connection technology: screw terminal
• Clock position: 6h
• Housing material: polyamide (PA6)
• Colour: red
• Operating temperature range: -25 to +40 °C
• Compatibility standard: IEC 60309-2

Recommendations

Pair with a matching 125 A CEE socket or connector with 6h clock position. Ensure cable diameter fits the screw-type gland and torque terminals to manufacturer specifications for optimal performance.
