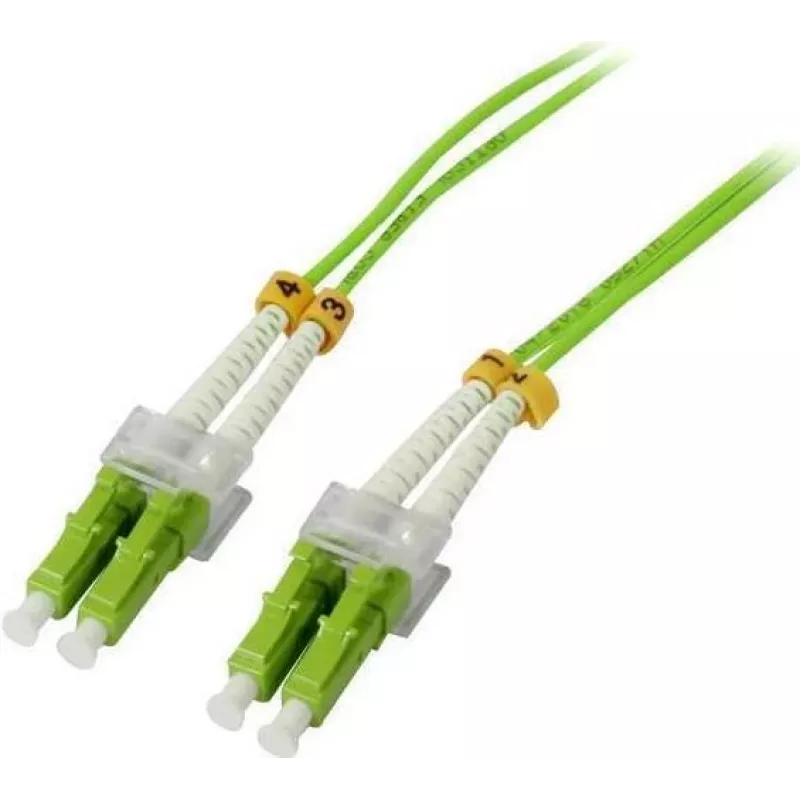

SYNERGY21 cavo patch in fibra ottica 30m LC-LC OM5 50/125µm 2mm verde lime

The SYNERGY21 S215505 is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. This 30-meter duplex multimode cable features LC to LC connectors with UPC polish, ensuring low insertion loss and high return loss for reliable high-speed data transmission. With OM5 wideband multimode fiber (50/125µm), it supports up to 400 Gigabit Ethernet and is backward compatible with OM4, OM3, OM2, and OM1 fiber classes. The 2mm cable diameter and lime green jacket provide easy identification and flexibility in cable management.

Advantages

Optimized for high-bandwidth applications, this OM5 patch cable delivers exceptional performance for short-reach interconnects in data centers and storage area networks. Its duplex design supports bidirectional communication, while the LC connectors ensure secure and stable connections. The cable is compliant with TIA/EIA-568.3-D and IEC 60793-2-10 standards, guaranteeing quality and reliability.

Suitable for

• Data center cabling infrastructure
• Storage Area Networks (SANs)
• Local Area Networks (LANs) requiring high-speed fiber connectivity
• High-performance computing environments

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM5 (Wideband Multimode Fiber)
• Core/Cladding Diameter: 50/125 µm
• Number of Fibers: 2 (Duplex)
• Connector Type A: LC
• Connector Type B: LC
• Connector Polish: UPC
• Cable Length: 30 meters
• Cable Diameter: 2 mm
• Jacket Color: Lime Green
• Data Rate Support: Up to 400 Gigabit Ethernet
• Backward Compatibility: OM4, OM3, OM2, OM1
• Standards: TIA/EIA-568.3-D, IEC 60793-2-10 Type A1a.4

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-density patching areas where space is limited and high bandwidth is required.
