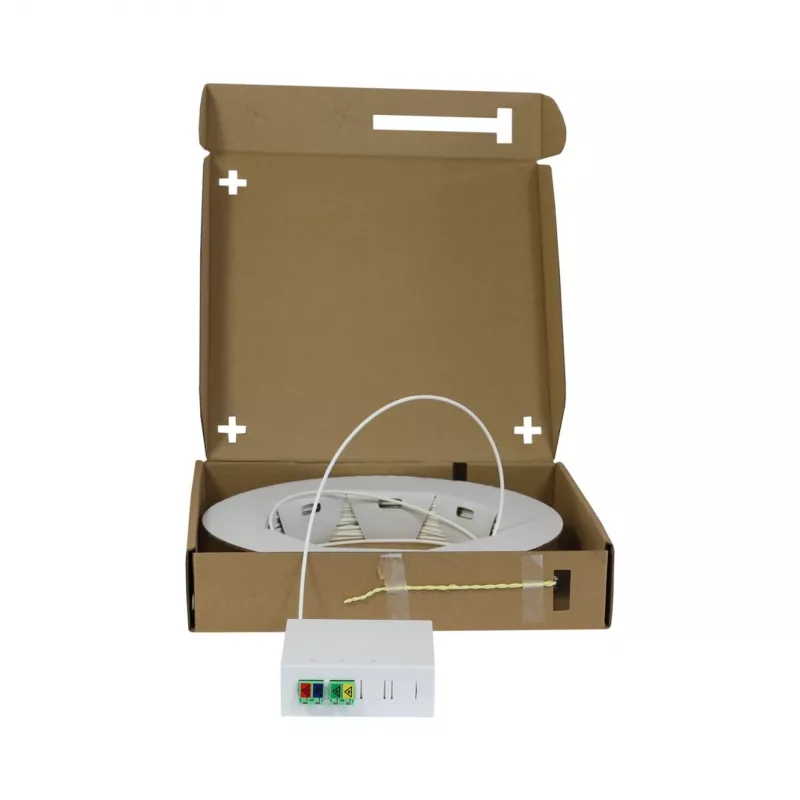

SYNERGY21 FTTH Compact Box preassemblata, 4xLC/APC a estremità aperta, 40m, 9/125µm, G.657.A2, 4 fibre, AD 2,2mm

The SYNERGY21 FTTH Compact Box is a pre-assembled fiber optic cable assembly designed for Fiber to the Home (FTTH) applications. It features 4 LC/APC connectors on one end and an open (unterminated) end on the other, with a length of 40 meters. The cable is single-mode with a 9/125 µm core/cladding diameter, compliant with ITU-T G.657.A2 bend-insensitive standard, and has an outer diameter of 2.2 mm. This compact and ready-to-use solution simplifies installation and ensures reliable performance.

Advantages

Pre-terminated for quick and easy installation, reducing on-site termination time and errors. Bend-insensitive fiber allows for tighter bends without signal loss. Compact design saves space in FTTH cabinets and enclosures.

Suitable for

• Fiber to the Home (FTTH) installations
• Connecting optical network terminals (ONTs) to distribution points
• Indoor and protected outdoor environments

Key specifications

• Product Type: FTTH Compact Box
• Fiber Count: 4 Fibers
• Fiber Type: Single-mode (9/125 µm)
• Fiber Standard: ITU-T G.657.A2
• Connector End 1: 4x LC/APC
• End 2: Open End (Unterminated)
• Cable Length: 40 m
• Cable Outer Diameter: 2.2 mm
• Assembly Status: Pre-assembled

Recommendations

Ensure proper handling and routing to maintain bend radius specifications. Compatible with standard LC/APC adapters and FTTH termination boxes.
