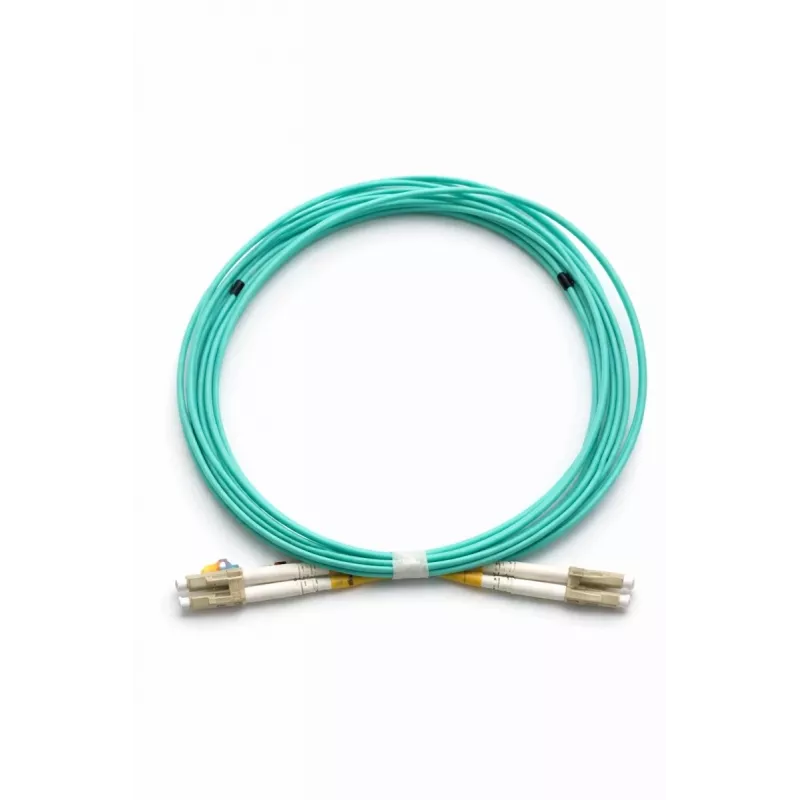

TB Cavo patch ottico LC-LC OM4 duplex 2m

The TB Optical Patchcord LC-LC OM4 Duplex 2m is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. Engineered with OM4 multimode fiber, it supports high-bandwidth applications such as 10GbE, 40GbE, and 100GbE, making it ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This patch cord offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring minimal signal degradation and optimal performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The duplex design with two fibers allows for simultaneous bidirectional communication, doubling throughput compared to simplex cables.

Suitable for

• Data center interconnects
• Enterprise network cabling
• Telecommunications equipment
• High-speed storage area networks (SAN)
• Fiber-to-the-desk (FTTD) applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM4
• Connector A: LC/UPC
• Connector B: LC/UPC
• Number of Fibers: 2 (Duplex)
• Cable Length: 2 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss (Max): <0.3 dB
• Return Loss (Min): >30 dB
• Bandwidth (850nm): 4700 MHz-km
• Bandwidth (1300nm): 500 MHz-km
• Cable Diameter: 2.0 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3
• Polarity: A-B Straight
• Ferrule Material: Ceramic

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This patch cord is compatible with all standard LC duplex interfaces.
