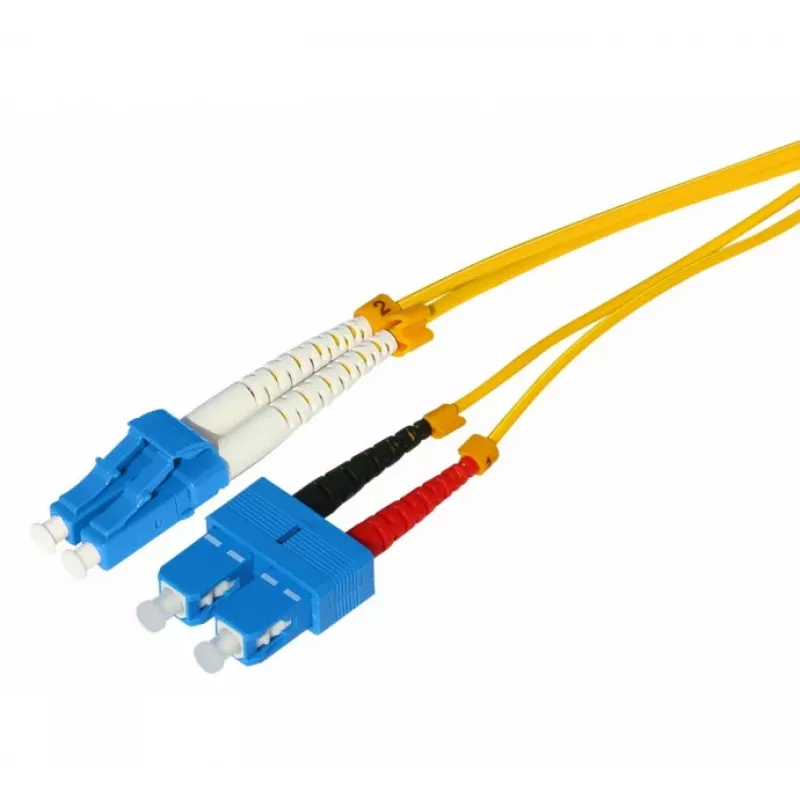

Tecline cavo patch fibra ottica HD, 9/125 µm singlemode OS2, LC duplex su SC duplex, giallo, 1,0 m (799LS01)

Network technicians and data centre managers use this Tecline HD fibre optic patch cable to connect LC and SC duplex ports in high-speed backbone links. The singlemode OS2 fibre with 9/125 µm core supports long-distance, low-loss transmission in enterprise and telecom environments.

Key specifications

• Fibre type: Singlemode OS2, 9/125 µm
• Connectors: LC Duplex to SC Duplex, UPC polish
• Length: 1.0 m
• Jacket: LSZH, yellow
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB

Why choose it

The LSZH jacket reduces toxic smoke in case of fire, making it suitable for enclosed spaces. UPC polish ensures low back reflection, critical for high-speed singlemode links.

Ideal use cases

• Data centre interconnects between switches and patch panels
• Telecom central office cross-connects
• FTTx distribution points

Good to know

Duplex construction with two fibres enables bidirectional communication over a single cable assembly. The yellow jacket is the industry standard for singlemode OS2.
