Hypertec 257281-HY patch panel 1U

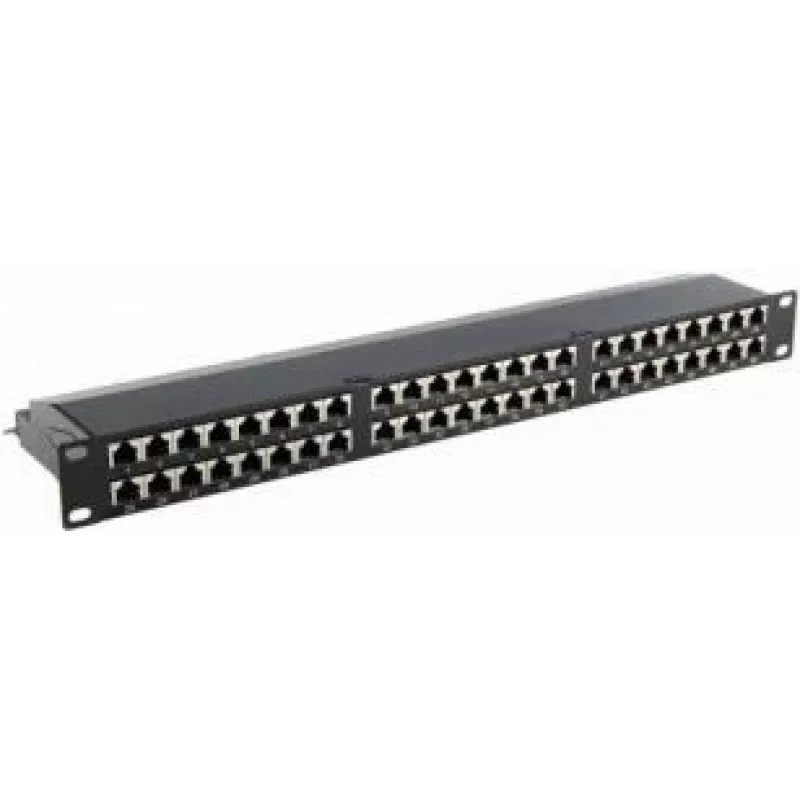

The Hypertec ProConnectLite Patch Panel Cat6 1U (model 257281-HY) is a rack-mounted network termination panel designed for organized cabling in server rooms and data centers. It features S/UTP (shielded) support for improved signal integrity and is finished in black and metallic tones for durability and a professional rack appearance. The panel is compatible with both EIA/TIA-568A and EIA/TIA-568B wiring schemes and provides 48 RJ45 ports in a 1U rack footprint.

Advantages

This 1U Hypertec patch panel offers shielded S/UTP support to reduce electromagnetic interference, a 48-port density for efficient cable management in limited rack space, and compatibility with standard EIA/TIA wiring schemes for straightforward installation. The metal construction and black finish improve durability and help maintain a clean rack layout.

Suitable for

Key specifications

How to use

Mount the patch panel into a standard 19-inch rack occupying 1U of space. Terminate each Cat6 S/UTP cable to the corresponding RJ45 keystone or IDC blocks following either the EIA/TIA-568A or EIA/TIA-568B wiring standard. Route and secure shielded cable drains and grounding according to your facility's grounding practice to preserve the shield continuity. Use standard patch cords to connect active equipment to the front-facing RJ45 ports.

Recommendations

For best performance, install within a properly grounded rack, maintain recommended bend radii for Cat6 S/UTP cables, and use compatible shielded patch cords. Follow your facility’s cabling and grounding procedures to ensure optimal signal integrity and compliance with EIA/TIA standards.
