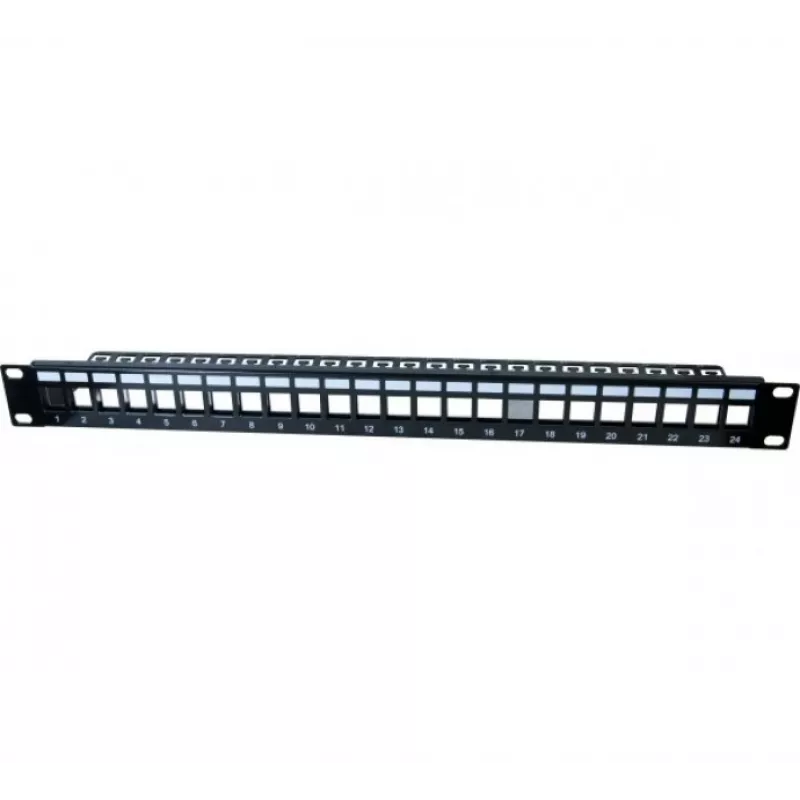

Hypertec 258156-HY Patch panel 1U

The Tecline 258156 is a 1U patch panel designed for efficient cable management in standard 19-inch network racks. Finished in black, the panel provides a compact, low-profile mounting solution that helps organize multiple network connections while preserving airflow and reducing cable clutter. It is compatible with common cable types used in structured cabling systems and is intended to simplify rack layout and maintenance.

Advantages

The patch panel offers a space-saving 1U height and a durable black finish that resists wear in a rack environment. Its front-facing ports allow for straightforward cable termination and easy identification of connected lines, while the robust construction supports frequent changes and reconfigurations. Installation and cable routing are streamlined to help maintain an orderly rack and improve accessibility for technicians.

Suitable for

Key specifications

How to use

Mount the 1U patch panel in a standard 19-inch rack using appropriate rack screws and cage nuts. Route the incoming cables from the rear or side, terminate them at the designated ports following the chosen wiring standard, and secure excess cable with cable ties or management bars. Label each port as required for accurate identification and verify connectivity after termination to ensure correct wiring and signal integrity.

Recommendations

For best results, use the patch panel with organized cable management accessories such as horizontal cable managers and vertical managers to maintain airflow and reduce strain on terminations. Periodically inspect terminations and labels after reconfigurations to preserve clarity and performance.
