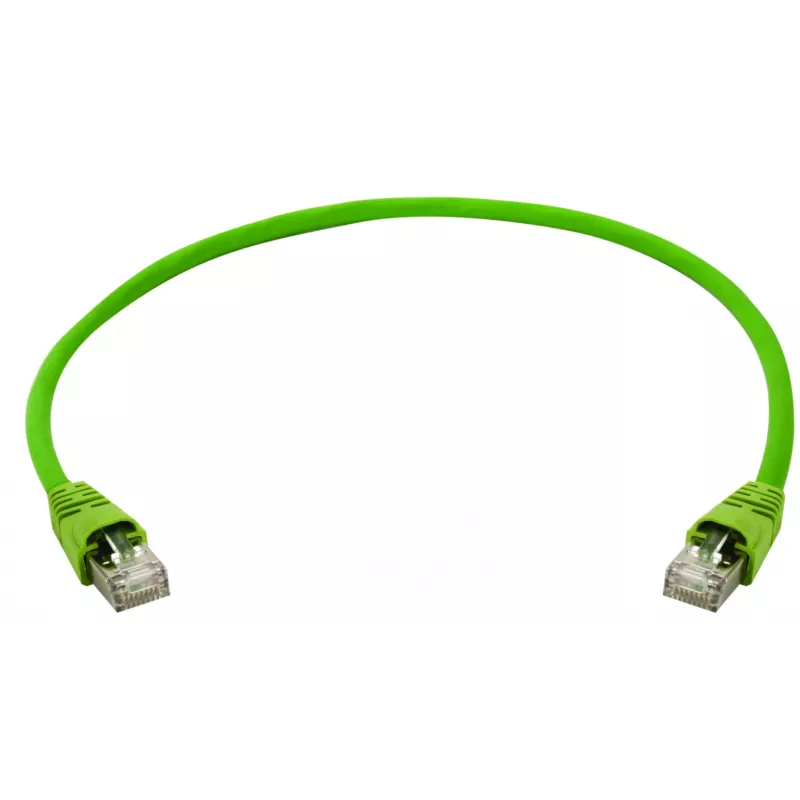

Telegärtner 100008111 Cavo patch RJ45, CAT 6a SF/UTP, 0,5 m, verde, con guaina antitorsione

Connect a workstation to a wall outlet in an office or data center with this 0.5 m Telegärtner patch cable. The green jacket makes it easy to identify in a crowded rack, and the molded boot protects the connector from bending at the cable entry.

Key specifications

• Category: CAT 6a
• Shielding: SF/UTP (S-FTP)
• Length: 0.5 m
• Colour: Green
• Connector type: RJ45 (both ends)
• Conductor material: Copper
• Conductor type: Stranded
• Conductor gauge: AWG 27/7
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Bend protection: Yes (molded boot)
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Number of pairs: 4
• Connector shielding: Shielded
• Operating temperature: -20°C to +60°C

Why choose it

CAT 6a supports 10 Gigabit Ethernet up to 100 m, so this short patch cable is ideal for high-speed links in server rooms and structured cabling systems. The SF/UTP shielding reduces alien crosstalk, and the LSZH jacket emits low smoke and no halogen in case of fire.

Ideal use cases

• Connecting servers to patch panels in data centers
• Linking switches and routers in network cabinets
• High-density office cabling where cable identification matters

Good to know

The molded boot provides strain relief and prevents the cable from being bent too sharply at the connector. The green colour is useful for color-coding different networks or VLANs.
