Telegärtner accoppiatore/adattatore SC duplex multimodale in fibra ottica J08081A0034

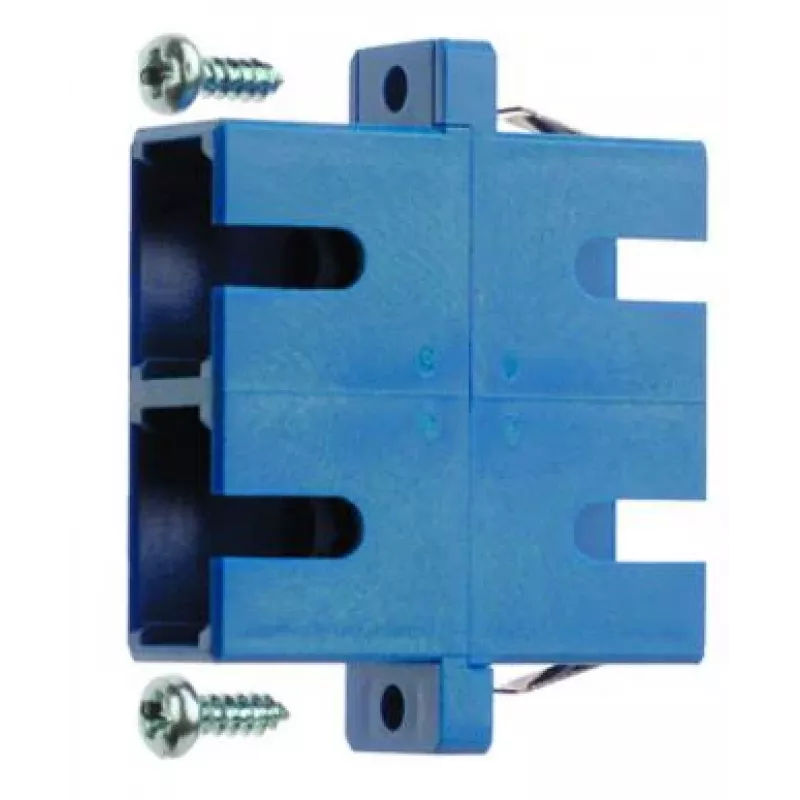

The Telegärtner SC Duplex Multimode Fiber Optic Coupler/Adapter (J08081A0034) is a high-quality network coupler designed for reliable fiber optic connections. It features SC connectors on both sides and supports multimode fibers (OM1-OM4). The adapter is equipped with a zirconia ceramic sleeve for low insertion loss and high return loss, ensuring optimal signal integrity. Its beige plastic housing and panel-mount design make it ideal for use in patch panels, distribution frames, and wall outlets.

Advantages

This coupler offers excellent performance with ≤0.3 dB insertion loss and ≥20 dB return loss. The durable zirconia ceramic sleeve ensures over 500 mating cycles, while the UL94 V-0 flammability rating guarantees safety. It complies with IEC 61754-4 and TIA/EIA-604-3 standards, making it a reliable choice for professional installations.

Suitable for

• Fiber optic patch panels
• Distribution frames
• Wall outlets
• Data center and telecom networks

Key specifications

• Connector Type: SC Duplex
• Fiber Type: Multimode (OM1, OM2, OM3, OM4)
• Sleeve Material: Zirconia Ceramic
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥20 dB
• Operating Temperature: -20°C to +70°C
• Mating Cycles: ≥500
• Flammability Rating: UL94 V-0

Recommendations

For optimal performance, pair this coupler with high-quality SC multimode patch cables and ensure proper cleaning before installation.
