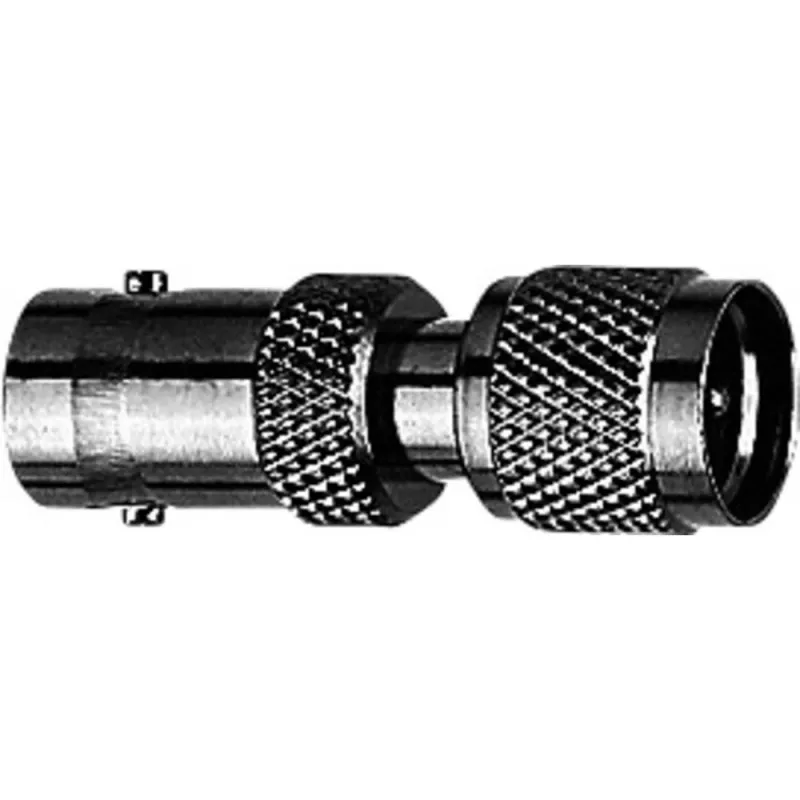

Telegärtner adattatore coassiale da connettore femmina BNC a connettore maschio Mini-UHF J01008F0072

This Telegärtner coaxial adapter provides a straight transition between a BNC female jack and a Mini-UHF male plug, both with 50 Ω impedance. It is built with a nickel-plated brass body, gold-plated brass center contacts, and PTFE insulation, ensuring reliable signal integrity up to 1 GHz.

Highlights

• BNC female to Mini-UHF male, straight configuration
• 50 Ω impedance, DC to 1 GHz frequency range
• VSWR ≤ 1.2 at 1 GHz
• Nickel-plated brass body, gold-plated center contacts
• Operating temperature -40 °C to +85 °C

In daily use

The adapter's compact design and robust construction make it suitable for RF connections in test setups, antenna systems, and communication equipment. The gold-plated contacts resist corrosion and maintain low contact resistance over repeated mating cycles.

Full specifications

• Connector 1: BNC female (jack)
• Connector 2: Mini-UHF male (plug)
• Impedance: 50 Ω
• Frequency band: DC to 1 GHz
• VSWR: ≤ 1.2 at 1 GHz
• Body material: Brass, nickel plated
• Center contact material: Brass, gold plated
• Insulator material: PTFE
• Operating temperature: -40 °C to +85 °C
• Mating cycles: ≥ 500
• Dielectric withstanding voltage: 1.5 kVeff (50 Hz)
• Operating voltage: 500 Veff (50 Hz)
• Insulation resistance: ≥ 5 GΩ

Final note

A dependable RF adapter for joining BNC and Mini-UHF interfaces in professional environments.
