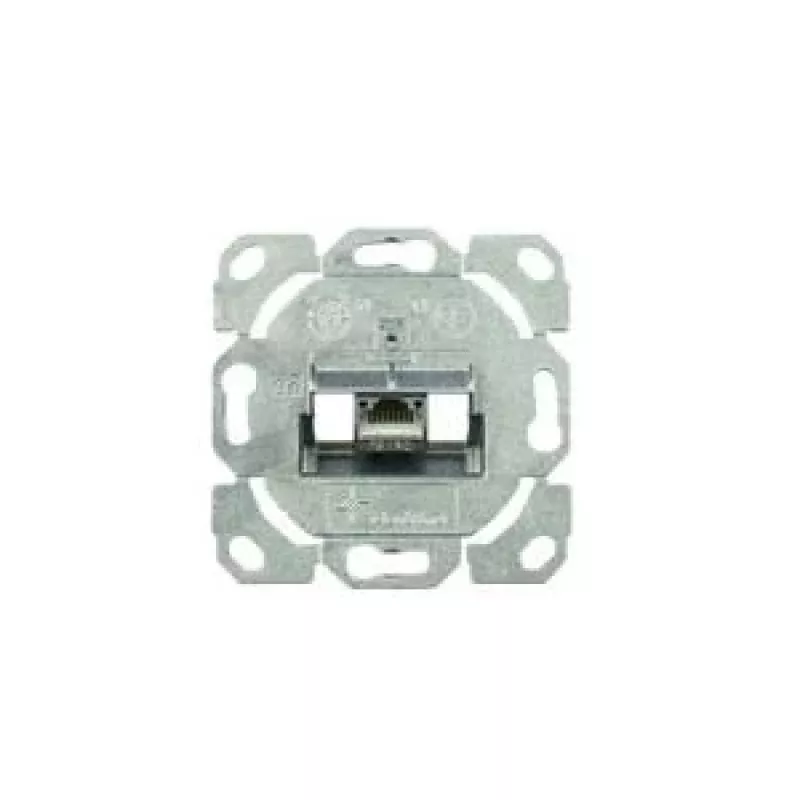

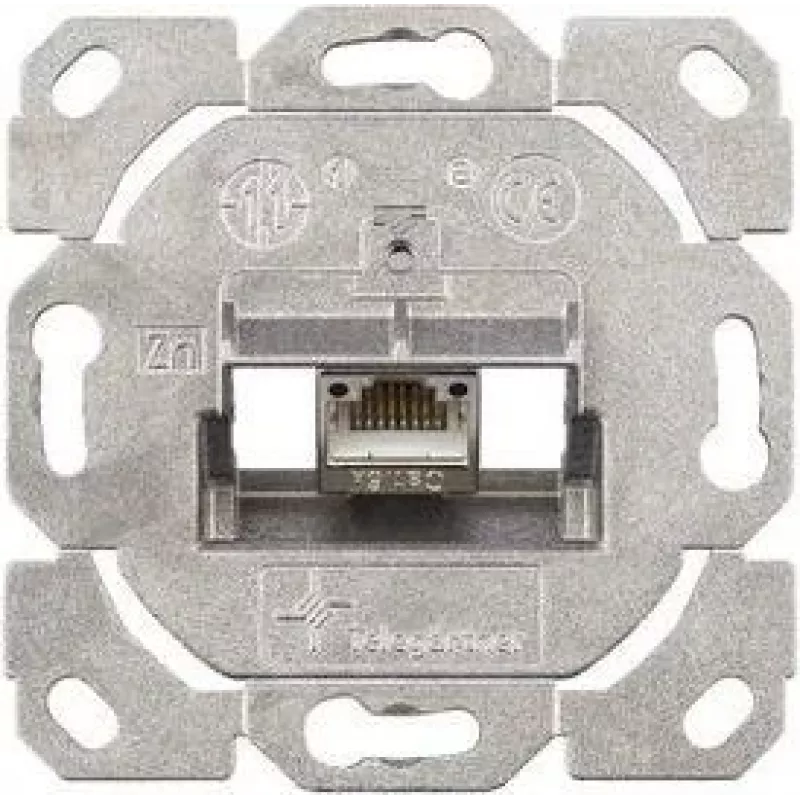

TELEGÄRTNER AMJ-S modulo di connessione RJ45 Cat.6A schermato con copertura, bianco puro J00020A0514

Network outlet module with integrated cover for Cat.6A shielded RJ45 connections, delivering reliable data transmission up to 500 MHz in a compact flush-mount design. The die-cast zinc housing and tool-less AMJ-S termination ensure durable, high-performance connectivity for structured cabling systems.

Advantages

Shielded Cat.6A module supports 10GBASE-T and Power over Ethernet up to 4PPoE. Tool-less IDC termination speeds installation, while the die-cast zinc body provides excellent shielding and mechanical stability. Cover in pure white (RAL 9010) blends with standard wall plates.

Suitable for

• Office and enterprise network cabling
• High-speed data and PoE applications
• Flush-mount installation in standard boxes

Key specifications

• Connector: RJ45, shielded, 1 port
• Category: Cat.6A (ISO/IEC), up to 500 MHz
• Termination: AMJ-S tool-less IDC, solid AWG 24/1 – 22/1, stranded AWG 26/7 – 22/7
• Housing: die-cast zinc, cover PC/ABS, UL 94 V-0
• Mounting: flush-mount
• Operating temperature: -40°C to +70°C
• Insertion cycles: >750, gold-plated contacts

Recommendations

Pair with TELEGÄRTNER patch panels and Cat.6A patch cables for a complete shielded cabling solution.
