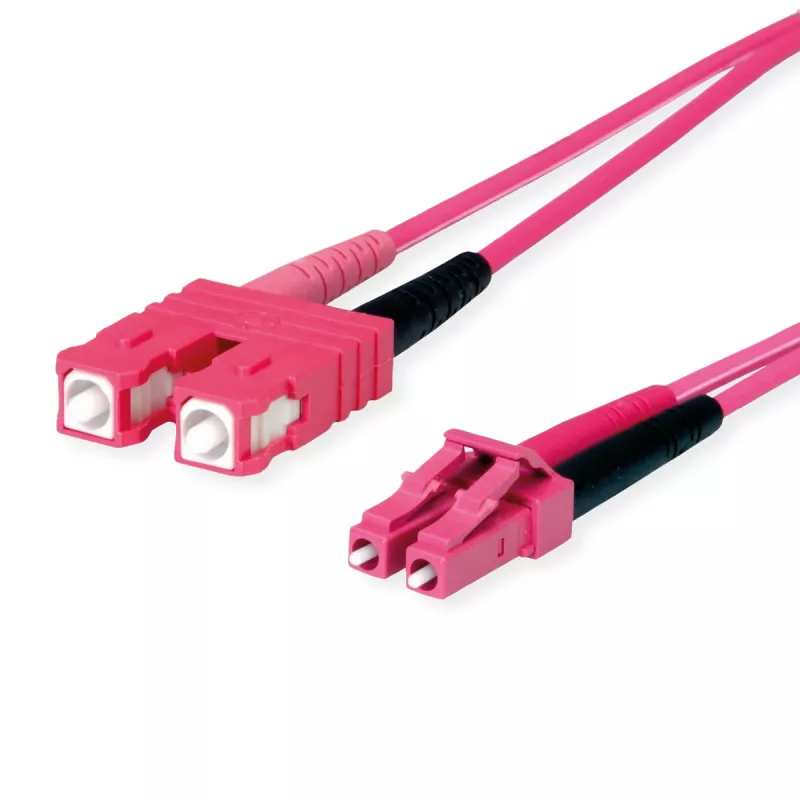

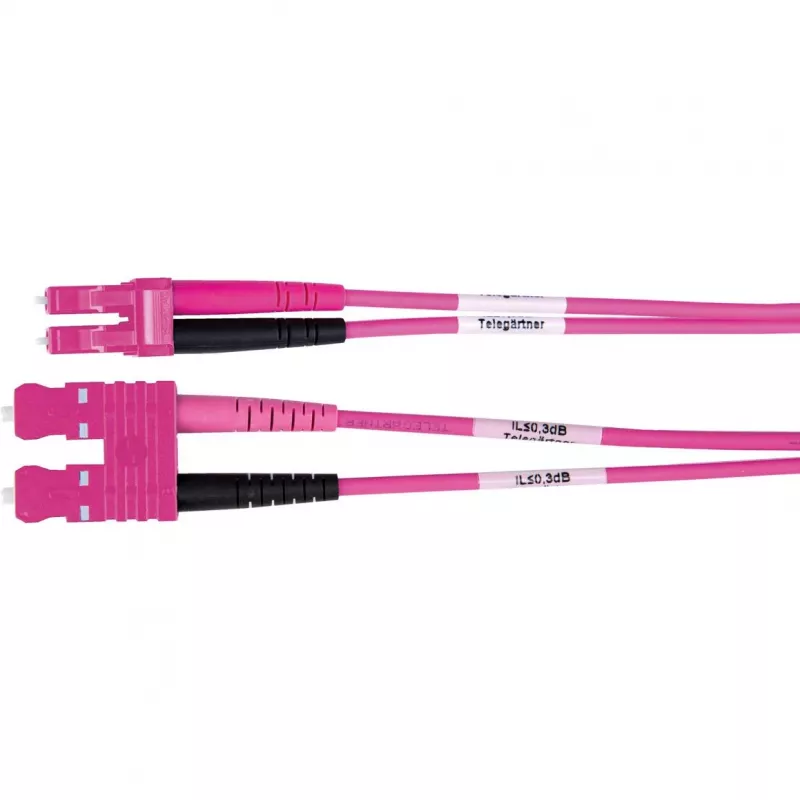

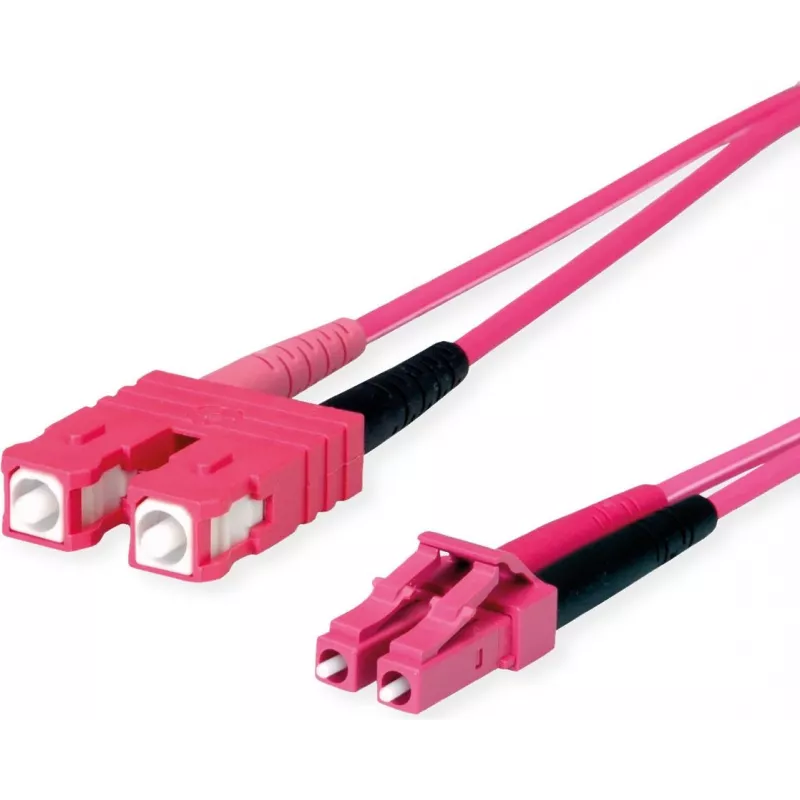

TELEGÄRTNER cavo adattatore duplex SC/LC OM4 2 m connettore SC-D LC-D viola cavo (L00891A0127)

High-speed multimode fiber optic connections demand low insertion loss and reliable performance. This TELEGÄRTNER SC to LC duplex patch cable delivers OM4-grade bandwidth for 10G, 40G, and 100G Ethernet links up to 2 meters, with a violet LSZH jacket for easy identification and safety.

Who is it for

Network engineers and data center technicians who need a dependable, high-performance multimode fiber patch cord for short-reach interconnects between SC and LC ports.

Main features

• OM4 multimode fiber supports 10G, 40G, and 100G Ethernet
• SC Duplex to LC Duplex connectors with A-B polarity
• Violet LSZH jacket for low smoke and zero halogen
• 2-meter length ideal for patching within racks

Specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Connector 1: SC Duplex
• Connector 2: LC Duplex
• Cable Length: 2 m
• Jacket Color: Violet
• Jacket Material: LSZH
• Number of Fibers: 2 (Duplex)
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 30 dB
• Attenuation @ 850nm: ≤ 2.3 dB/km
• Attenuation @ 1300nm: ≤ 0.6 dB/km
• Bandwidth @ 850nm: 4700 MHz·km (EMB)
• Bandwidth @ 1300nm: 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Polarity: A-B (Crossed)

Tips

For best performance, avoid sharp bends and keep connectors clean. Use with OM4-compatible transceivers for optimal link quality.
