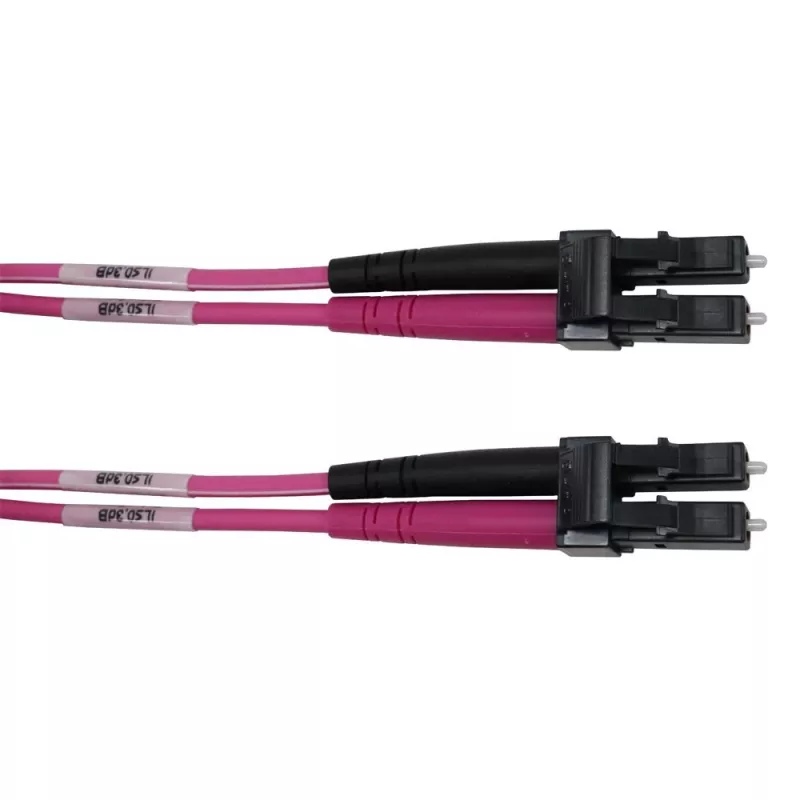

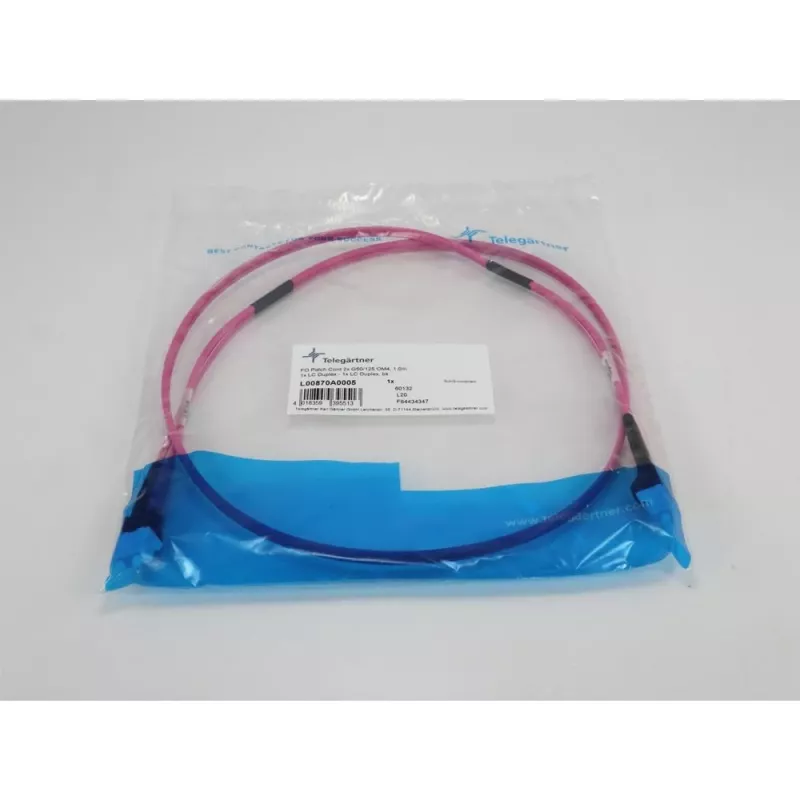

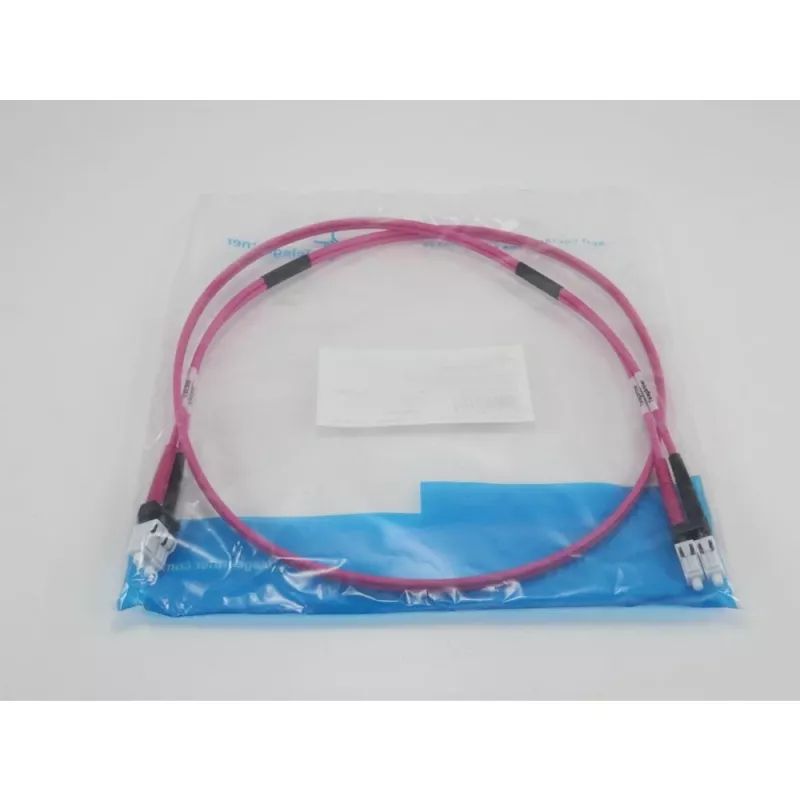

Telegärtner Cavo patch in fibra ottica multimodale OM4 LC su LC da 1 m, viola

High-speed data centers and enterprise networks need reliable, low-loss fiber connections. This Telegärtner patch cable provides a stable 1-meter link between LC ports, engineered for OM4 multimode performance and violet-colored for easy identification.

Who is it for

Network technicians and IT administrators deploying 10G/40G/100G Ethernet over short distances in data centers, server rooms, or campus backbones. Ideal for patching between switches, servers, and patch panels where space is tight and performance is critical.

Main features

• LC duplex male connectors on both ends for secure, high-density connections
• OM4 multimode fiber with 50/125 µm core/cladding supports high bandwidth up to 4700 MHz·km at 850 nm
• LSZH jacket in violet for easy identification and low smoke emission in case of fire
• 1-meter length reduces slack and improves cable management
• Low insertion loss (< 0.3 dB) and high return loss (> 30 dB) ensure signal integrity

Specifications

• Cable length: 1 m
• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector 1: LC male
• Connector 2: LC male
• Jacket material: LSZH
• Jacket color: Violet
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Bandwidth at 850 nm: 4700 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Attenuation at 850 nm: < 2.3 dB/km
• Attenuation at 1300 nm: < 0.6 dB/km
• Operating temperature: -20°C to +70°C
• Storage temperature: -20°C to +70°C

Tips

For best performance, keep bend radius above the recommended minimum and avoid sharp twists. Use violet OM4 cables consistently to distinguish them from OM3 (aqua) and single-mode (yellow) in your infrastructure.
