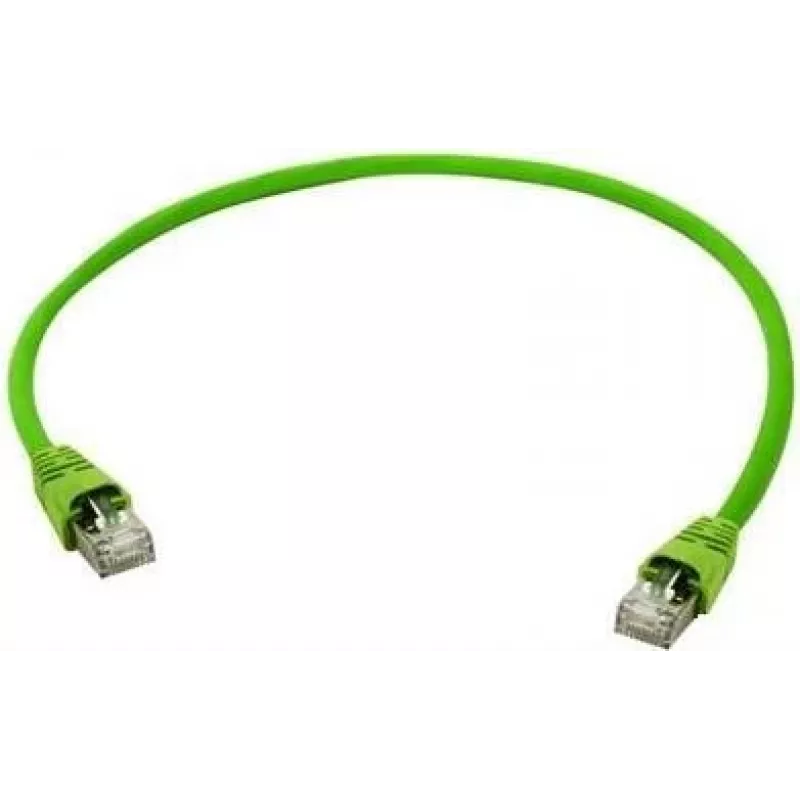

TELEGÄRTNER L00002A0153 cavo Cat.7 S/FTP al metro 3 m, verde

Installers and network technicians working on high-speed copper cabling projects use the TELEGÄRTNER L00002A0153 as a 3-metre bulk cable for custom-length terminations. This Cat.7 S/FTP cable is built for 10 Gigabit Ethernet links in data centres, offices and industrial environments where performance and fire safety are critical.

Key specifications

• Category: Cat.7
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor: Solid bare copper, AWG 23/1, 4 pairs
• Jacket: LSZH (Low Smoke Zero Halogen), green
• Length: 3 metres
• Impedance: 100 Ohm
• Frequency range: Up to 600 MHz
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• PoE support: Yes (PoE, PoE+, 4PPoE)
• Outer diameter: Approx. 7.5 mm
• Standards: ISO/IEC 11801, EN 50173, IEC 61156-5
• Flame retardancy: IEC 60332-1-2
• Halogen-free: Yes (IEC 60754-2)
• Low smoke emission: Yes (IEC 61034)
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C

Why choose it

The S/FTP construction provides excellent protection against alien crosstalk, ensuring stable 10G performance even in dense cable bundles. The LSZH jacket reduces toxic smoke and corrosive gases in case of fire, making it suitable for public buildings and confined spaces.

Ideal use cases

• Creating custom patch leads or permanent links in data centres
• High-density office cabling where 10GBase-T is required
• Industrial networks needing robust, halogen-free cabling

Good to know

This is a bulk cable without connectors, allowing you to terminate with RJ45 or other compatible connectors as needed. The green jacket aids in colour-coding network segments.
