Teleobiettivo Raynox DCR 1542 Pro

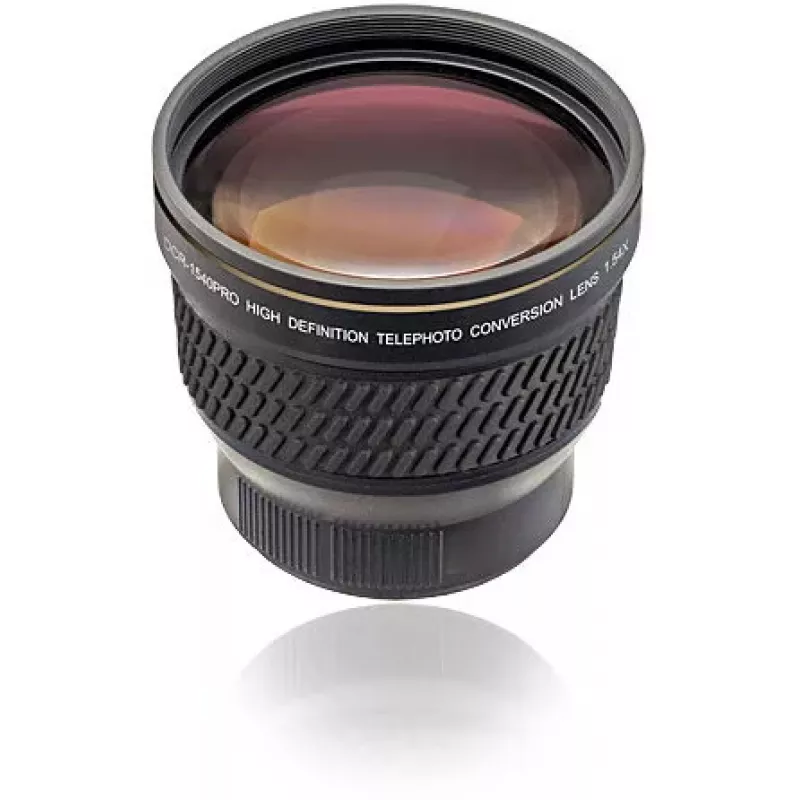

The Raynox DCR 1542 Pro is a telephoto conversion lens designed for camcorders and high-definition video cameras. It uses a high-index optical glass design with a two-group/four-element formula to deliver improved resolution, reduced chromatic aberration and increased light transmission at the image fringes. The lens is compact, black in colour and compatible with cameras that accept a suitable adapter or holder; it is recommended for HD cameras with 25x or greater optical zoom.

Advantages

The Raynox DCR 1542 Pro provides a 1.54x magnification to extend the reach of compatible camcorder lenses while maintaining high center resolution (approximately 340 lines/mm at MTF30%). Its two-element/four-group optical construction and high-index glass reduce dispersion and help preserve image clarity toward the frame edges. The lens has a compact form factor and uses a 67 mm filter/thread size for straightforward attachment via the appropriate adapter or holder.

Suitable for

• Camcorders and HD video cameras with 25x or higher optical zoom
• Field work requiring extended reach for distant subjects
• Event and documentary shooting where additional telephoto capability is needed
• Situations where a compact, attachable conversion lens is preferred

Key specifications

• Model: DCR-1542PRO
• Magnification: 1.54x
• Optical construction: 2 elements / 4 groups
• Center resolution: approx. 340 lines/mm (MTF30%)
• Filter/thread size: 67 mm
• Colour: Black
• Component for: Camcorder / HD video camera

How to use

Attach the DCR 1542 Pro to a compatible camcorder or HD video camera using the appropriate adapter or holder for your camera model. Align and secure the lens according to the adapter’s instructions, then verify focus and framing through the camera viewfinder or monitor. Fine-tune focus and exposure settings as needed to compensate for the added magnification. Remove the lens carefully when finished and store it in a protective case.

Recommendations

Use the DCR 1542 Pro on cameras with 25x or greater optical zoom to achieve optimal results. Confirm compatibility with your camcorder model and use the correct adapter or holder to ensure secure mounting. When shooting at long effective focal lengths, stabilize the camera with a tripod or support to minimize camera shake and maintain image sharpness.
