TELTONIKA NETWORKS TAP100 WiFi 4 Access Point

The TELTONIKA NETWORKS TAP100 is a reliable and cost-effective WiFi 4 access point designed for small to medium-sized businesses and home offices. It delivers stable wireless connectivity with speeds up to 300 Mbps on the 2.4 GHz band, making it ideal for everyday internet tasks such as browsing, email, and video streaming. With multiple operating modes including Access Point, Repeater, and Client, the TAP100 offers flexible deployment options to extend or enhance your existing network.

Advantages

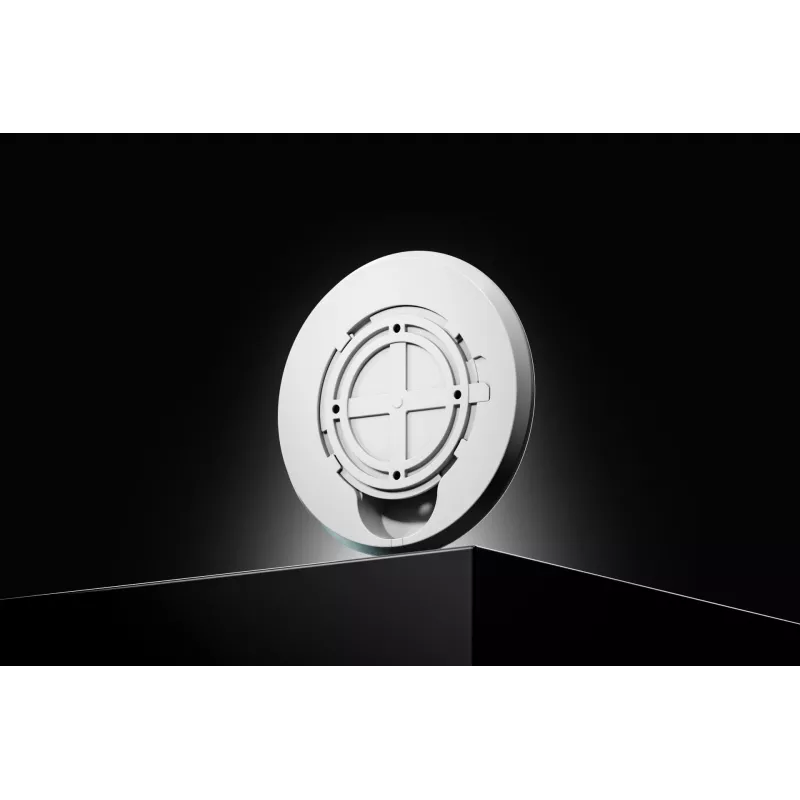

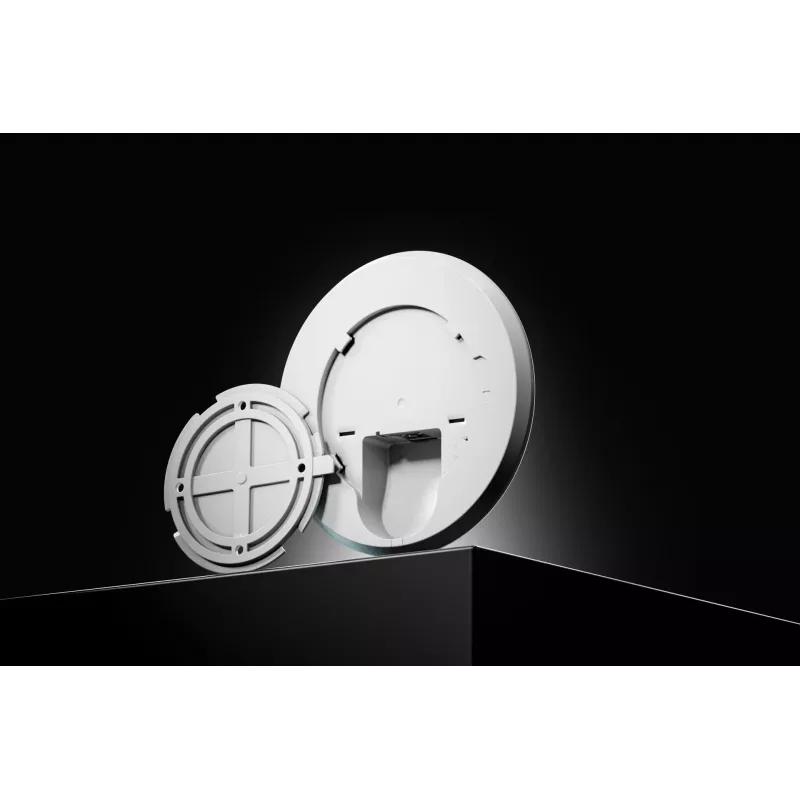

Easy to set up and manage via a web-based interface, the TAP100 supports advanced features like QoS, MAC address filtering, and VLAN tagging for optimized network performance and security. Its compact design allows for desktop or wall-mountable installation, and the internal omnidirectional antennas ensure broad coverage. The device is powered by a 9V DC adapter and includes a WPS/Reset button for quick connections and troubleshooting.

Suitable for

• Small offices and home offices needing a reliable wireless network
• Extending WiFi coverage in areas with weak signal
• Setting up a secure guest network with Multi-SSID support
• Businesses requiring VLAN segmentation for different departments

Key specifications

• Wireless Standard: IEEE 802.11n/g/b (Wi-Fi 4)
• Frequency Band: 2.4 GHz
• Max Data Rate: 300 Mbps
• Ethernet Port: 1 x 10/100 Mbps RJ45 (WAN/LAN)
• Antenna: 2 x Internal Omni-directional, 5 dBi each
• Security: WPA/WPA2-PSK, WPA/WPA2-Enterprise, WEP
• Operating Modes: Access Point, Repeater, Client, Multi-SSID
• Power Supply: 9V / 0.6A DC Adapter
• Management: Web-based UI
• Dimensions: 150 x 100 x 30 mm

Recommendations

For optimal performance, place the TAP100 in a central location away from obstructions. Use the web interface to configure security settings and enable QoS for prioritizing bandwidth-critical applications. The device is compatible with all standard WiFi 4 (802.11n) clients and can be used as a repeater to extend the range of an existing router.
