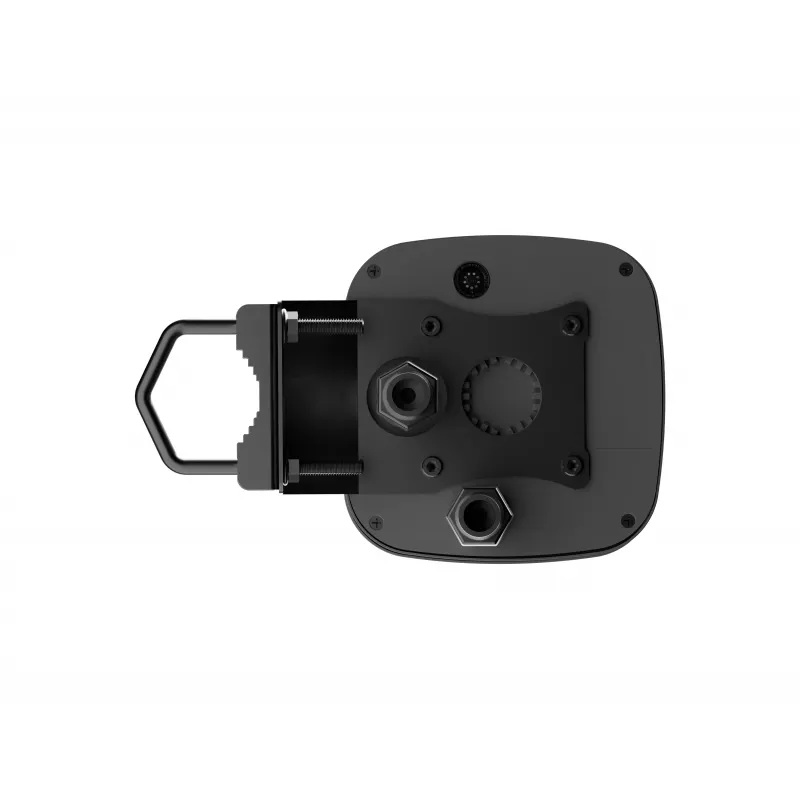

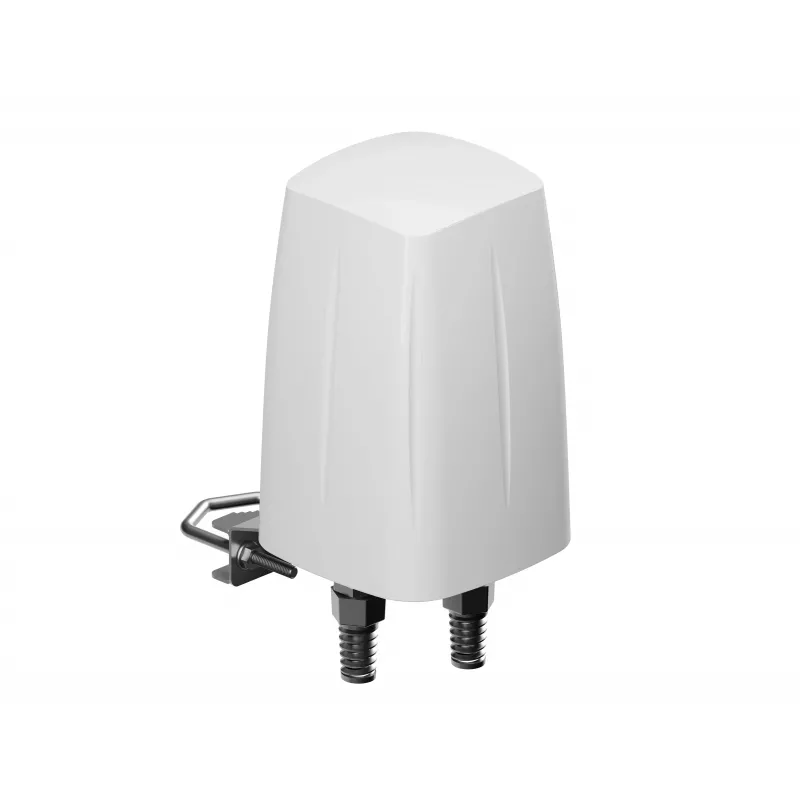

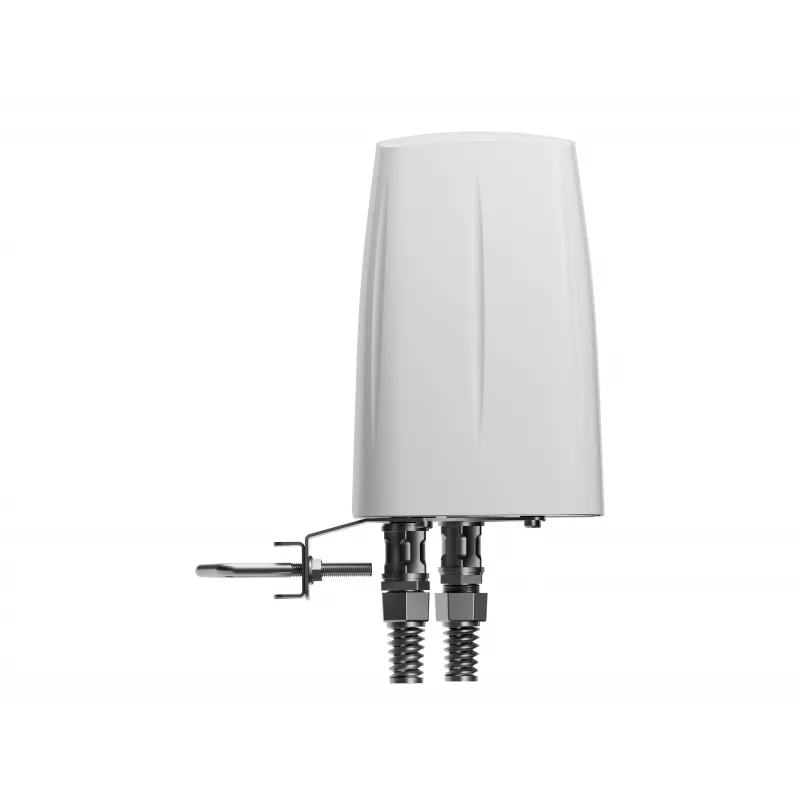

Teltonika PR1DCA70 antenna combinata MIMO esterna LTE/5G/Wi-Fi/GPS con accessori

For fleet managers and industrial IoT integrators deploying routers in exposed outdoor locations, the Teltonika PR1DCA70 provides a single omnidirectional antenna solution for LTE, 5G, Wi-Fi, and GPS signals. Mount it on a pole, wall, or surface to maintain reliable connectivity for vehicles, remote kiosks, or outdoor enclosures.

Key specifications

• Combo MIMO omnidirectional antenna supporting LTE, 5G, Wi-Fi, and GPS
• LTE/5G frequency bands: 617–960 MHz, 1710–2700 MHz, 3300–3800 MHz
• Wi-Fi frequency bands: 2400–2500 MHz, 5150–5875 MHz
• GPS frequency band: 1575.42 MHz (L1)
• Peak gain up to 6 dBi for LTE/5G and Wi-Fi; GPS LNA gain 28 ± 2 dBi
• Connectors: 2 x SMA male (LTE/5G), 2 x RP-SMA male (Wi-Fi), 1 x SMA male (GPS)
• 3-meter cables on all connections
• 2x2 MIMO support for LTE/5G and Wi-Fi
• IP67-rated housing for outdoor durability
• Operating temperature range: -40°C to +85°C
• 50 Ohm impedance; VSWR < 2.5 (LTE/5G, Wi-Fi), < 2.0 (GPS)
• Polarization: vertical (LTE/5G, Wi-Fi), RHCP (GPS)
• UV-resistant PC plastic housing

Why choose it

This antenna consolidates four wireless functions into one compact unit, reducing installation complexity and cable clutter. Its IP67 rating and wide temperature tolerance ensure consistent performance in harsh environments, while the included 3-meter cables offer flexibility in mounting location.

Ideal use cases

• Outdoor routers and gateways for industrial IoT
• Vehicle-mounted connectivity for public transit or fleet management
• Remote monitoring stations in agriculture or utilities
• Outdoor Wi-Fi hotspots requiring GPS synchronization

Good to know

The PR1DCA70 is designed for use with Teltonika networking devices that have matching SMA and RP-SMA connectors. The omnidirectional pattern provides 360-degree coverage, making it suitable for sites where the direction of the signal source may vary. Mounting hardware is not included unless specified by the supplier.
