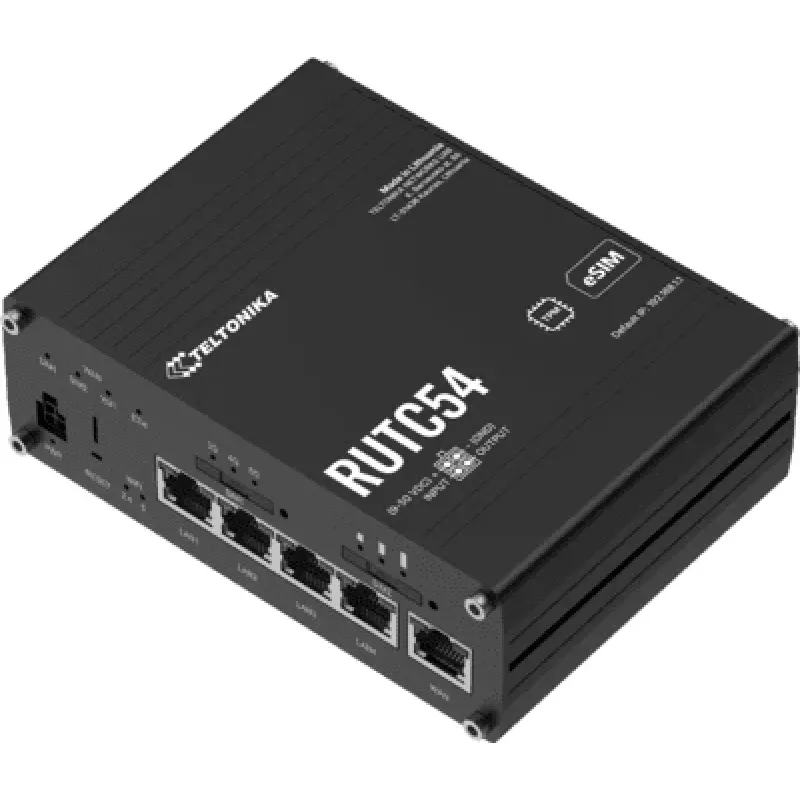

Teltonika RUTC54 Global router edge 5G

The Teltonika RUTC54 redefines industrial connectivity with its global 5G Sub-6 GHz support and dual-SIM failover, ensuring uninterrupted internet for mission-critical applications. Unlike consumer routers, it combines a rugged IP30 metal housing, wide 9-50 VDC power input, and an operating range from -40 °C to 75 °C, making it ideal for harsh environments. With five Gigabit Ethernet ports, dual-band Wi-Fi 5, and advanced VPN capabilities, this router delivers secure, high-speed networking for vehicles, remote sites, and IoT deployments.

Highlights

• Global 5G (SA/NSA) with fallback to 4G LTE Cat 20 and 3G
• Dual SIM slots for automatic failover and load balancing
• 5 x Gigabit Ethernet ports (1 WAN, 4 LAN) for wired devices
• Dual-band Wi-Fi 5 (802.11ac) for wireless connectivity
• Quad-core ARM Cortex A7 processor with 256 MB RAM
• GNSS support (GPS, GLONASS, BeiDou, Galileo) for location tracking
• Wide power input 9-50 VDC and DIN rail/wall mounting options
• Comprehensive VPN support including WireGuard, OpenVPN, IPsec

In daily use

The RUTC54 excels in scenarios demanding reliable connectivity. Its dual-SIM capability ensures seamless switching between carriers, while the five Ethernet ports connect critical equipment. Wi-Fi 5 provides wireless access for nearby devices, and the USB 2.0 port allows for additional peripherals. Remote management via Teltonika RMS, Web UI, CLI, SSH, SNMP, or TR-069 simplifies deployment and monitoring across distributed networks.

Full specifications

• Cellular: 5G Sub-6 GHz (SA/NSA), 4G LTE Cat 20, 3G
• Ethernet: 5 x Gigabit (1 WAN, 4 LAN)
• Wi-Fi: Dual-band Wi-Fi 5 (802.11ac), 2.4 GHz and 5 GHz
• Processor: Quad-core ARM Cortex A7, 710 MHz
• Memory: 256 MB DDR3 RAM, 256 MB SPI Flash
• SIM: 2 x Mini SIM (2FF)
• Antennas: 4 x SMA for cellular, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
• GNSS: GPS, GLONASS, BeiDou, Galileo
• Power: 9-50 VDC via 4-pin connector
• Operating temperature: -40 °C to 75 °C
• Ingress protection: IP30
• Mounting: DIN rail or wall mount
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, SSTP, WireGuard
• Max 5G throughput: Up to 3.4 Gbps
• USB: 1 x USB 2.0
• Management: RMS, Web UI, CLI, SSH, SNMP, TR-069

Final note

The Teltonika RUTC54 is a robust, future-proof solution for industrial and mobile networking, offering global 5G connectivity, advanced security, and flexible management in a compact, durable design.
