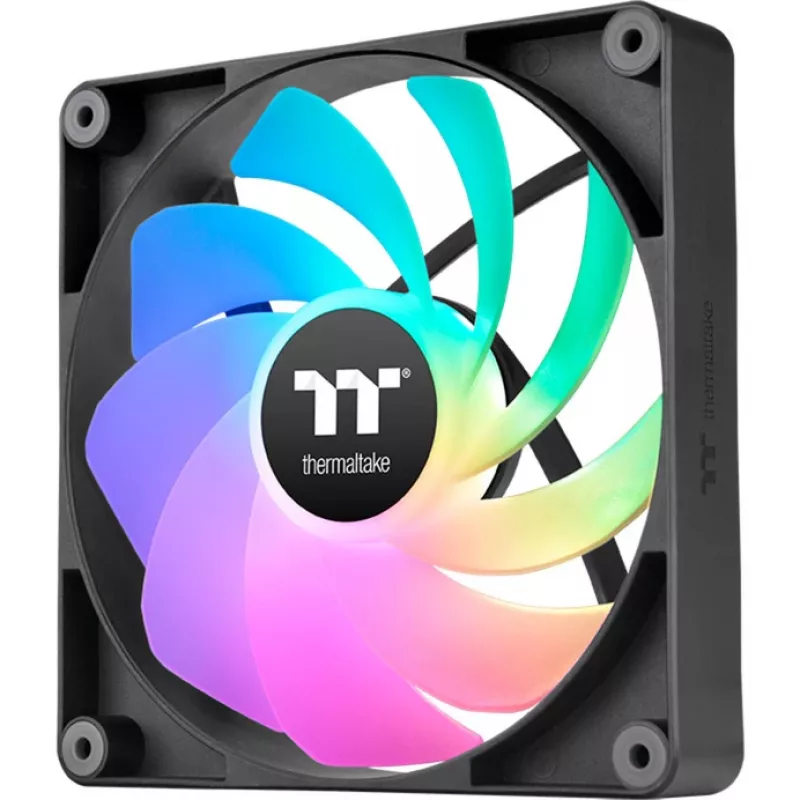

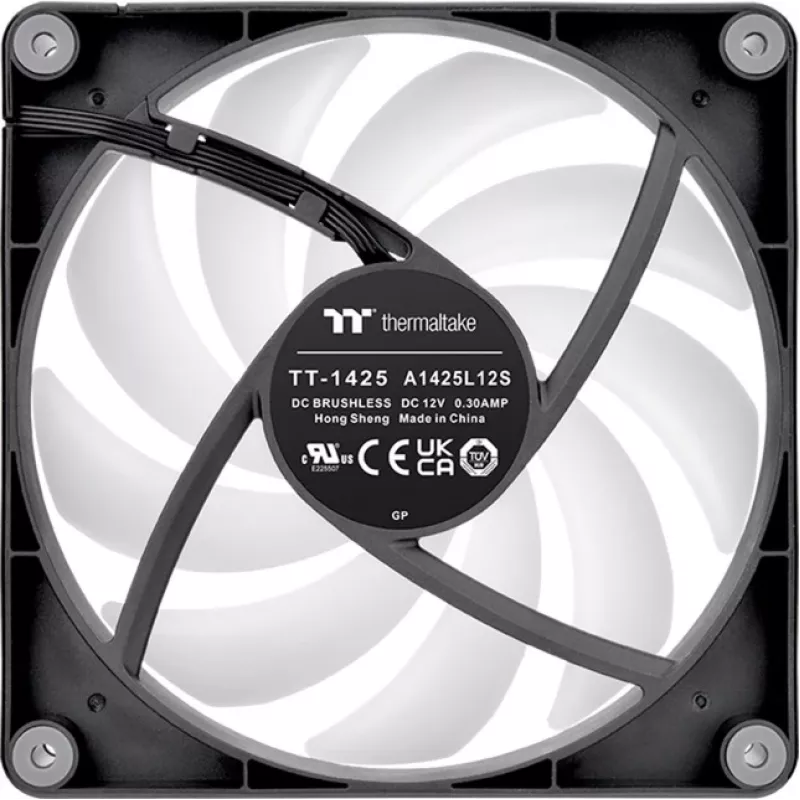

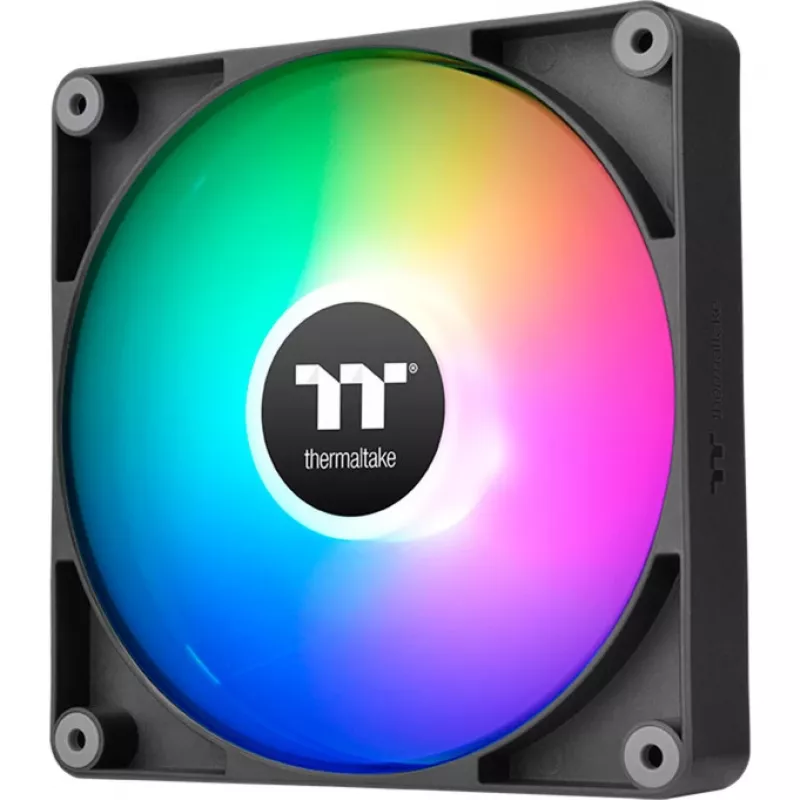

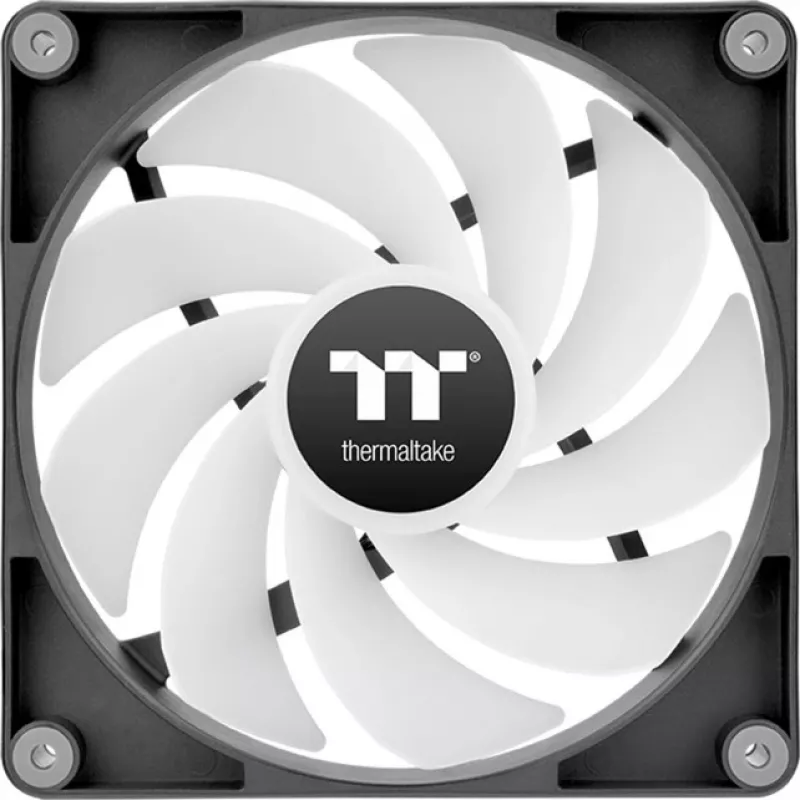

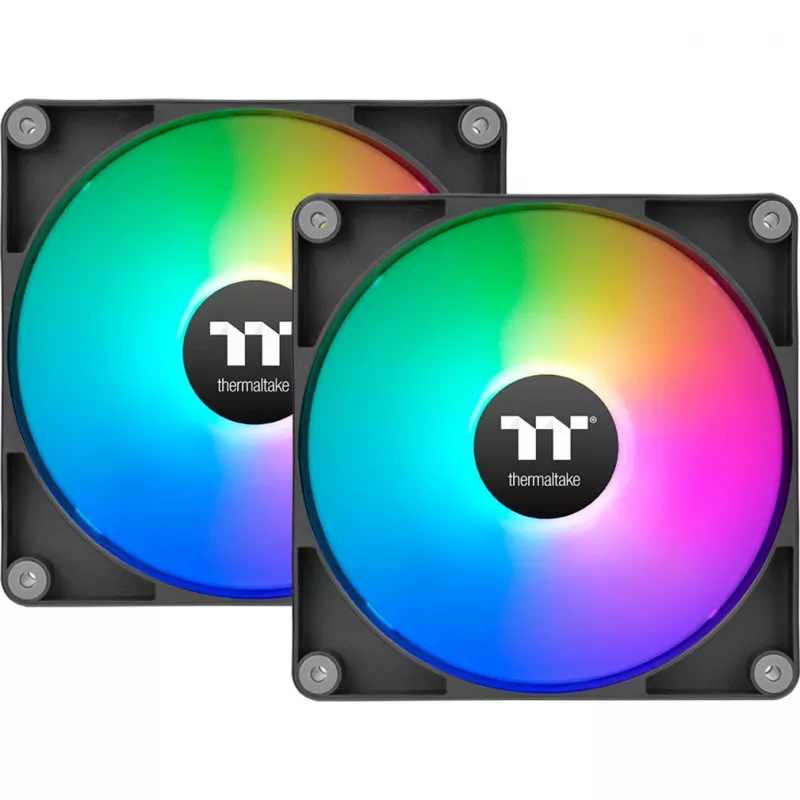

Thermaltake CT140 Reverse ARGB 14 cm Ventola Nero 500–1800 RPM 32,8 dB

The Thermaltake CT140 Reverse ARGB 14 cm fan combines reversed-blade airflow design with addressable RGB lighting to provide efficient case cooling and unified lighting aesthetics. With a 140 mm diameter, 500–1800 RPM speed range and hydraulic bearing, it delivers up to 94.95 CFM airflow and 2.54 mm-H2O static pressure while keeping noise to a rated 32.8 dB-A. The fan is available in a black frame and is designed for easy daisy-chain connection of PWM and ARGB cables, plus includes long cables to simplify installation.

Advantages

The reversed blade layout directs airflow from rear to front without obscuring RGB effects, preserving both cooling performance and lighting visibility. Nine addressable LEDs provide wide color coverage (16.8 million colors) and support synchronization with major motherboard RGB software (ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light, ASRock Polychrome). The frame and blade design prioritize structural rigidity and minimal air leakage, and rubber anti-vibration pads reduce vibration and noise. Integrated daisy-chain cabling reduces the number of motherboard headers required and shortens inter-fan cable runs.

Suitable for

• Mid-tower and full-tower computer cases requiring 140 mm fans
• Builds where unified ARGB lighting and synchronized effects are desired
• Setups needing balanced airflow and static pressure for case intake/exhaust or radiators

Key specifications

• Model: Thermaltake CT140 Reverse ARGB (CL-F174-PL14SW-A)
• Diameter: 140 mm
• Speed: 500–1800 RPM (PWM)
• Maximum airflow: 94.95 CFM
• Static pressure: 2.54 mm-H2O
• Noise level: 32.8 dB-A
• Bearing type: Hydraulic bearing
• LEDs: 9 addressable LEDs, 5V ARGB
• Color: Black
• EAN: 4711475641471

How to use

Mount the CT140 Reverse ARGB fan in a compatible 140 mm fan slot in your chassis or on a compatible radiator, using the supplied screws. Connect the 4-pin PWM cable to a PWM fan header on the motherboard to enable speed control, and connect the 3-pin 5V ARGB cable to a 5V addressable RGB header to control lighting through supported motherboard software. Use the included daisy-chain cables to link multiple CT Series fans, reducing the number of motherboard headers required. Ensure the ARGB connector clip is fitted to prevent accidental disconnection.

Recommendations

For best results, place the fan so that airflow direction matches your case cooling plan (intake or exhaust). When synchronizing lighting, ensure your motherboard provides a 5V addressable RGB header and use the latest version of the motherboard RGB utility for full compatibility.
