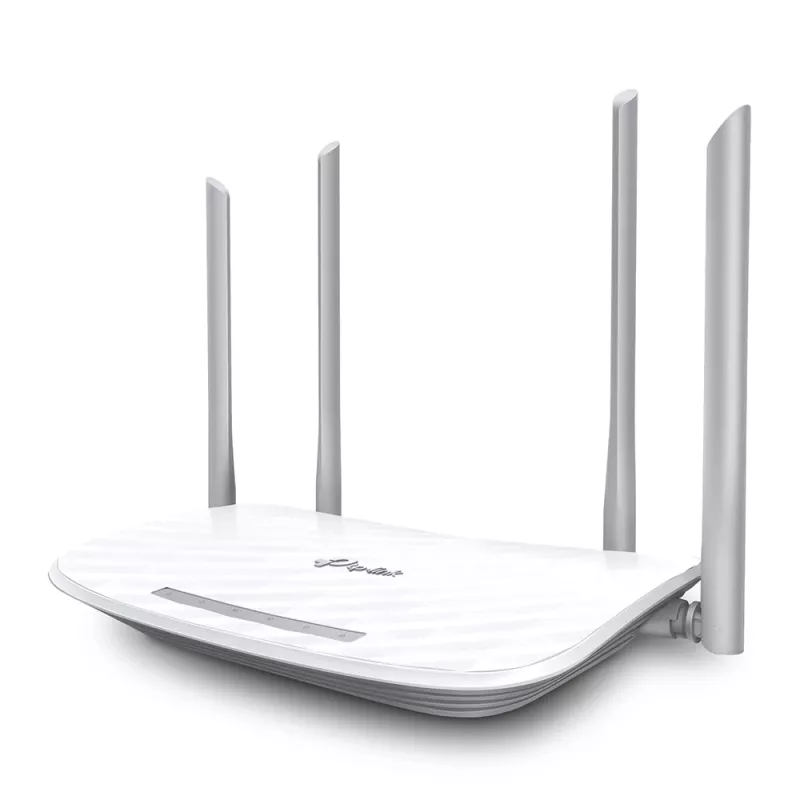

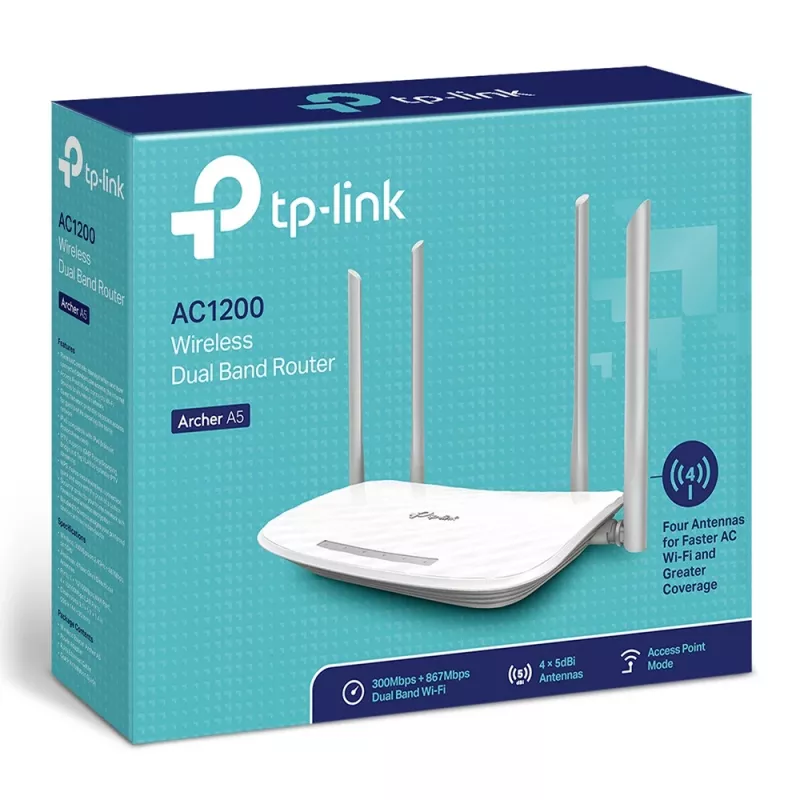

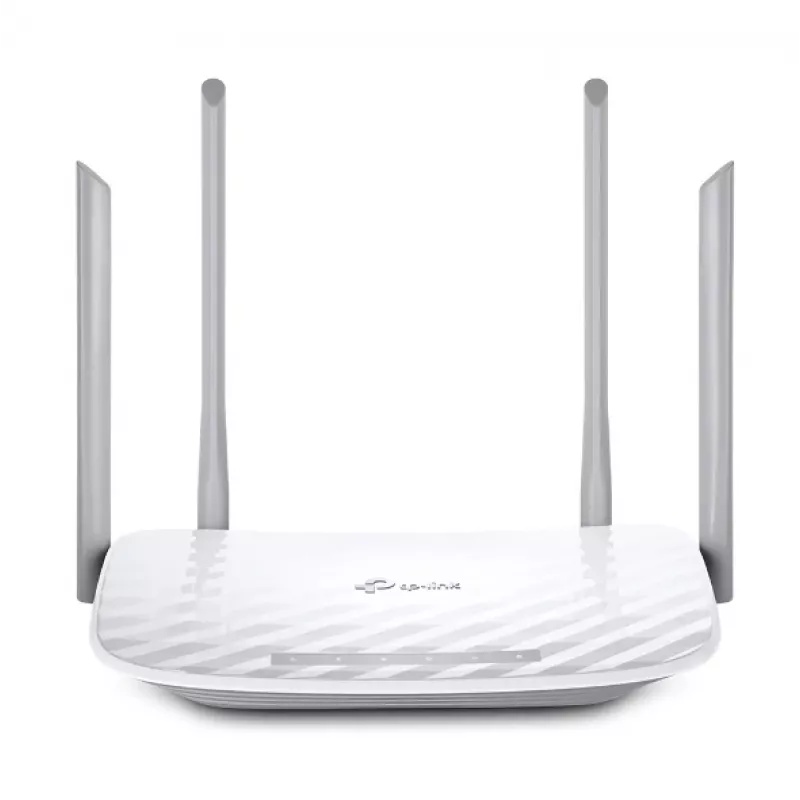

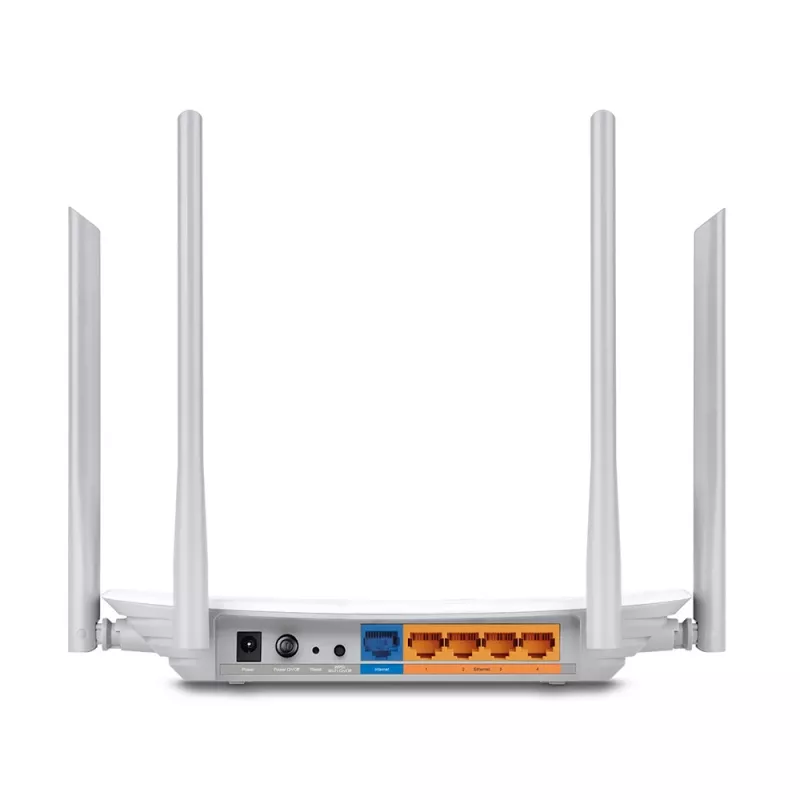

TP-Link router WLAN dual band AC1200

The Archer A5 dual-band Wi‑Fi router delivers faster wireless connections using IEEE 802.11ac (Wireless AC) technology. It provides up to 300 Mbps on the 2.4 GHz band and up to 867 Mbps on the 5 GHz band, making it suitable for HD streaming, online gaming and other bandwidth-intensive tasks. The router includes four external antennas for improved signal sensitivity and broader coverage, and offers features for guest access, parental controls and simple setup via a web interface or the Tether mobile app.

Advantages

The Archer A5 combines dual-band speed with improved coverage via an optimized four-antenna design, enabling more stable connections across the home. Built-in parental controls and blacklist filtering allow administrators to restrict access by keywords. A dedicated guest network and Facebook-based captive portal provide convenient and segregated access for visitors without exposing the main network. Setup and ongoing management are available through an intuitive web interface or the Tether app on Android and iOS devices.

Key specifications

• Wireless standard: IEEE 802.11ac (Wireless AC) and IEEE 802.11n/g/b
• Wireless speeds: up to 867 Mbps on 5 GHz, up to 300 Mbps on 2.4 GHz
• Frequency bands: dual-band (2.4 GHz and 5 GHz)
• Antennas: four external antennas for extended coverage
• Features: parental controls with keyword blacklist, guest network, Facebook captive portal authentication
• Management: web interface and Tether mobile app (Android/iOS)

How to use

Connect the Archer A5 to your modem and power it on. Use a web browser to access the router’s setup page or install the Tether app on an Android or iOS device and follow the on-screen instructions to complete setup. Configure SSIDs and passwords for the 2.4 GHz and 5 GHz bands, enable the guest network if needed, and set parental controls or blacklist keywords to restrict access. Use the Tether app or web interface to monitor and modify settings as required.

Recommendations

Place the router centrally and avoid large physical obstructions to maximize coverage. Use the 5 GHz band for latency-sensitive applications such as online gaming and HD streaming, and the 2.4 GHz band for wider-range connections. Keep router firmware and the Tether app updated to ensure security and access to the latest features.
