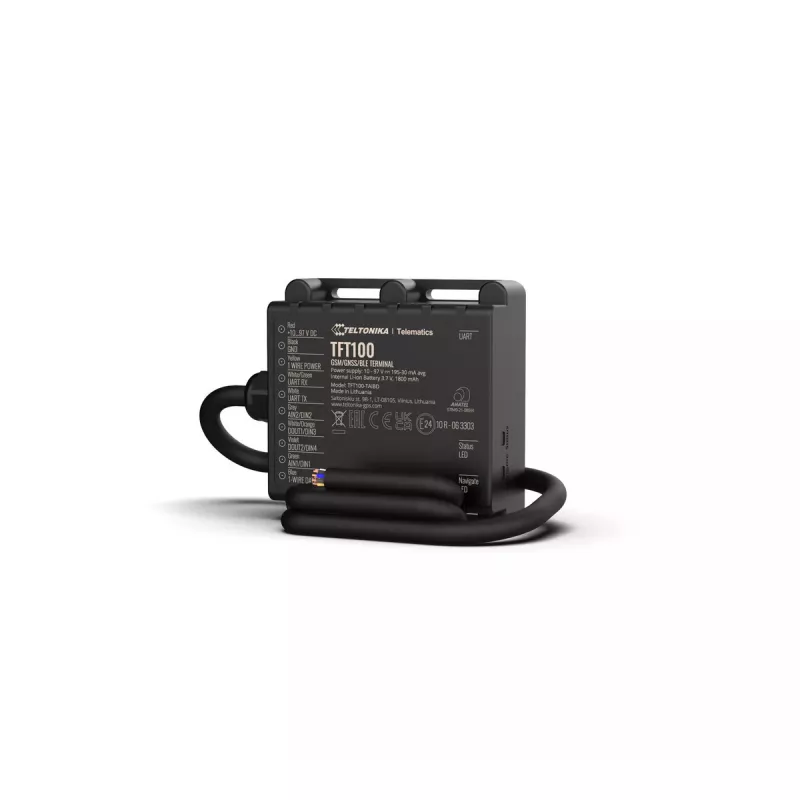

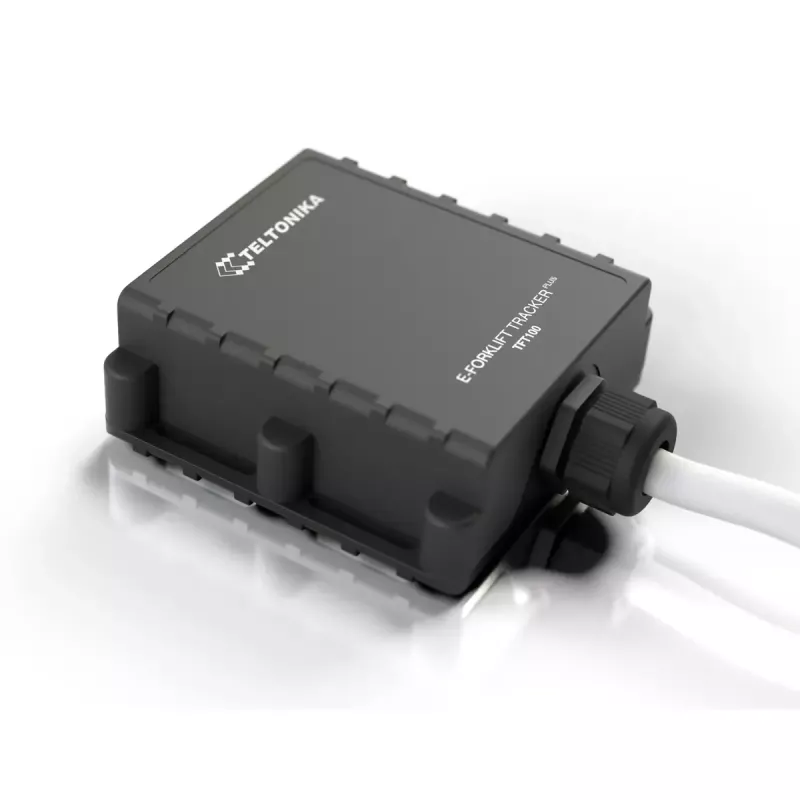

Tracker Teltonika TFT100 interfaccia CAN moto nero

Teltonika GPS Tracker TFT100 is a compact, professional-grade tracking device designed for vehicles such as forklifts, electric mopeds, electric scooters and motorcycles. The unit features an internal high-gain GNSS/GSM antenna, Bluetooth connectivity, a high-capacity integrated lithium-ion battery and a wide 9–96 V supply voltage range, making it suitable for various vehicle types and industrial use.

Advantages

The TFT100 provides reliable positioning and connectivity via its internal high-gain GNSS/GSM antenna and supports CAN interface data retrieval for integration with vehicle systems. Its built-in high-capacity battery ensures temporary operation without external power, while the robust design offers dust resistance and a compact form factor that simplifies installation on motorcycles and industrial vehicles. Bluetooth enables local configuration and accessory connections.

Suitable for

• Forklifts, telehandlers and scissor lifts in warehouses and industrial facilities
• Electric mopeds and scooters used in urban mobility fleets
• Motorcycles requiring compact CAN-enabled tracking solutions
• Fleet management systems that need remote monitoring and preventive maintenance data

Key specifications

• Brand: TELTONIKA
• Model: TFT100 (MPN: TFT100TSTAA0)
• Power supply: 9–96 V DC
• Internal high-gain GNSS/GSM antenna
• Connectivity: Bluetooth and GSM
• Interface: CAN (for vehicle data retrieval)
• Built-in high-capacity lithium-ion battery (up to approx. 12 hours standby/use depending on configuration)
• Memory: 0.128 GB
• Dust-resistant, compact design suitable for motorcycles and industrial vehicles

How to use

Install the TFT100 on the vehicle following the manufacturer’s mounting and wiring instructions, connecting it to the vehicle power supply within the 9–96 V range and, if required, to the CAN bus for detailed vehicle data. Use Bluetooth or compatible Teltonika configuration tools to set up reporting intervals, geofences and alerts. Once configured, the device reports GNSS position and CAN-derived parameters to the fleet management platform over GSM.

Recommendations

For reliable operation, mount the tracker where the internal antenna has minimal obstruction, secure all power and CAN connections, and configure power-saving and reporting settings to match your fleet’s usage patterns. Regularly check firmware updates and perform preventive inspections to ensure continuous performance.
