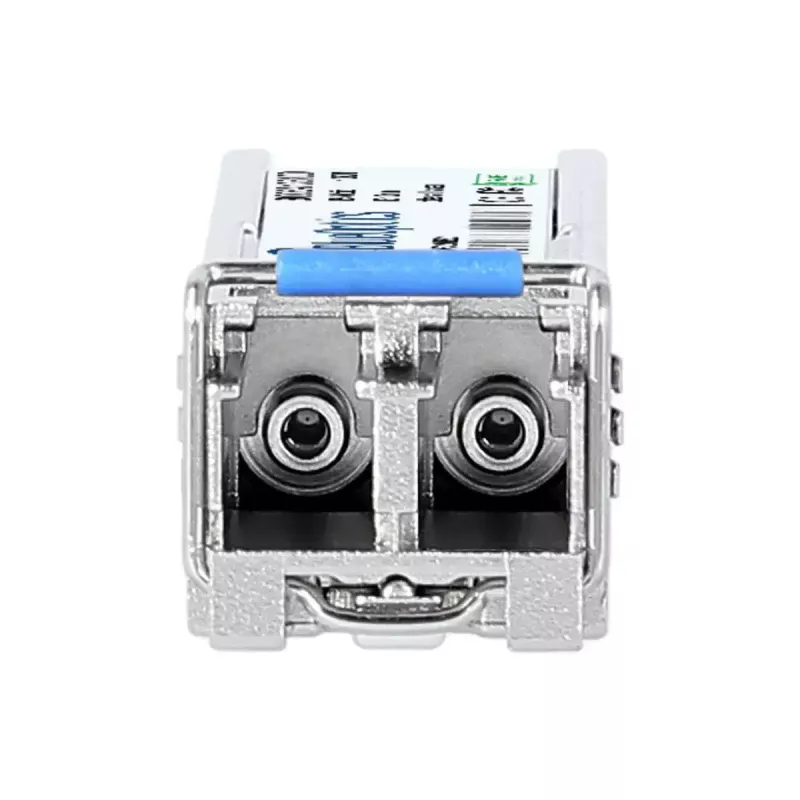

Transceiver SFP BlueOptics NTTP02CD-CI-BO 155 Mbit/s 1310 nm

The BlueOptics NTTP02CD-CI-BO SFP transceiver is a compact optical module for fiber optic networks. It supports a maximum data rate of 155 Mbit/s and operates at a wavelength of 1310 nm in an SFP form factor with LC Duplex connectivity. The module is designed for use in common hardware platforms such as switches, routers and storage systems and is compliant with CE, FCC and RoHS standards. With an MTBF of around 3,000,000 hours and a silver-coloured metal housing, it is intended to provide reliable optical link performance for short to medium-range single-mode fiber connections.

Advantages

The NTTP02CD-CI-BO offers an industry-standard SFP form factor and LC Duplex interface for straightforward integration into MSA-compliant devices. Operating at 1310 nm and supporting 155 Mbit/s, the module provides simultaneous transmit and receive optical channels in a single transceiver. Digital Diagnostics Monitoring (DDM/DOM) support enables real-time access to operating parameters such as supply voltage, laser bias current, transmit/receive power and temperature when the host system supports this feature. Manufactured with components from established suppliers and tested for interoperability, the transceiver is built to deliver long service life and stable optical performance.

Suitable for

Key specifications

How to use

Insert the NTTP02CD-CI-BO SFP transceiver into an empty SFP slot on the host device while the host is powered on or off, following the equipment manufacturer's hot-plug procedure. Connect LC Duplex single-mode patch cables to the module's LC ports, ensuring correct transmit/receive orientation. Verify link status on the host device and check available diagnostic data via the DDM/DOM interface if the host supports it. For compatibility, use the transceiver in platforms that accept MSA-compliant SFP modules and the applicable 100BASE-LX protocols.

Recommendations

Handle the transceiver by its housing, avoid touching the optical interfaces, and keep dust caps fitted when not in use. Use clean, matched single-mode LC patch cables and follow manufacturer guidance for insertion/removal to maintain optical performance. Confirm that your host device supports the required data rate and DDM/DOM functions if you need remote diagnostics.
